California Air Tools HIGH PRESSURE Rolling 1.5HP Ultra Quiet Oil-Free 20 Gal Air Compressor Model 20015
High-Pressure 20-Gallon Tank | 175 PSI | Automatic Tank Drain Valve Available
Models
20015 | 20015HP | 20015HPAD
Professional Ultra Quiet & Oil-Free 1.5 HP Air Compressor

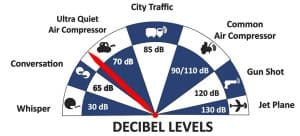

Elevate your workspace with the perfect blend of high-pressure performance and near-silent operation. The Ultra Quiet 1.5 HP 20-Gallon Air Compressor is engineered for the professional who needs the extra “kick” of a 175 PSI system but refuses to compromise on noise levels. Operating at only 70 decibels, this unit allows you to maintain a productive, conversational environment while powering through demanding tasks.
Equipped with a Factory-Installed Automatic Drain Valve, this compressor is a true “set-and-forget” solution, ensuring your tank remains free of moisture and your air stays clean without the need for manual daily maintenance.
High-Pressure Performance Features
- 175 PSI Maximum Pressure: Unlike standard 125 PSI compressors, this high-pressure unit provides 40% more air storage in the same 20-gallon tank. This translates to longer run times for tools and more power for high-pressure pneumatic equipment.
- Automatic Electronic Drain Valve: Protect your investment without lifting a finger. The integrated Auto Drain automatically purges condensation at timed intervals, preventing internal tank corrosion and ensuring water-free air for your tools.
- Whisper-Quiet 1.5 HP Motor: The specialized dual-piston pump is designed to minimize vibration and intake noise, delivering a smooth 70 dB output—significantly quieter than a standard shop vac.
- Oil-Free & Maintenance-Free: The high-performance pump requires zero oiling, making it perfect for indoor use and cold-weather starts. It also ensures that the air output is free of oil vapor, which is essential for painting and sensitive electronics.
- Industrial 20-Gallon Reserve: The vertical/horizontal steel tank (depending on configuration) provides a massive buffer of air, reducing the frequency of motor cycles and extending the overall life of the machine.
Technical Specifications
| Feature | Specification |
| Motor | 1.5 HP (Running/Rated) |
| Noise Level | 70 Decibels |
| Max Pressure | 175 PSI |
| Tank Capacity | 20.0 Gallon Steel Tank |
| Airflow (CFM) | 4.0 CFM @ 90 PSI / 5.0 CFM @ 40 PSI |
| Drain Type | Timed Electronic Automatic Valve |
| Pump Life | 3,000+ Operating Hours |
| Mobility | Heavy-Duty Wheels & Ergonomic Handle |
Ideal For:
- Professional Workshops: Perfect for running high-pressure impacts, grinders, and sanders that require a steady 175 PSI.
- Auto Service & Tires: The extra pressure is ideal for seating beads on tires and powering pneumatic lifts.
- Manufacturing & Assembly: Providing a quiet, high-capacity air source for pneumatic actuators and automated lines.
| Model | dB | Gal | Hp | CFM | Tank | Voltage | Weight | Drain Valve |
|---|---|---|---|---|---|---|---|---|
| 20015 | 70 | 20 | 1.5 | 2.9 | Steel | 110V | 89 | ____ |
| 20015HP | 70 | 20 | 1.5 | 3.8 | Steel | 110V | 113 | ____ |
| 20015HPAD | 70 | 20 | 1.5 | 3.8 | Steel | 110V | 114 | Auto Drain |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | |
| Compressor Horsepower | |
| Compressor Horsepower Range | |
| Tank Size | |
| Tank Size Range | |
| voltage | |
| Compressor CFM | |
| Compressor CFM Range | |
| Compressor PSI | |
| Brand |
