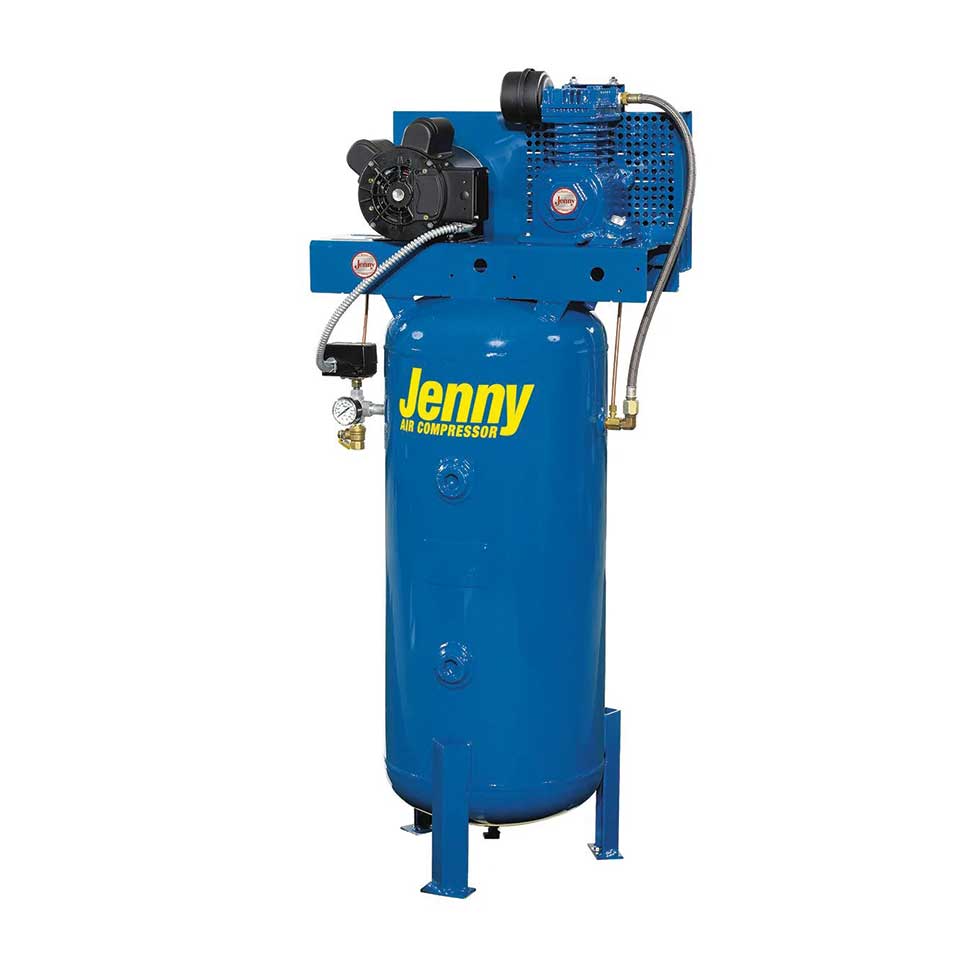

Jenny F34A-30 0.75HP 30GAL Compressor
Available as vertical or horizontal tank option
Standard Features
- Heavy-duty single or two stage cast iron compressor pump – Made in Somerset, PA USA
- Splash lubricated
- Belt driven with a large flywheel for extra cooling and easier start-up
- Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
- Directional air shroud for reduced pump temperatures
- Totally enclosed heavy-duty belt guard
- Tanks are powder coated and ASME certified
- 60 gallon tanks and larger are ASME National Board certified
- Protectively mounted fittings
- Manual tank drain(s)
- Large canister intake filter with replaceable filter elements
- Special unloading valves to assist in motor starting
- Tank gauge
- Pressure relief safety valve
- Auto Start/Stop control with pressure unloader set at 105-125 PSI (single stage) or 145-175 PSI (two stage)
- Magnetic starter is included on all 5HPand larger units
- Industrial/Commercial grade UL Listed electric motor
- Thermal overload motor protection
- Alternator and magnetic starter are standard on all duplex models
| Model | Pump | HP | Tank Gallon | Power Supply | Pump RPM | 125 PSI CFM Disp |
Del’d Air |
| F12A-17 |
F
|
1/2 |
17
|
115 Volt
(through 2 HP) or 230 Volt 1 Phase 208, 230, |
680 | 3.4 | 2.2 |
| F34A-17 |
3/4
|
1080
|
5.3
|
3.1
|
|||
| F34A-30 |
30
|
||||||
| K1A-30 |
K
|
1 | 560 | 6.2 | 4 | ||
| K15A-30 |
1-1/2
|
870
|
9.8
|
6.2
|
|||
| K15A-60 | 60 | ||||||
| K2A-30 |
2
|
30 |
1140
|
13.1
|
8
|
||
| K2A-60 | 60 | ||||||
| GC2A-30 |
GC
|
30 |
480
|
13.1
|
9.1
|
||
| GC2A-60 | 60 | ||||||
| GC3A-30 |
3
|
30 |
770
|
21
|
14
|
||
| GC3A-60 | 60 | ||||||
| GC5A-60 |
5
|
60 |
1020
|
27.8
|
17.8
|
||
| GC5A-80 | 80 | ||||||
| J5A-60 |
J
|
60 |
780
|
28.7
|
19
|
||
| J5A-80 | 80 |
| Single Stage | ||||||||||||||||
| *MODEL | HP RANGE Electric |
NO CYC. | BORE | STROKE | MAX. PSI | APPX SHIP WT. |
A | B | C | D | E | F Diam Groove |
G | H | I | P NPT |
| F & FU | 1/3 – 1 | 1 | 2 1/2 | 1 3/4 | 150 | 36 | 7 3/4 | 5 9/16 | 3 3/8 | 10 3/8 | 10 1/4 | 10 3/8-1A | 3/8 | 9/32 | 7/8 | N/A |
| K & KU | 1 – 2 | 2 | 2 1/2 | 2 | 150 | 50 | 10 | 5 7/8 | 5 3/4 | 11 1/8 | 12 3/16 | 10 3/8-1A | 3/8 | 11/32 | 7/8 | 1/2 |
| G & GU | 3-5 | 4 | 2 1/2 | 2 3/8 | 150 | 85 | 11 1/2 | 7 1/8 | 6 1/8 | 15 1/4 | 14 1/2 | 10 3/8-2A | 1/2 | 11/32 | 7/8 | 1/2 |
| J & JU | 3-5 | 4 | 2 1/2 | 3 1/4 | 150 | 175 | 16 5/16 | 9 1/8 | 6 3/4 | 20 | 16 1/2 | 16-2A | 1/2 | 11/32 | 1 1/8 | 1/2 |
| Two Stage | ||||||||||||||||
| GT & GTU | 1 1/2-5 | 4 | 21/2 (3)-21/2 | 2 3/8 | 200 | 110 | 14 3/8 | 7 1/8 | 6 1/8 | 15 1/2 | 14 1/2 | 13 1/2-2A | 1/2 | 11/32 | 7/8 | 1/2 |
| W & WU | 3-5 | 4 | 21/2 (3)-21/2 | 3 1/4 | 200 | 175 | 16 5/16 | 9 1/8 | 6 3/4 | 20 | 16 1/2 | 16-2A | 1/2 | 11/32 | 1 1/8 | 1/2 |
| U | 7 1/2 10 | 4 | 4 3/4 X 2 1/2 | 3 | 200 | 340 | 21 1/16 | 10 5/8 | 6 1/4 | 23 | 20 3/8 | 18-3B | 1 | 17/32 | 1 3/8 | 1 |
| T | 15-25 | 4 | 5 1/2 X 3 | 5 | 200 | 750 | 31 | 16 | 10 | 42 | 34 | 25 1/2-4B | 1 | 25/32 | 2 3/16 | 1 1/2 |
| NOTE – Units of measure-weight-pounds; dimensions-inches; pressure-pounds per square inch. When replacing pumps, consult factory regarding applicable conversion kit that may be required. |
||||||||||||||||
| Weight | 235 lbs |
|---|---|
| Dimensions | 24 × 43 × 45 in |
| Model | |
| Compressor Horsepower | |
| Compressor Horsepower Range | |
| Tank Size | |
| Tank Size Range | |
| voltage | |
| Compressor CFM | |
| Compressor CFM Range | |
| Compressor PSI | |
| Brand |
