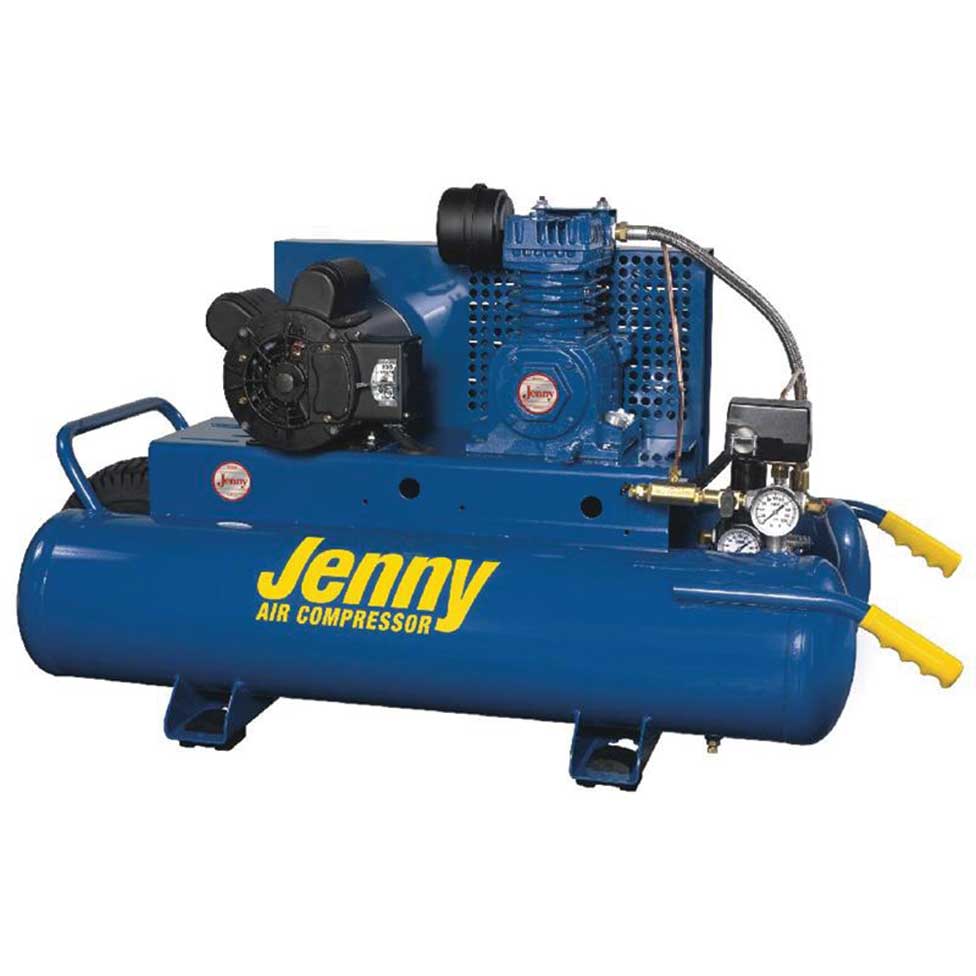

Jenny K15A-15P 1.5HP 15GAL Compressor - Image 2

Jenny K15A-15P 1.5HP 15GAL Compressor

Name: Jenny K15A-15P 1.5HP 15GAL Compressor - The Air Compressor Store
SKU: K15A-15P
Price: 1854.00 USD
Availability: InStock

$1,854.00

SKU: K15A-15P Categories: Compressor Type, Compressors, Reciprocating

Jenny K15A-15P 1.5HP 15GAL Compressor

Standard Features

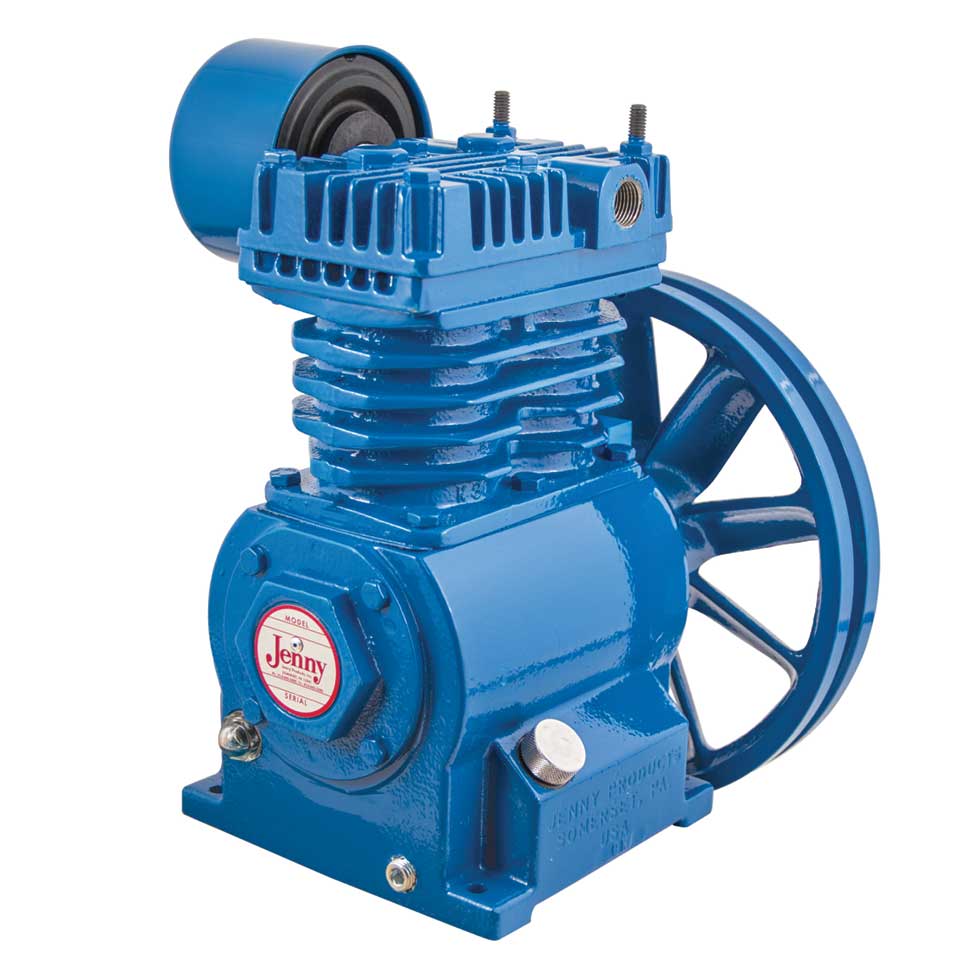

Heavy-duty single stage cast iron compressor pump Made in Somerset, PA USA
Splash lubricated
Belt driven with a large flywheel for extra cooling and easier start-up
Each unit is filled with Jenny Ultimate Blue Compressor Pump Oil
Directional air shroud for reduced pump temperatures
Totally enclosed heavy-duty belt guard
8 & 15 gallon tanks are low profile, powder coated twin tank receivers
17 and 30 gallon tanks are powder coated and ASME certified
Oil sight glass
Convenient lifting handles
Anti-vibration feet
Pneumatic tire(s)
Protectively mounted fittings
Manual tank drain(s)
Large canister intake filter with replaceable filter elements
Special unloading valves to assist in motor starting
Stainless steel braided discharge hose
Tank gauge
Regulator and outlet pressure gauge
Pressure relief safety valve
Designed, tested and proven to meet the demands of the construction and rental industry

Electric Motor

Constant run control set at 105-125 PSI
High quality pilot valve
Industrial/Commercial grade UL Listed electric motor
Thermal overload motor protection
6 ft power cord

Options

Start-Stop control n Dual control
Dual voltage switch n On-Off switch
Two wheel option (8 & 15 gallon models)
Discharge Unloader n Air line filter n Lubricator
Other pressures available upon request

Single Stage

*MODEL

HP
RANGE
Electric

NO CYC.

BORE

STROKE

MAX. PSI

APPX
SHIP
WT.

F
Diam
Groove

P
NPT

F & FU

1/3 – 1

2 1/2

1 3/4

150

7 3/4

5 9/16

3 3/8

10 3/8

10 1/4

10 3/8-1A

3/8

9/32

7/8

N/A

K & KU

1 – 2

2 1/2

150

5 7/8

5 3/4

11 1/8

12 3/16

10 3/8-1A

3/8

11/32

7/8

1/2

G & GU

3-5

2 1/2

2 3/8

150

11 1/2

7 1/8

6 1/8

15 1/4

14 1/2

10 3/8-2A

1/2

11/32

7/8

1/2

J & JU

3-5

2 1/2

3 1/4

150

175

16 5/16

9 1/8

6 3/4

16 1/2

16-2A

1/2

11/32

1 1/8

1/2

Two Stage

GT & GTU

1 1/2-5

21/2 (3)-21/2

2 3/8

200

110

14 3/8

7 1/8

6 1/8

15 1/2

14 1/2

13 1/2-2A

1/2

11/32

7/8

1/2

W & WU

3-5

21/2 (3)-21/2

3 1/4

200

175

16 5/16

9 1/8

6 3/4

16 1/2

16-2A

1/2

11/32

1 1/8

1/2

7 1/2 10

4 3/4 X 2 1/2

200

340

21 1/16

10 5/8

6 1/4

20 3/8

18-3B

17/32

1 3/8

15-25

5 1/2 X 3

200

750

25 1/2-4B

25/32

2 3/16

1 1/2

NOTE – Units of measure-weight-pounds; dimensions-inches; pressure-pounds per square inch.
When replacing pumps, consult factory regarding applicable conversion kit that may be required.

Weight	260 lbs
Dimensions	27 × 51 × 52 in
Model	K15A-15P
Compressor Horsepower	1.5
Compressor Horsepower Range	1 – 4.5 HP
Tank Size	15
Tank Size Range	10-50 Gallon
voltage	115/1, 230/1
Compressor CFM	6.5
Compressor CFM Range	Up to 14.9
Compressor PSI	125
Brand	Jenny Compressors
