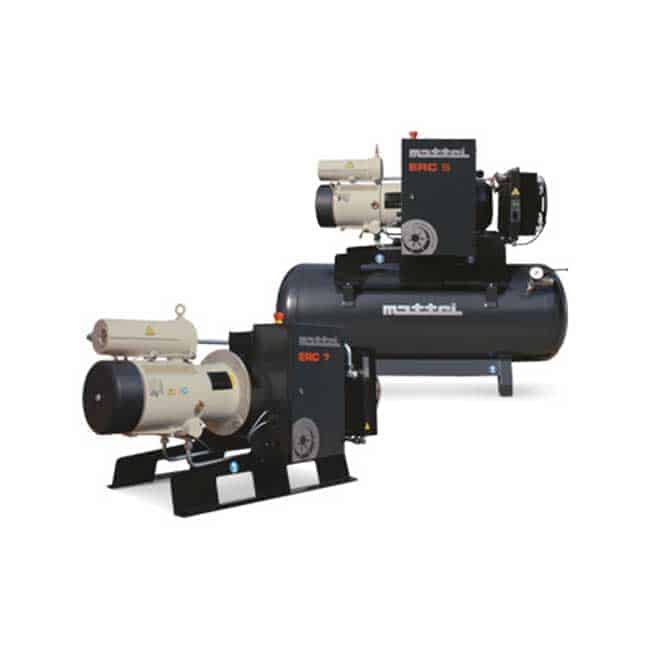

Mattei ERC 511-TM 120 15HP Vane Compressor

ERC SERIES STANDARD FEATURES:

STANDARD EFFICIENCY MOTOR

ERC models are equipped with open-drip proof (ODP) electric motors as standard. TEFC is optional.

MOTOR STARTER

Full voltage motor starter (to 40 HP), wye delta starter (50 HP 100 HP).

AIR TREATMENT

Air cooled aftercooler with 18 F approach temperature, moisture separator with automatic drain valve.

MAINTENANCE

Maintenance operations only include changing the oil at predetermined intervals, cleaning or replacing the air filter and cleaning the radiator. Benefit from half the oil volume of rotary screw types, and oil separating filters that can reach 10,000 working hours, for significant savings over the life of the machine.

RELIABILITY

These compressors are designed for industrial use 24 hours a day and 12 months a year at constant pressure. Mattei compressors’ running often exceeds 100,000 working hours, as evidenced by our Revolutionary 10 Year Warranty.

INHERENTLY QUIET

ERC Series compressors are open-frame machines that operate at a constant 1,800 rpm and deliver sound levels as low as 64 dB (A) WITHOUT a sound enclosure try that with a rotary screw compressor.

BEARINGLESS AIRENDS

Much like the connecting rods on your engines crankshaft, the heart of the Mattei rotor stator unit (RSU) is the rotor which is simply supported by two (2) white metal Babbitt bushings that routinely deliver >100,000 hours of life. Screw type compressors use up to six (6) radial and thrust bearings engineered for only 50,000 hours (ASME B-10) of life.

CAPACITY CONTROLS ADAPT TO YOUR DEMANDS

The layout and design of every air system is different. Thus, Mattei provides a variety of control schemes as standard to better adapt to the demands and dynamics of your system, to save energy and prevent short-cycling and ambient oil misting problems created by inflexible control schemes and underutilized compressors.

MODULATION OPERATING MODE AT CONSTANT PRESSURE

Thanks to a modulating proportional intake valve that supplies air at constant pressure, these compressors can even work without air receivers. This method automatically adapts to system demands and is ideal for applications with little storage or continuous high air demands.

AUTOMATIC ON LOAD / OFF LOAD

On/Off Load maintains line pressure within a minimum/maximum pressure range, and the compressor may stop and restart according to air demand. Ideal for applications with adequate air storage tanks or large variations in air demand.

COMBINED ON/OFF LOAD AND MODULATION REGULATION

This regulation allows Mattei compressors to modulate within a set pressure range (for example, /-4-5 psi). Should the air demand decrease, the compressor will off-load and stop, with evident energy savings. Ideal for applications with little storage and large variations in demand.
