ACS-46305-80VM

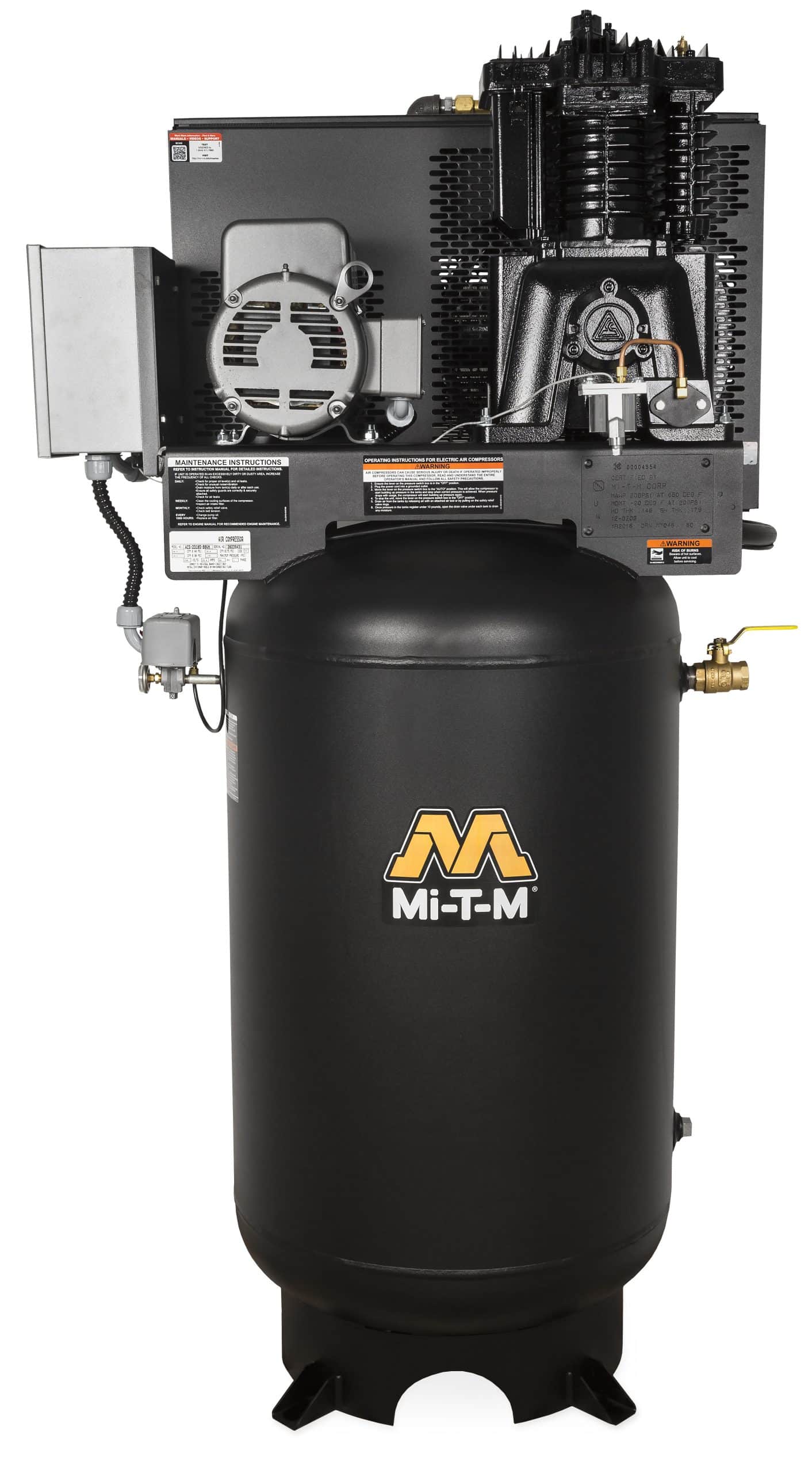

ACS M Series – 5.0 HP Simplex Vertical
The M Series air compressors are a great solution for the most demanding industrial applications. Available in many motor configurations and with either vertical or horizontal tank options.
Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless steel braided discharge hose · Large canister intake filter · Oil lever sight indicator
Motor: Industrial low RPM motor · Magnetic start for thermal overload protection
Frame: Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard
Components: ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve
Specifications
CFM @ PSI
– 18.0 @ 175
Horsepower/Motor
– 5.0 HP, 230V, 1Ø, 23.0A
Pump RPM
– 860
Tank Size
– 80-gallon
Bolt Down (LxW)
– 15.63 x 15.63 in.
Weights & Dimensions
Net Weight
– 544.00 lbs.
Shipping Weight
– 615.00 lbs.
Length
– 33.00 in.
Width
– 25.00 in.
Height
– 73.00 in.
| Weight | 615 lbs |
|---|---|
| Compressor CFM Range | |
| Compressor PSI | |
| voltage | |
| Compressor Horsepower | |
| Compressor Horsepower Range | |
| Tank Size | |
| Tank Size Range | |
| Brand | |
| Model | |
| Compressor CFM |
