Mi-T-M 7.5HP 80GAL STATIONARY ELECTRIC ACS-23175-80H

Name: Mi-T-M 7.5HP 80GAL STATIONARY ELECTRIC ACS-23175-80H - The Air Compressor Store
SKU: ACS-23175-80H
Price: 5960.35 USD
Availability: InStock

Original price was: $7,946.00.Current price is: $5,960.35.

SKU: ACS-23175-80H Categories: Compressors, Reciprocating

ACS-23175-80H

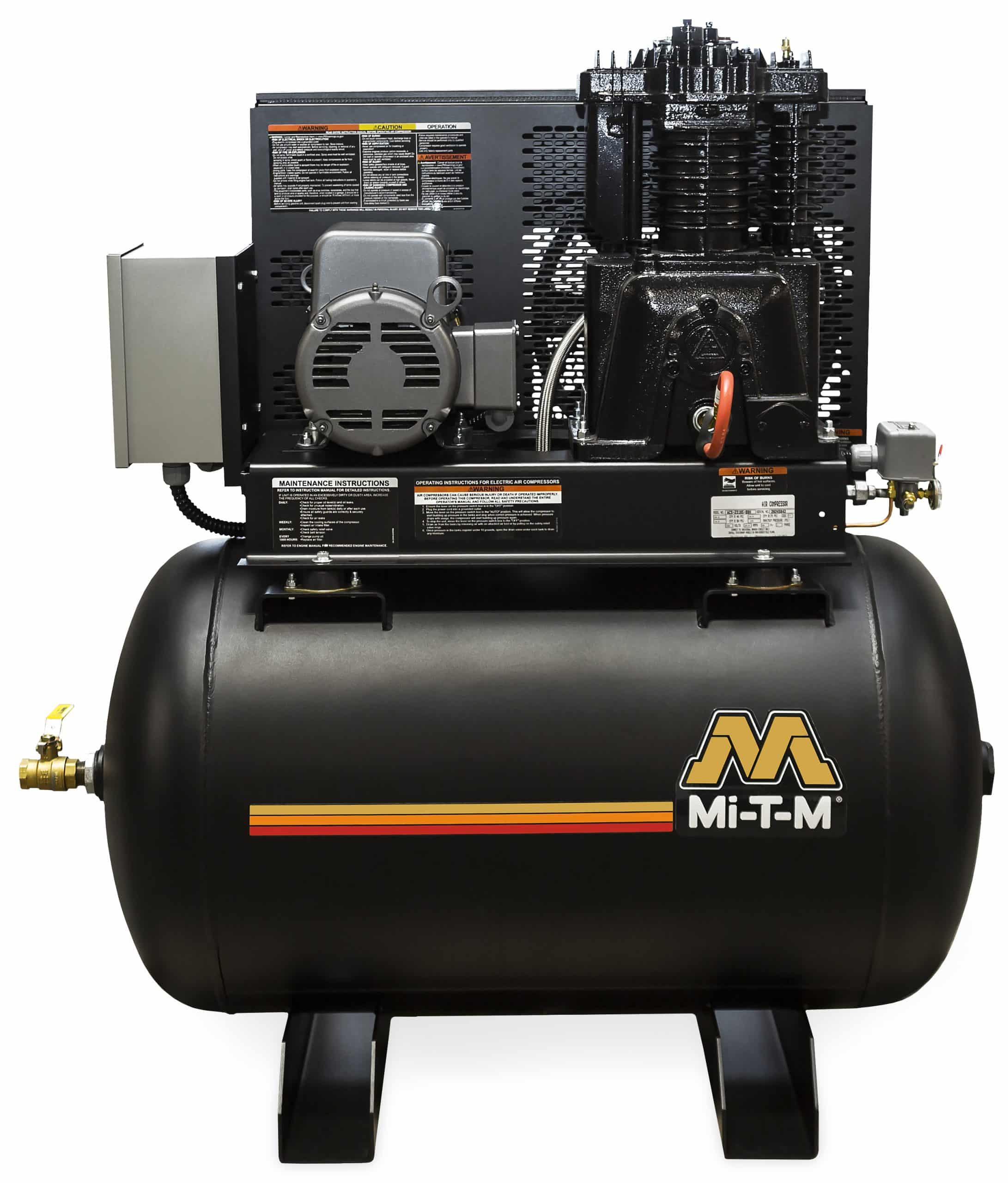

ACS Series – 7.5 HP Simplex Horizontal

The horizontal 80-gallon air compressors can be installed out of the way in workshops and service bays where compressed air is a required utility.

Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor: Industrial low RPM motor · Magnetic start for thermal overload protection

Frame: Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard

Components: ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Tank shut-off valve · Intake filter/silencer

Specifications

CFM @ PSI – 23.5 @ 175
Horsepower/Motor – 7.5 HP, 230V, 1Ø, 31.0A
Pump RPM – 1250
Tank Size – 80-gallon
Bolt Down (LxW) – 20.75 x 23.5 in.

Weights & Dimensions

Net Weight – 594.00 lbs.
Shipping Weight – 665.00 lbs.
Length – 52.00 in.
Width – 26.50 in.
Height – 53.00 in.

Weight	665 lbs
Compressor CFM Range	15 – 24.9
Compressor PSI	175
voltage	230/1/60
Compressor Horsepower	7.5
Compressor Horsepower Range	5 – 9.5 HP
Tank Size	80
Tank Size Range	60-80 Gallon
Brand	Mi-T-M Corporation
Model	ACS-23175-80H
Compressor CFM	23.5
