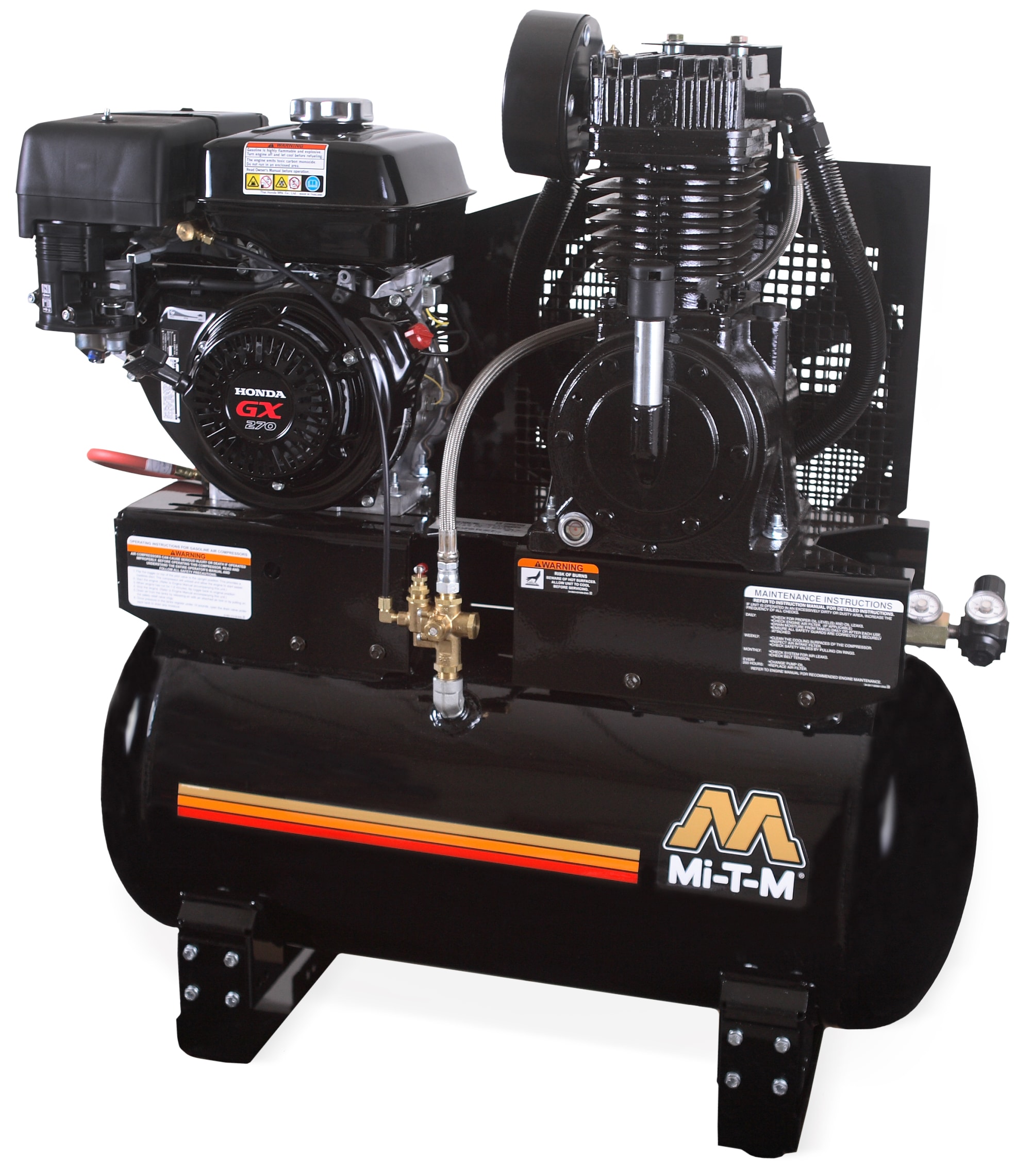

Mi-T-M 9HP 30GAL STATIONARY GAS DRIVE AM2-SH09-30M

Name: Mi-T-M 9HP 30GAL STATIONARY GAS DRIVE AM2-SH09-30M
Brand: Mi-T-M Corporation
SKU: AM2-SH09-30M
Price: 3963.00 USD
Availability: InStock

SKU: AM2-SH09-30M Categories: Compressors, Gasoline, Portable, Reciprocating

AM2-SH09-30M

Featuring a large capacity ASME tank, these air compressors are designed to perform. Mount one in a service truck and take it to the most demanding jobsite.
Compressor Pump: Cast iron compressor · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Frame: Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard
Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16-1/2-inch fly wheel · Quality pilot valve unloader
Equipped with 150-PSI maximum rated regulator.
49 state engine. Not for sale in California.

Specifications

CFM @ PSI
– 17.2 @ 175
Displacement/ Engine
– 270cc Honda GX270 OHV
Tank Size
– 30-gallon
Engine Idle Control
– Pneumatic

Weights & Dimensions

Net Weight
– 376.00 lbs.
Shipping Weight
– 446.00 lbs.
Length
– 40.50 in.
Width
– 17.50 in.
Height
– 44.50 in.

Options

AX-0003 Manual Drain/Regulator/Metal Bowl
– Drains moisture from air system

<div role="tabpanel"

Weight	446 lbs
compressor-cfm-range	15 – 24.9
compressor-psi	175
voltage	270cc Honda GX270 OHV+
compressor-horsepower	9
compressor-hp-range	5 – 9.5 HP
tank-size-compressor	30
tank-size-range	10-50 Gallon
Brand	Mi-T-M Corporation
Model	AM2-SH09-30M
compressor-cfm	17.2
