Mi-T-M Compressor/Generator AG2-SK14-30ME 4000W 14HP

Name: Mi-T-M Compressor/Generator AG2-SK14-30ME 4000W 14HP - The Air Compressor Store
SKU: AG2-SK14-30ME
Price: 4966.62 USD
Availability: InStock

Original price was: $6,621.00.Current price is: $4,966.62.

SKU: AG2-SK14-30ME Category: Compressor Generator

AG2-SK14-30ME

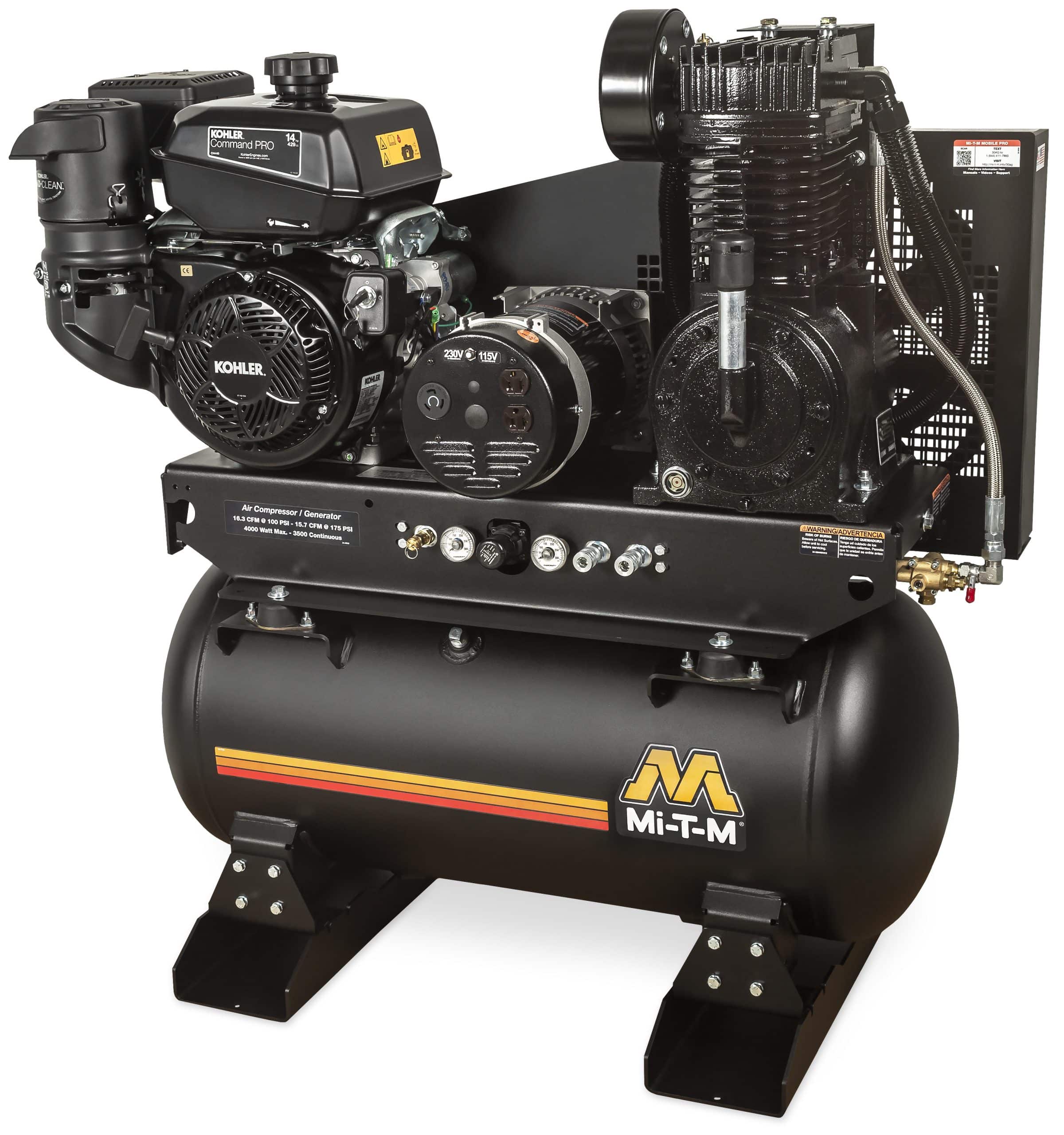

The versatile air compressor and generator combination comes with an abundance of storage capacity and features a powerful two stage compressor and 4000-watt generator.

Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A and (1) NEMA L6-20R 240V, 20A receptacles

Frame: Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 ½-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.
Equipped with electric start – battery, box and cables not included.

Specifications

CFM @ PSI

16.4 @ 90
CFM @ PSI

15.7 @ 175
Alternator Wattage: Max. Output

4000 watts
Alternator Wattage: Cont. with Comp. On-Load

2300 watts
Alternator Wattage: Cont. with Comp. Off-Load

3500 watts
Displacement/ Engine

429cc Kohler CH440 OHV

Weights & Dimensions

Net Weight

450.00 lbs.
Shipping Weight

550.00 lbs.
Length

40.00 in.
Width

24.50 in.
Height

45.00 in.

Weight	450 lbs
Compressor CFM	15.7
Compressor CFM Range	15 – 24.9
Compressor PSI	175
voltage	Engine: 429cc Kohler CH440 OHV, Output: 4000 watts
Compressor Horsepower	14
Compressor Horsepower Range	10 – 20 HP
Tank Size	30
Tank Size Range	10-50 Gallon
Brand	Mi-T-M Corporation
Model	AG2-SK14-30ME
