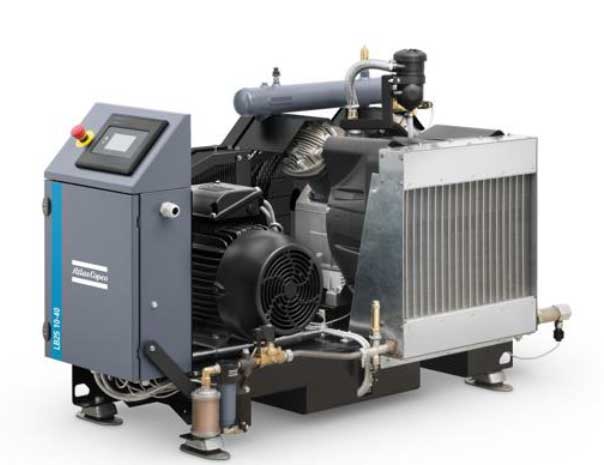

Atlas Copco LTB Medium Pressure Booters
The LTB 25/40 gives you the benefits of producing medium-pressure air with a booster and adds Atlas Copco reliability, efficiency, and ease of use. It is designed for consistent operation, ensuring minimal downtime, maximum productivity and low operational costs. Its user-friendly interface makes the LTB 25/40 straightforward to operate, while its advanced connectivity allows for remote monitoring, data analysis, and enhanced control. All of which make the LTB 25/40 the ideal solution for medium-pressure air and nitrogen applications such as PET bottle production, laser cutting, and pressure testing
| Inlet pressure | Outlet pressure | Maximum FAD @ 50 & 60 HZ | Motor power | Motor speed | Dimensions (L x W x H) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | bar | psig | bar | psig | l/s | cfm | m³/hr | kW | hp | rpm | Standard | Full Feature |
| LTB 10-25 | 2-5 | 29-72.5 | 10-25 | 145-362.5 | 28.5 | 60 | 102 | 7.5 | 10 | 829 | 63x32x43 | 66x32x43 |
| LTB 15-25 | 35.3 | 75 | 127 | 11 | 15 | 603 | ||||||
| LTB 20-25 | 49.8 | 105 | 179 | 15 | 20 | 888 | 68x32x43 | |||||
| LTB 25-25 | 64.2 | 136 | 231 | 18.5 | 25 | 842 | N/A | |||||
| LTB 10-40 | 6-10 | 87-145 | 25-40 | 290-580 | 34.7 | 73 | 125 | 7.5 | 10 | 1184 | 63x32x43 | 66x32x43 |
| LTB 15-40 | 48.5 | 103 | 174 | 11 | 15 | 802 | ||||||
| LTB 20-40 | 63.8 | 135 | 229 | 15 | 20 | 1205 | 68x32x43 | |||||
| LTB 25-40 | 77.5 | 164 | 278 | 18.5 | 25 | 1003 | N/A | |||||
| LTB 30-40 | 94.2 | 199 | 338 | 22 | 30 | 1173 | 70x33x43 | |||||
| LTB 40-40 | 124.8 | 264 | 448 | 30 | 40 | 1564 | ||||||
Optimal performance & efficiency
- Same machine can be used for air and nitrogen.
- 100% duty cycle allows for continuous operation.
- IE3 motor and premium design reduce operational costs.
- 5-10-bar, wide inlet increases compatibility with upstream devices and applications.
Ease of use
- Touchscreen controller offers intuitive operation and engaging user experience.
- SMARTLINK app with remote monitoring of operational parameters and detailed performance reports.
- Auto start and stop ensures user convenience.
- Optional central control synchronizes multi-booster set-up and balances workload, running hours, maintenance intervals.
High reliability
- Forced lubrication ensures all moving parts receive adequate lubricant, even in extreme conditions.
- Continuous temperature and pressure monitoring.
- Integrated filter optimizes and secures performance.
- Inlet and outlet collector absorb network pulsations to reduce component wear and tear.
Advanced medium-pressure booster technology
- In-house developed, premium design
- Can be used for medium-pressure air and nitrogen
- Forced lubrication
- PT1000 temperature monitor
- Less oil consumption
- Low vibrations
- Motor
- Star delta starting
- IE3 premium efficiency motor
- 100% duty cycle
- Motor ledge
- Maximum 20 start & stop operations per hour
- Elektronikon® Touch controller
- Intuitive touchscreen
- 30 different languages
- Warning and maintenance schedule indications
- Auto start and stop
- SMARTLINK remote monitoring and operation reports
- Optional central compressor control
- IP55 protection
- Collector
- Inlet and outlet collector
- Eliminates pulsations
- Oil breathing
- Reduces oil consumption
- Lowers oil emissions from crank case breathing
- Optional A+20 aftercooler
- Integrated inlet filter
- Oil level switch
- Single way outlet valve
| Weight | 452 lbs |
|---|---|
| Dimensions | 63 × 28 × 31 in |
| Brand | |
| Compressor CFM Range | |
| Compressor Horsepower | |
| Compressor Horsepower Range | |
| Compressor PSI | |
| Model | LTB 10-25, LTB 15-25, LTB 20-25, LTB 25-25, LTB 10-40, LTB 15-40, LTB 20-40, LTB 25-40, LTB 30-40, LTB 40-40 |
| Tank Size | |
| Tank Size Range | |
| voltage | |

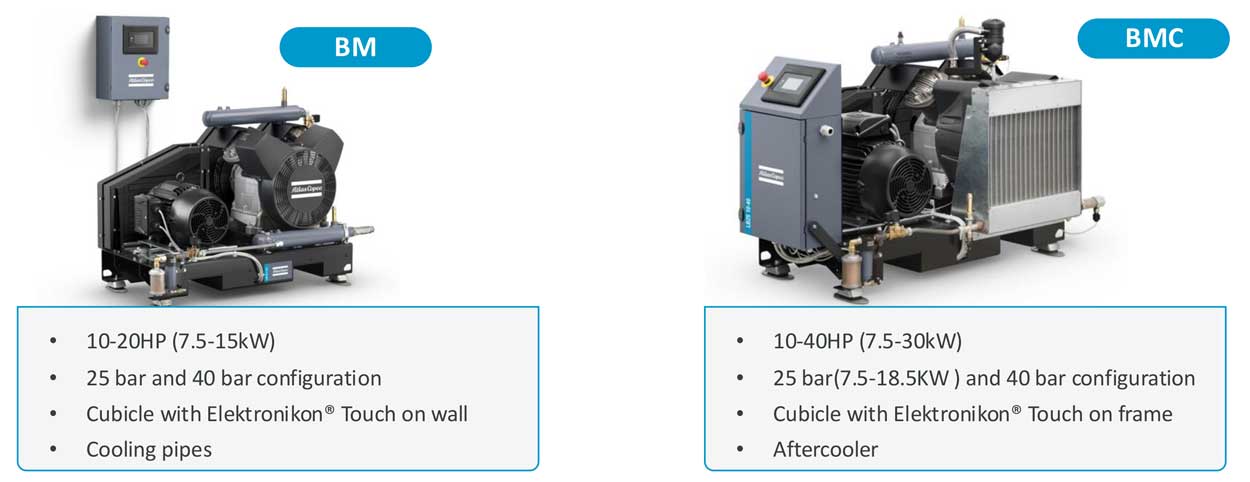

| Option | Standard Model, Full Feature Model |
