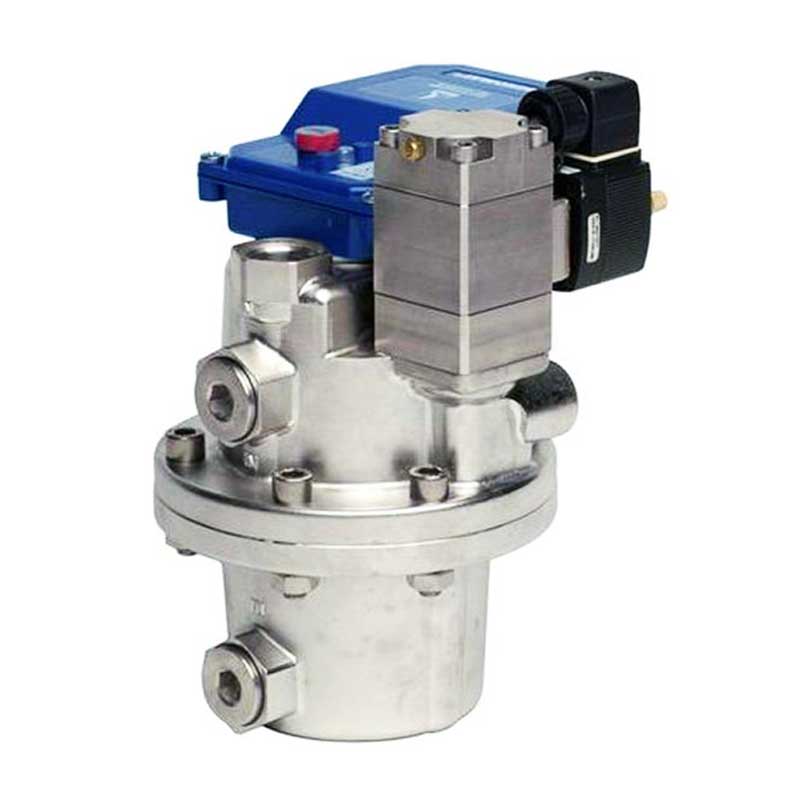

BEKOMAT® | Zero Air Loss Condensate Drains
damage, and even bodily injury to employees. Drainage points are also one of the system areas where energy waste is highest
BEKOMAT® Features and BenefitsTrue Zero Air Loss – Patented operating principle guarantees maximum energy savings
Highest Reliability – Integrated sieve eliminates any concern about dirt, the need for a Y-strainer, and extra maintenance
Lowest Maintenance – Reduce overall time and costs and make maintenance fast and easy
Sensor Controlled – Ensures intelligent operation at all times with the ability to automatically clear clogs and debris
Integrated Alarm – Visual status indication is given on the drain and can be wired for remote access
Fully Automatic – Continuously monitors both level and function for autonomous operation
How it Works
The condensate trickles through the inlet opening (1) and collects in the container (2). Initially, the valve is closed as, via the pilot supply line (3) and the solenoid valve (4), pressure differential above the membrane (5) is effected. The larger surface area above the membrane results in a high closing force. The membrane seat remains closed and leak-proof. When the container is filled with condensate, so that the capacitive level sensor (6) gets a signal at the maximum point , the solenoid valve switches over and the area above the membrane is vented. As a result of the decreasing pressure above the membrane, the membrane lifts off the membrane seat (7) and the overpressure in the housing forces the condensate into the discharge pipe (8).
| Brand | |
|---|---|
| Connection |
