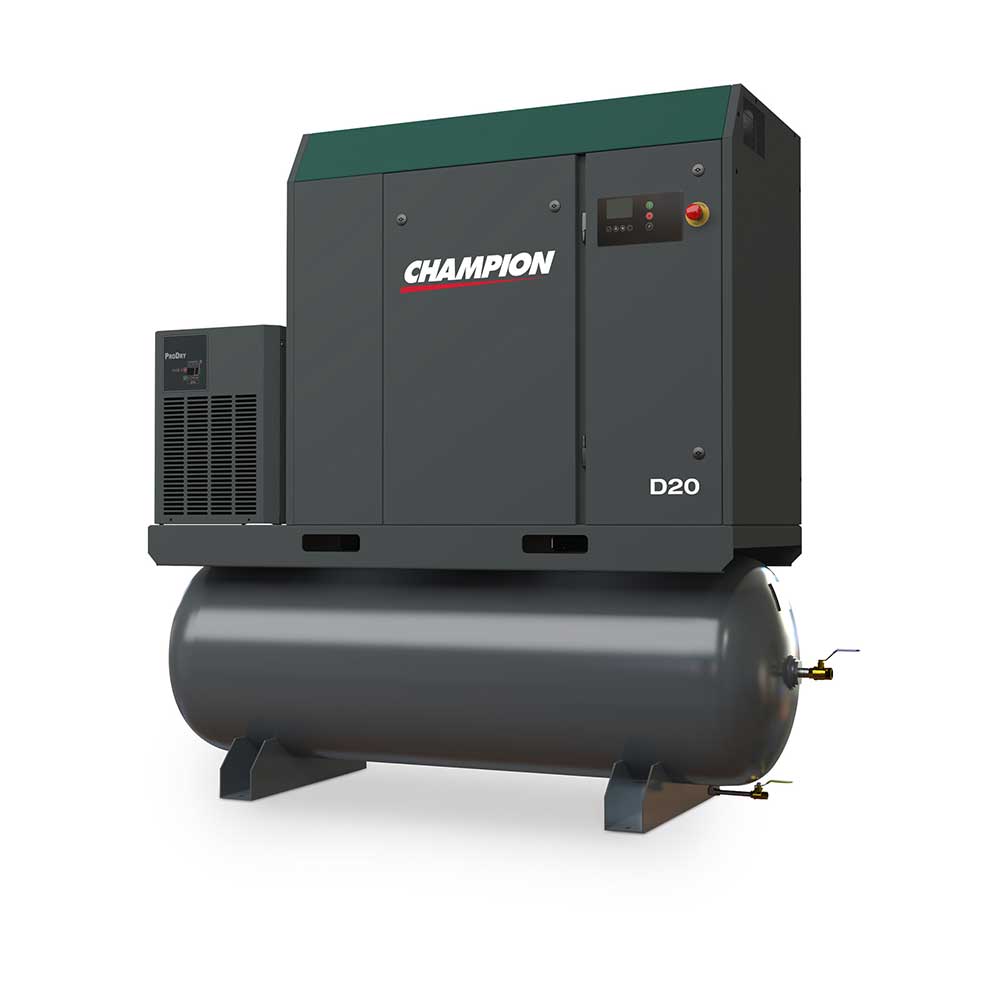

Champion D20 120 Gal 20 HP

5–30 HP FIXED SPEED ROTARY SCREW COMPRESSORS

D Series

Innovative, Integrated Design
D Series compressors feature innovative, integrated airend designs that reduce connection points, enhance reliability, and promote superior serviceability. The simplified, reduced component approach extends beyond the airend into the oil and air cooler. This combination cooler results in a reduction in energy consumption, low discharge air temperatures, and an increase in overall system reliability. Couple these service and reliability benefits with the unit’s small footprint and it’s easy to see why the integrated design approach sets the D Series apart from the competition. Best of all, its affordable.

Quiet & Built to Perform in Demanding Environments
Designed to operate at a 100% duty cycle, D Series compressors from Champion are ideal for demanding environments where dry, clean, continuous-use compressed air is required. The quiet enclosed design enables you to install the compressor near the point-of-use without any concern of elevated noise levels. The D Series yields noise levels as low as 64 dBA allowing you to work comfortably 24/7.

Air System Solution A D Series Air System is a complete solution for your application featuring a:

• Rotary Screw Compressor
• Dry Tank Air Receiver
• Refrigerated Air Dryer & 1 Micron Pre-filter
• Two separate electrical connections (compressor & dryer)
• Pressure gauge
• Tank drain
• Controller

It’s the compact, plug-and-play compressed air solution you’ve been looking for. The D Series Air System is your true compressed air system solution.
