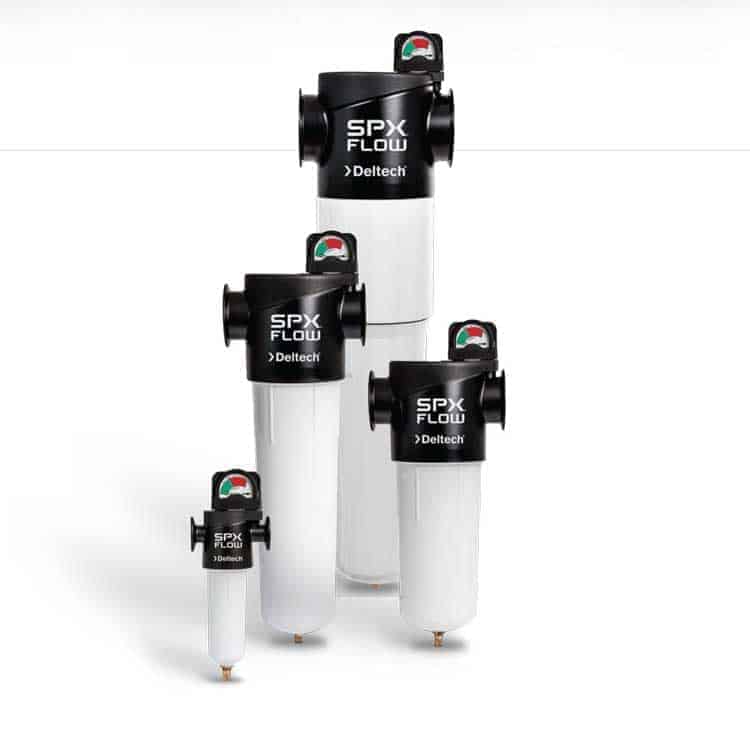

Deltech 300 Series Filter Model 306-C3-T

Patented Venturi-Wave Element Design
– The venturi profile promotes a turbulent-free transition for compressed air entering the element
– Optimized flow distribution through the element minimizes pressure loss and reduces system operating cost
– Unique backside contour assists smooth movement of air exiting the filter housing
Deep Bed Pleated, High Performance Media
– Increased effective filtration surface area, reduces pressure drop by 50%
– 96% voids-volume ratio optimizes dirt loading capacity
– HEPA grade micro fiberglass media maximizes efficiency
– Thermally bonded polyester support layers minimize media migration
– Low wetted pressure drop for the life of the element
– Seam welded, stainless steel inner and outer support cores enhance dimensional stability of the element
– Chemically inert, non-aging polyester drain layer expedites removal of liquid
– All materials of construction are silicone free
Element Grade Identification
– Color coded end caps promote ease of element grade identification
– Bottom end caps pad printed with genuine Hankison filter element replacement part number
Replacement element is Deltech part number 5006594 or element model C3-06
