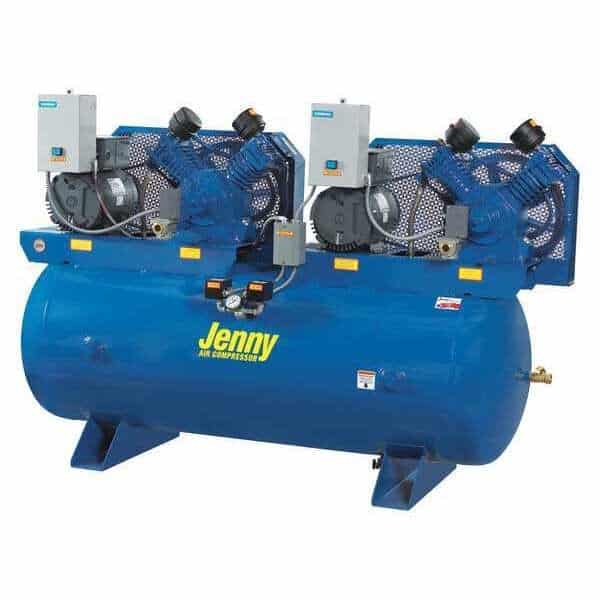

Jenny 2(J5A)-120 10HP 120GAL Compressor
Standard Features
- Heavy-duty cast iron compressor pump Made in Somerset, PA USA
- Splash lubricated
- Belt driven with a large flywheel for extra cooling and easier start-up
- Each unit is filled with Jenny Synthetic Blue Compressor Pump Oil
- Directional air shroud for reduced pump temperatures
- Totally enclosed heavy-duty beltguard
- Tanks are powder coated and ASME certified
- 60 gallon tanks and larger are ASME National Board certified
- Protectively mounted fittings
Manual tank drain(s) - Large canister intake filter with replaceable filter elements
- Special unloading valves to assist in motor starting
Tank gauge - Pressure relief safety valve
- Auto Start/Stop control with pressure unloader set at 75-100 PSI
- Magnetic starter is included on all 5HP and larger units
- Industrial/Commercial grade UL Listed electric motor
- Thermal overload motor protection
- Alternator and magnetic starter standard on all duplex models
| Simplex Single Stage | |||||||
|---|---|---|---|---|---|---|---|
| Model | Pump | HP | Tank Gallon | Power Supply | Pump RPM | CFM Disp | Del’d Air |
| F12C-30C | F | 1/2 | 30 | See Two Stage | 590 | 2.9 | 1.7 |
| KC34C-30C | KC | 3/4 | 420 | 4.8 | 2.7 | ||
| K1C-30C | K | 1 | 520 | 5.9 | 3.7 | ||
| Simplex Two Stage | |||||||
| Model | Pump | HP | Tank Gallon | Power Supply | Pump RPM | CFM Disp | Del’d Air |
| GT2C-60C | GT | 2 | 60 | 115 Volt (through 2 HP) 230 Volt1 Phase |
540 | 11 | 9.1 |
| W3C-80C | W | 3 | 80 | 480 | 13.5 | 11.6 | |
| W5C-80C | 5 | 760 | 21.5 | 17.7 | |||
| U75C-80C | U | 7-1/2 | 610 | 38 | 28.5 | ||
| U10C-80C | 10 | 710 | 43.6 | 35.2 | |||
| T15C-120C | T | 15 | 120 | 208, 230, 460, or 575 Volt 3 Phase Only |
520 | 72.4 | 57.5 |
| T20C-120C | 20 | 670 | 92.6 | 73.5 | |||
| T25C-120C | 25 | 780 | 107 | 85 | |||
| Duplex Single Stage | |||||||
| Model | Pump | HP | Tank Gallon | Power Supply | Pump RPM | CFM Disp | Del’d Air |
| 2(F12C)-30C | F | 1 | 30 | See Two Stage | 590 | 5.8 | 3.4 |
| 2(KC34C)-60C | KC | 1-1/2 | 60 | 420 | 9.6 | 5.4 | |
| 2(K1C)-60C | K | 2 | 520 | 11.8 | 7.4 | ||
| Duplex Two Stage | |||||||
| Model | Pump | HP | Tank Gallon | Power Supply | Pump RPM | CFM Disp | Del’d Air |
| 2(GT2C)-60C | GT | 4 | 60 | 115 Volt (through 2 HP) 230 Volt 1 Phase 208, 230, 460 or 575 Volt 3 Phase |
540 | 22 | 18.2 |
| 2(W3C)-80C | W | 6 | 80 | 480 | 27 | 23.2 | |
| 2(W5C)-80C | 10 | 760 | 43 | 35.4 | |||
| 2(U75C)-120C | U | 15 | 120 | 610 | 76 | 57 | |
| 2(U10C)-120C | 20 | 710 | 87.2 | 70.4 | |||
| 2(GT15C)-60C | GT | 30 | 240 | 410 | 16.8 | 13.8 | |
| 2(T15C)-240C | T | 520 | 144.8 | 115 | |||
| 2(T20C)-240C | 40 | 10 hp and Larger 3 Phase Only |
670 | 185.2 | 147 | ||
| 2(T25C)-240C | 50 | 780 | 214 | 170 |
| Single Stage | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| *MODEL | HP RANGE Electric | NO CYC. | BORE | STROKE | MAX. PSI | APPX SHIP WT. | A | B | C | D | E | F Diam Groove | G | H | I | P NPT |
| F & FU | 1/3 – 1 | 1 | 2 1/2 | 1 3/4 | 150 | 36 | 7 3/4 | 5 9/16 | 3 3/8 | 10 3/8 | 10 1/4 | 10 3/8-1A | 3/8 | 9/32 | 7/8 | N/A |
| K & KU | 1 – 2 | 2 | 2 1/2 | 2 | 150 | 50 | 10 | 5 7/8 | 5 3/4 | 11 1/8 | 12 3/16 | 10 3/8-1A | 3/8 | 11/32 | 7/8 | 1/2 |
| G & GU | 3-5 | 4 | 2 1/2 | 2 3/8 | 150 | 85 | 11 1/2 | 7 1/8 | 6 1/8 | 15 1/4 | 14 1/2 | 10 3/8-2A | 1/2 | 11/32 | 7/8 | 1/2 |
| J & JU | 3-5 | 4 | 2 1/2 | 3 1/4 | 150 | 175 | 16 5/16 | 9 1/8 | 6 3/4 | 20 | 16 1/2 | 16-2A | 1/2 | 11/32 | 1 1/8 | 1/2 |
| Two Stage | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GT & GTU | 1 1/2-5 | 4 | 21/2 (3)-21/2 | 2 3/8 | 200 | 110 | 14 3/8 | 7 1/8 | 6 1/8 | 15 1/2 | 14 1/2 | 13 1/2-2A | 1/2 | 11/32 | 7/8 | 1/2 |
| W & WU | 3-5 | 4 | 21/2 (3)-21/2 | 3 1/4 | 200 | 175 | 16 5/16 | 9 1/8 | 6 3/4 | 20 | 16 1/2 | 16-2A | 1/2 | 11/32 | 1 1/8 | 1/2 |
| U | 7 1/2 10 | 4 | 4 3/4 X 2 1/2 | 3 | 200 | 340 | 21 1/16 | 10 5/8 | 6 1/4 | 23 | 20 3/8 | 18-3B | 1 | 17/32 | 1 3/8 | 1 |
| T | 15-25 | 4 | 5 1/2 X 3 | 5 | 200 | 750 | 31 | 16 | 10 | 42 | 34 | 25 1/2-4B | 1 | 25/32 | 2 3/16 | 1 1/2 |
| NOTE – Units of measure-weight-pounds; dimensions-inches; pressure-pounds per square inch. When replacing pumps, consult factory regarding applicable conversion kit that may be required. |
||||||||||||||||
| Weight | 1130 lbs |
|---|---|
| Dimensions | 31 × 49 × 74 in |
| Model | |
| compressor-horsepower | |
| compressor-hp-range | |
| tank-size-compressor | |
| tank-size-range | |
| voltage | |
| compressor-cfm | |
| compressor-cfm-range | |
| compressor-psi | |
| Brand |
