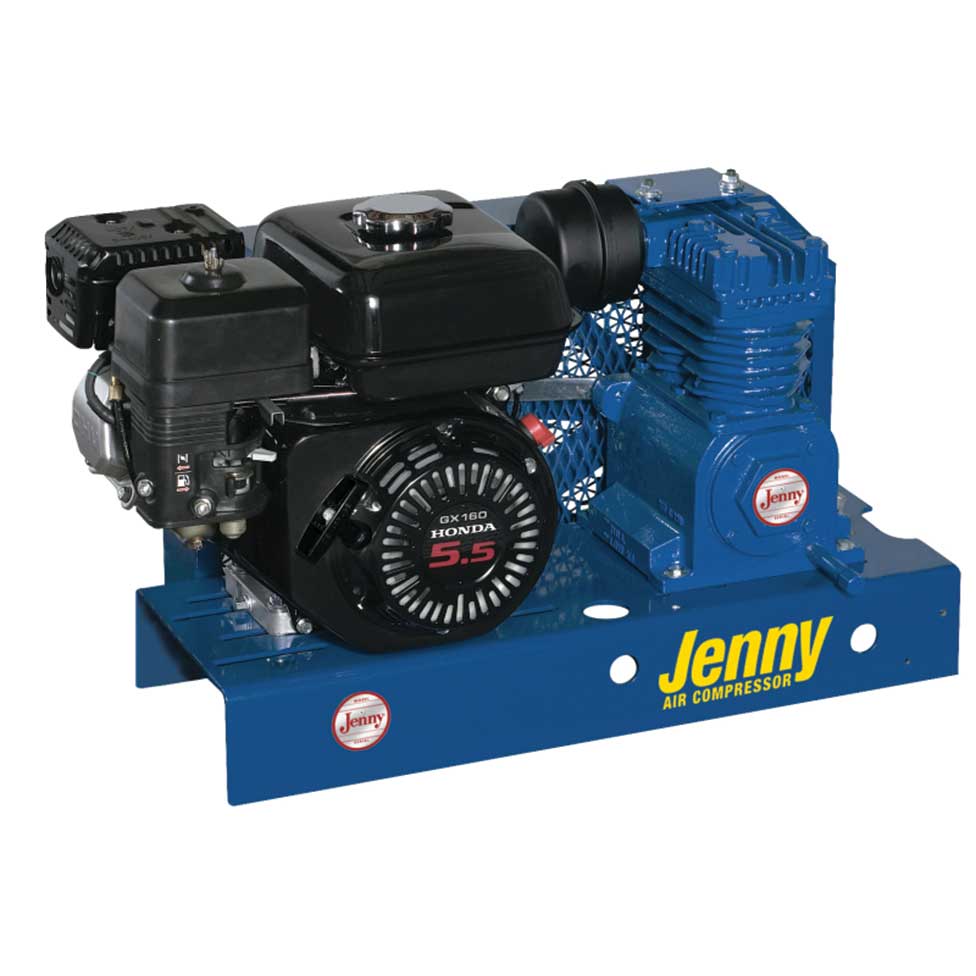

Jenny C6HGA-B 6.5HP BASE MOUNT Compressor
Standard Features
- Heavy-duty single or two stage cast iron compressor pump Made in Somerset, PA USA
- Splash lubricated
- Belt driven with a large flywheel for extra cooling and easier start-up
- Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
- Directional air shroud for reduced pump temperatures
- Totally enclosed heavy-duty belt guard
- Powder coated, extra heavy steel base plate
- Large canister intake filter with replaceable filter elements
- Pressure relief safety valve
- Pressure gauge
Electric Units
- Auto Start/Stop control with pressure unloader set at 105-125 PSI (single stage) or 145-175 PSI (two stage)
- Control group (not mounted)
- Check valve
- Magnetic starter is included on all 5 HP and larger units
- Industrial/Commercial grade UL listed electric motor
- Thermal overload motor protection
| Model | Pump | HP | Power Supply | Pump RPM | 175 PSI CFM Disp |
Del’d Air |
| GT2B-B |
GT
|
2 |
115 Volt
(through 2 HP) or 230 Volt 1 Phase 208, 230, 460 |
450 | 9.1 | 7.1 |
| GT3B-B |
3
|
660 | 13.4 | 10.7 | ||
| W3B-B | W | 440 | 12.2 | 10.7 | ||
| GT5B-B | GT |
5
|
900 | 18.3 | 15.2 | |
| W5B-B | W | 760 | 21.1 | 17.5 | ||
| U75B-B |
U
|
7-1/2 | 610 | 38 | 27.2 | |
| U10B-B | 10 |
208, 230, 460
or 575 Volt 3 Phase Only |
710 | 43.6 | 35.2 | |
| T15B-B |
T
|
15 | 520 | 72.4 | 56.5 | |
| T20B-B | 20 | 670 | 92.6 | 72.2 | ||
| T25B-B | 25 | 780 | 107 | 83 |
| Single Stage | ||||||||||||||||
| *MODEL | HP RANGE Electric |
NO CYC. | BORE | STROKE | MAX. PSI | APPX SHIP WT. |
A | B | C | D | E | F Diam Groove |
G | H | I | P NPT |
| F & FU | 1/3 – 1 | 1 | 2 1/2 | 1 3/4 | 150 | 36 | 7 3/4 | 5 9/16 | 3 3/8 | 10 3/8 | 10 1/4 | 10 3/8-1A | 3/8 | 9/32 | 7/8 | N/A |
| K & KU | 1 – 2 | 2 | 2 1/2 | 2 | 150 | 50 | 10 | 5 7/8 | 5 3/4 | 11 1/8 | 12 3/16 | 10 3/8-1A | 3/8 | 11/32 | 7/8 | 1/2 |
| G & GU | 3-5 | 4 | 2 1/2 | 2 3/8 | 150 | 85 | 11 1/2 | 7 1/8 | 6 1/8 | 15 1/4 | 14 1/2 | 10 3/8-2A | 1/2 | 11/32 | 7/8 | 1/2 |
| J & JU | 3-5 | 4 | 2 1/2 | 3 1/4 | 150 | 175 | 16 5/16 | 9 1/8 | 6 3/4 | 20 | 16 1/2 | 16-2A | 1/2 | 11/32 | 1 1/8 | 1/2 |
| Two Stage | ||||||||||||||||
| GT & GTU | 1 1/2-5 | 4 | 21/2 (3)-21/2 | 2 3/8 | 200 | 110 | 14 3/8 | 7 1/8 | 6 1/8 | 15 1/2 | 14 1/2 | 13 1/2-2A | 1/2 | 11/32 | 7/8 | 1/2 |
| W & WU | 3-5 | 4 | 21/2 (3)-21/2 | 3 1/4 | 200 | 175 | 16 5/16 | 9 1/8 | 6 3/4 | 20 | 16 1/2 | 16-2A | 1/2 | 11/32 | 1 1/8 | 1/2 |
| U | 7 1/2 10 | 4 | 4 3/4 X 2 1/2 | 3 | 200 | 340 | 21 1/16 | 10 5/8 | 6 1/4 | 23 | 20 3/8 | 18-3B | 1 | 17/32 | 1 3/8 | 1 |
| T | 15-25 | 4 | 5 1/2 X 3 | 5 | 200 | 750 | 31 | 16 | 10 | 42 | 34 | 25 1/2-4B | 1 | 25/32 | 2 3/16 | 1 1/2 |
| NOTE – Units of measure-weight-pounds; dimensions-inches; pressure-pounds per square inch. When replacing pumps, consult factory regarding applicable conversion kit that may be required. |
||||||||||||||||
| Weight | 177 lbs |
|---|---|
| Dimensions | 44 × 33 × 23 in |
| Model | |
| Compressor Horsepower | |
| Compressor Horsepower Range | |
| Tank Size | |
| Tank Size Range | |
| voltage | |
| Compressor CFM | |
| Compressor CFM Range | |
| Compressor PSI | |
| Brand |
