Jenny G5S-BS 5HP Sprinkler Compressor

Name: Jenny G5S-BS 5HP Sprinkler Compressor - The Air Compressor Store
SKU: G5S-BS
Price: 2357.00 USD
Availability: InStock

Original price was: $2,946.00.Current price is: $2,357.00.

SKU: G5S-BS Category: Fire Sprinkler

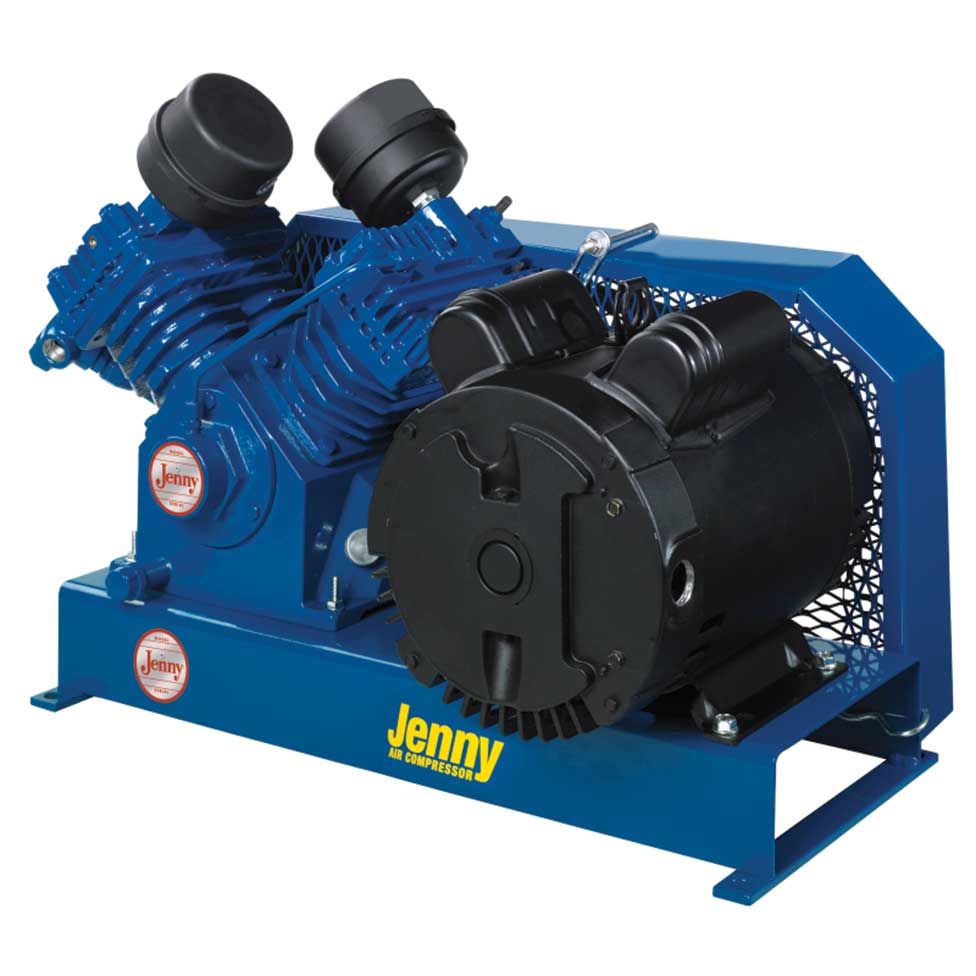

Jenny G5S-BS 5HP Sprinkler Compressor

Base Plated Mounted

Standard Features

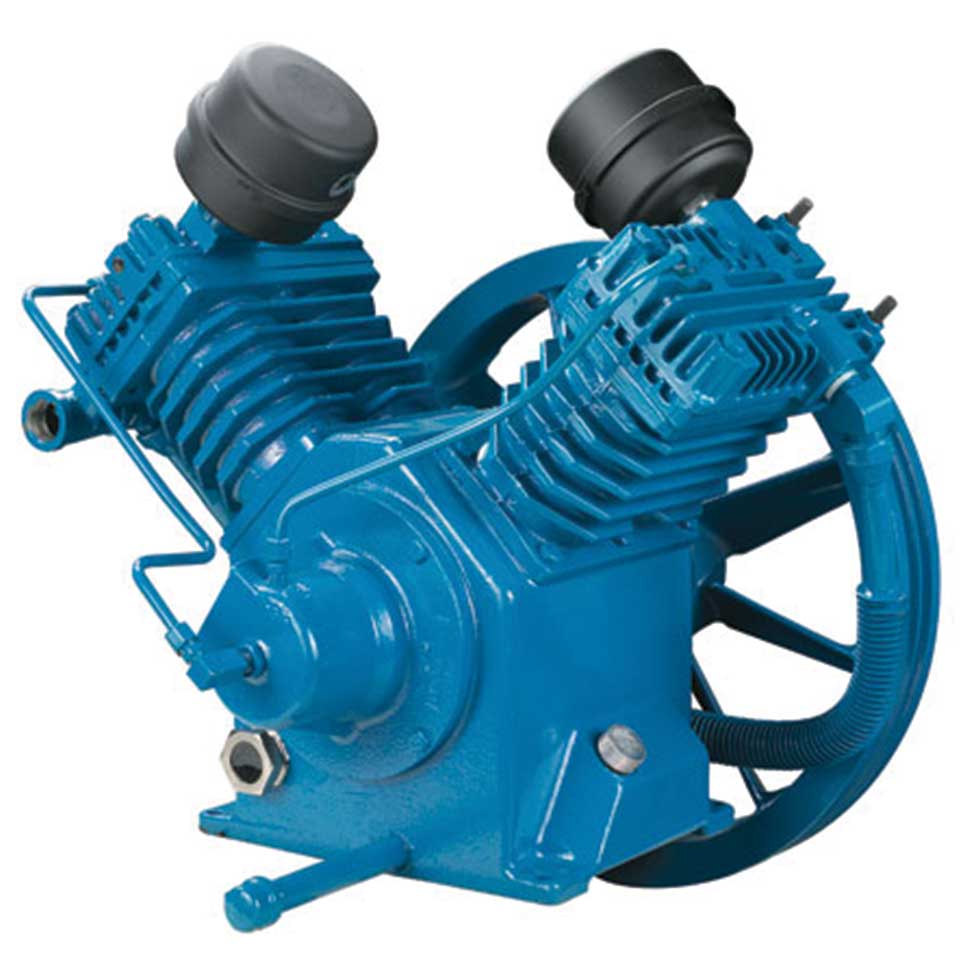

Heavy-duty single stage cast iron compressor pump – Made in Somerset, PA USA
Splash lubricated
Belt driven with a large flywheel for extra cooling and easier start-up
Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
Directional air shroud for reduced pump temperatures
Thermal overload motor protection
Totally enclosed heavy-duty beltguard
Powder coated, extra heavy steel base plate
Large canister intake filter with replaceable filter elements
Magnetic starter is included on all 5HP and larger units
Industrial/Commercial grade UL Listed electric motor
Thermal overload motor protection Base Mounted

Tank Mounted

Additional Standard Features

Tanks are powder coated and ASME certified
Protectively mounted fittings
Manual tank drain(s)
Large canister intake filter with replaceable filter elements
Special unloading valves to assist in motor starting
Tank gauge
Pressure relief safety valve
Auto Start/Stop control with pressure unloader set at 25-40 PSI

Base Mounted
System Size Maximum Gallons in system to be pumped to 40 PSI in 30 Minutes
	Model	Pump	HP	Power Supply	Pump RPM	CFM del’d @ 40 PSI
220	F13S-BS	F	1/3	115 Volt (through 2 HP) or 230 Volt 1 Phase 208, 230, 460 or 575 Volt 3 Phase	670	2.9
290	F12S-BS		1/2		950	3.8
350	F34S-BS		3/4		1200	4.4
425	K34S-BS	K	3/4		520	5.3
480	F1S-BS	F	1		1430	6
600	K1S-BS	K	1		790	7.4
885	K15S-BS		1-1/2		1140	10.9
985	K2S-BS		2		1280	12.4
1215	G2S-BS	G	2		630	15.1
1775	G3S-BS		3		950	21.8
1950	GC5S-BS		5		1030	24.2
2115	J5S-BS	J	5		830	26

Tank Mounted/30 Gallonon
System Size Maximum Gallons in system to be pumped to 40 PSI in 30 Minutes	Model	Pump	HP	Power Supply	Pump RPM	CFM del’d @ 40 PSI
		F		115 Volt (through 2 HP) 230 Volt 1 Phase 208, 230, 460 or 575 Volt 3 Phase
220	F13S-30UMS		1/3		670	2.9
290	F12S-30UMS		1/2		950	3.8
350	F34S-30UMS		3/4		1200	4.4
425	K34S-30UMS	K	3/4		520	5.3
480	F1S-30UMS	F	1		1430	6
600	K1S-30UMS	K	1		790	7.4
885	K15S-30UMS		1-1/2		1140	10.9
985	K2S-30UMS		2		1280	12.4
1215	G2S-30UMS	G	2		630	15.1
1775	G3S-30UMS	G	3		950	21.8
1950	GC5S-30UMS	GC	5		1030	24.2
2115	J5S-30UMS	J	5		830	26

Single Stage

*MODEL

HP
RANGE
Electric

NO CYC.

BORE

STROKE

MAX. PSI

APPX
SHIP
WT.

F
Diam
Groove

P
NPT

F & FU

1/3 – 1

2 1/2

1 3/4

150

7 3/4

5 9/16

3 3/8

10 3/8

10 1/4

10 3/8-1A

3/8

9/32

7/8

N/A

K & KU

1 – 2

2 1/2

150

5 7/8

5 3/4

11 1/8

12 3/16

10 3/8-1A

3/8

11/32

7/8

1/2

G & GU

3-5

2 1/2

2 3/8

150

11 1/2

7 1/8

6 1/8

15 1/4

14 1/2

10 3/8-2A

1/2

11/32

7/8

1/2

J & JU

3-5

2 1/2

3 1/4

150

175

16 5/16

9 1/8

6 3/4

16 1/2

16-2A

1/2

11/32

1 1/8

1/2

Two Stage

GT & GTU

1 1/2-5

21/2 (3)-21/2

2 3/8

200

110

14 3/8

7 1/8

6 1/8

15 1/2

14 1/2

13 1/2-2A

1/2

11/32

7/8

1/2

W & WU

3-5

21/2 (3)-21/2

3 1/4

200

175

16 5/16

9 1/8

6 3/4

16 1/2

16-2A

1/2

11/32

1 1/8

1/2

7 1/2 10

4 3/4 X 2 1/2

200

340

21 1/16

10 5/8

6 1/4

20 3/8

18-3B

17/32

1 3/8

15-25

5 1/2 X 3

200

750

25 1/2-4B

25/32

2 3/16

1 1/2

NOTE – Units of measure-weight-pounds; dimensions-inches; pressure-pounds per square inch.
When replacing pumps, consult factory regarding applicable conversion kit that may be required.

Weight	250 lbs
Dimensions	16 × 19 × 28 in
Model	G5S-BS
Compressor Horsepower	5
Compressor Horsepower Range	5 – 9.5 HP
Tank Size	BASE MOUNT
Tank Size Range	Base Mount
voltage	200/3/60, 230/1/60, 230/3/60, 460/3/60, 575/3/60
Compressor CFM	24.2
Compressor CFM Range	15 – 24.9
Compressor PSI	30-40
Brand	Jenny Compressors
