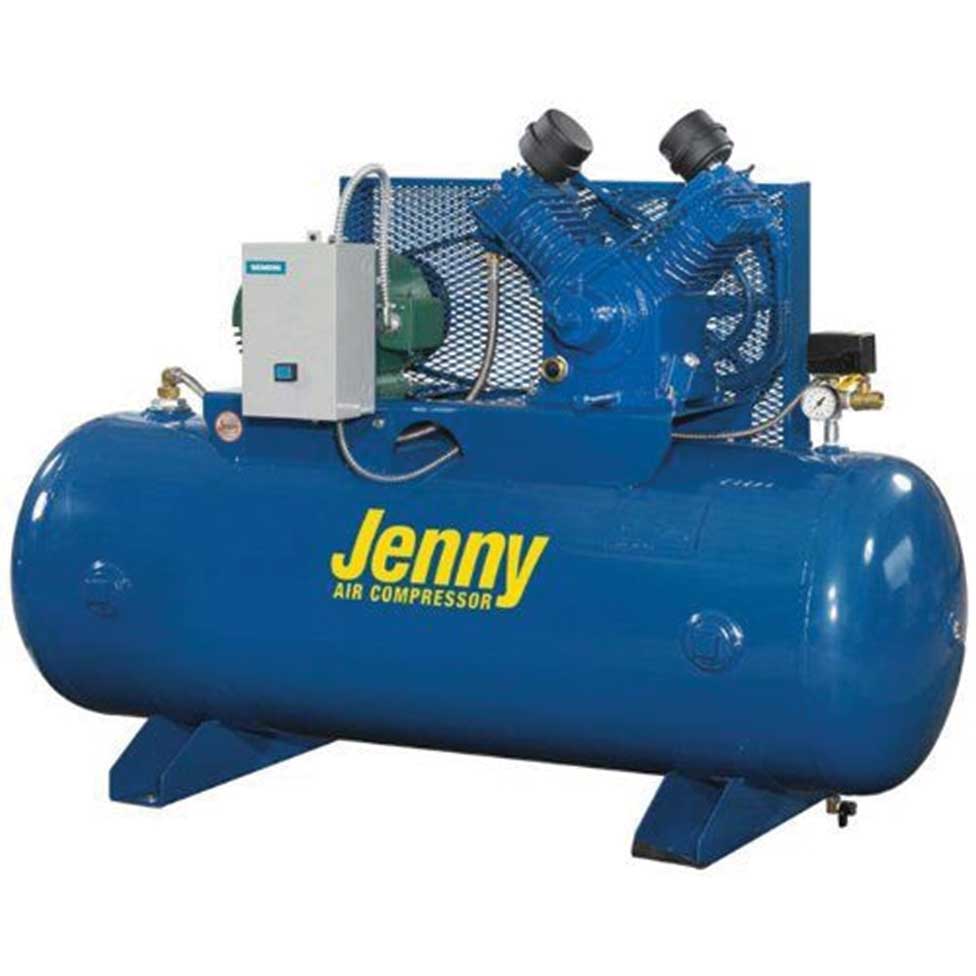

Jenny GT2C-60C 2HP 60GAL Compressor
Jenny GT2C-60C 2HP 60GAL Compressor - Image 2

Jenny GT2C-60C 2HP 60GAL Compressor

Original price was: $3,736.00.Current price is: $2,989.00.

SKU: GT2C-60C Category:

Jenny GT2C-60C 2HP 60GAL Compressor

Standard Features

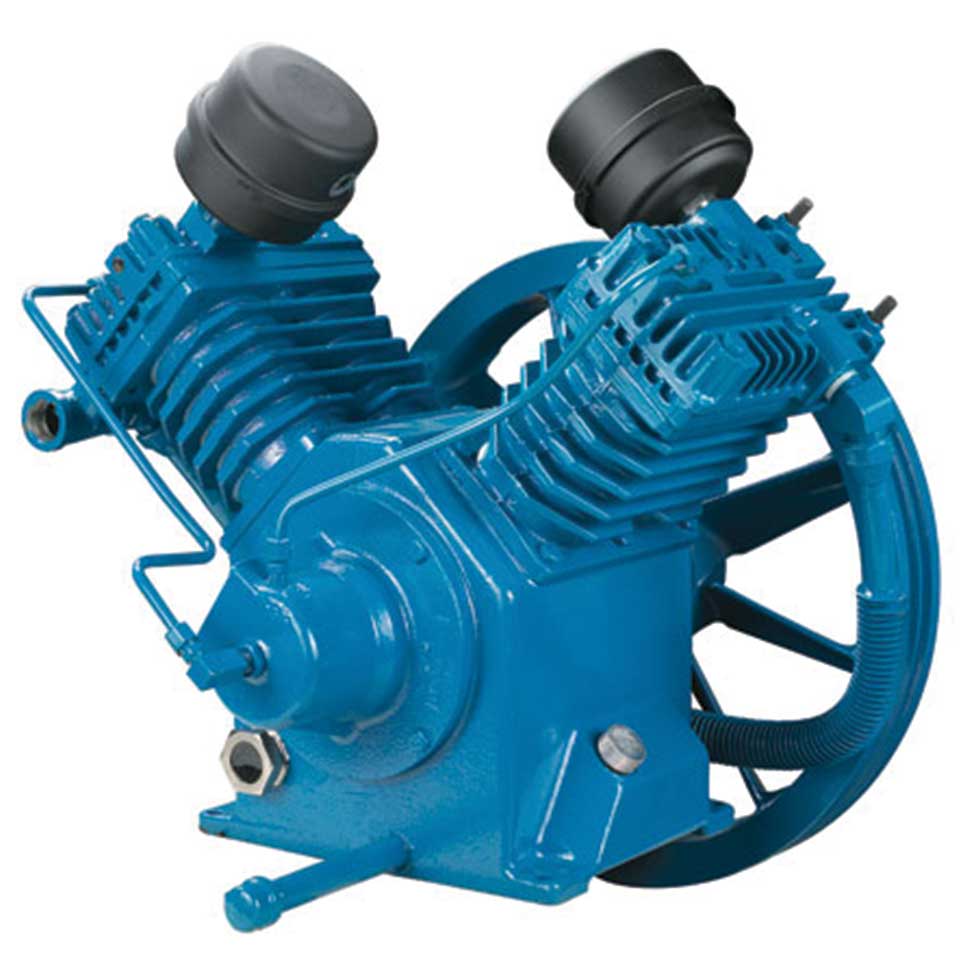

  • Heavy-duty cast iron compressor pump Made in Somerset, PA USA
  • Splash lubricated
  • Belt driven with a large flywheel for extra cooling and easier start-up
  • Each unit is filled with Jenny Synthetic Blue Compressor Pump Oil
  • Directional air shroud for reduced pump temperatures
  • Totally enclosed heavy-duty beltguard
  • Tanks are powder coated and ASME certified
  • 60 gallon tanks and larger are ASME National Board certified
  • Protectively mounted fittings
    Manual tank drain(s)
  • Large canister intake filter with replaceable filter elements
  • Special unloading valves to assist in motor starting
    Tank gauge
  • Pressure relief safety valve
  • Auto Start/Stop control with pressure unloader set at 75-100 PSI
  • Magnetic starter is included on all 5HP and larger units
  • Industrial/Commercial grade UL Listed electric motor
  • Thermal overload motor protection
  • Alternator and magnetic starter standard on all duplex models
Simplex Single Stage
Model Pump HP Tank Gallon Power Supply Pump RPM CFM Disp Del’d Air
F12C-30C F 1/2 30 See Two Stage 590 2.9 1.7
KC34C-30C KC 3/4 420 4.8 2.7
K1C-30C K 1 520 5.9 3.7
Simplex Two Stage
Model Pump HP Tank Gallon Power Supply Pump RPM CFM Disp Del’d Air
GT2C-60C GT 2 60 115 Volt
(through 2 HP)
230 Volt1 Phase		 540 11 9.1
W3C-80C W 3 80 480 13.5 11.6
W5C-80C 5 760 21.5 17.7
U75C-80C U 7-1/2 610 38 28.5
U10C-80C 10 710 43.6 35.2
T15C-120C T 15 120 208, 230, 460,
or 575 Volt
3 Phase Only		 520 72.4 57.5
T20C-120C 20 670 92.6 73.5
T25C-120C 25 780 107 85
Duplex Single Stage
Model Pump HP Tank Gallon Power Supply Pump RPM CFM Disp Del’d Air
2(F12C)-30C F 1 30 See Two Stage 590 5.8 3.4
2(KC34C)-60C KC 1-1/2 60 420 9.6 5.4
2(K1C)-60C K 2 520 11.8 7.4
Duplex Two Stage
Model Pump HP Tank Gallon Power Supply Pump RPM CFM Disp Del’d Air
2(GT2C)-60C GT 4 60 115 Volt
(through 2 HP)
230 Volt 1 Phase
208, 230, 460 or 575
Volt 3 Phase		 540 22 18.2
2(W3C)-80C W 6 80 480 27 23.2
2(W5C)-80C 10 760 43 35.4
2(U75C)-120C U 15 120 610 76 57
2(U10C)-120C 20 710 87.2 70.4
2(GT15C)-60C GT 30 240 410 16.8 13.8
2(T15C)-240C T 520 144.8 115
2(T20C)-240C 40 10 hp and Larger
3 Phase Only		 670 185.2 147
2(T25C)-240C 50 780 214 170

Single Stage
*MODEL HP RANGE Electric NO CYC. BORE STROKE MAX. PSI APPX SHIP WT. A B C D E F Diam Groove G H I P NPT
F & FU 1/3 – 1 1 2 1/2 1 3/4 150 36 7 3/4 5 9/16 3 3/8 10 3/8 10 1/4 10 3/8-1A 3/8 9/32 7/8 N/A
K & KU 1 – 2 2 2 1/2 2 150 50 10 5 7/8 5 3/4 11 1/8 12 3/16 10 3/8-1A 3/8 11/32 7/8 1/2
G & GU 3-5 4 2 1/2 2 3/8 150 85 11 1/2 7 1/8 6 1/8 15 1/4 14 1/2 10 3/8-2A 1/2 11/32 7/8 1/2
J & JU 3-5 4 2 1/2 3 1/4 150 175 16 5/16 9 1/8 6 3/4 20 16 1/2 16-2A 1/2 11/32 1 1/8 1/2

Two Stage
GT & GTU 1 1/2-5 4 21/2 (3)-21/2 2 3/8 200 110 14 3/8 7 1/8 6 1/8 15 1/2 14 1/2 13 1/2-2A 1/2 11/32 7/8 1/2
W & WU 3-5 4 21/2 (3)-21/2 3 1/4 200 175 16 5/16 9 1/8 6 3/4 20 16 1/2 16-2A 1/2 11/32 1 1/8 1/2
U 7 1/2 10 4 4 3/4 X 2 1/2 3 200 340 21 1/16 10 5/8 6 1/4 23 20 3/8 18-3B 1 17/32 1 3/8 1
T 15-25 4 5 1/2 X 3 5 200 750 31 16 10 42 34 25 1/2-4B 1 25/32 2 3/16 1 1/2
NOTE – Units of measure-weight-pounds; dimensions-inches; pressure-pounds per square inch.
When replacing pumps, consult factory regarding applicable conversion kit that may be required.

Weight 450 lbs
Dimensions 32 × 51 × 64 in
Model

Compressor Horsepower

Compressor Horsepower Range

Tank Size

Tank Size Range

voltage

, , , , ,

Compressor CFM

Compressor CFM Range

Compressor PSI

Brand
