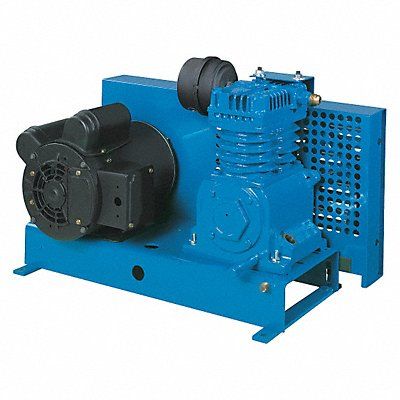

Jenny K34S-BS 0.75HP Sprinkler Compressor
Base Plated Mounted
Standard Features
- Heavy-duty single stage cast iron compressor pump – Made in Somerset, PA USA
- Splash lubricated
- Belt driven with a large flywheel for extra cooling and easier start-up
- Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
- Directional air shroud for reduced pump temperatures
- Thermal overload motor protection
- Totally enclosed heavy-duty beltguard
- Powder coated, extra heavy steel base plate
- Large canister intake filter with replaceable filter elements
- Magnetic starter is included on all 5HP and larger units
- Industrial/Commercial grade UL Listed electric motor
- Thermal overload motor protection Base Mounted
Tank Mounted
Additional Standard Features
- Tanks are powder coated and ASME certified
Protectively mounted fittings - Manual tank drain(s)
- Large canister intake filter with replaceable filter elements
- Special unloading valves to assist in motor starting
- Tank gauge
- Pressure relief safety valve
- Auto Start/Stop control with pressure unloader set at 25-40 PSI
|
Base Mounted
|
||||||
|
System Size Maximum Gallons in system to be pumped to 40 PSI in 30 Minutes
|
||||||
| Model | Pump | HP | Power Supply | Pump RPM |
CFM del’d @ 40 PSI
|
|
| 220 | F13S-BS |
F
|
1/3 |
115 Volt
(through 2 HP) or 230 Volt 1 Phase 208, 230, |
670 | 2.9 |
| 290 | F12S-BS | 1/2 | 950 | 3.8 | ||
| 350 | F34S-BS |
3/4
|
1200 | 4.4 | ||
| 425 | K34S-BS | K | 520 | 5.3 | ||
| 480 | F1S-BS | F |
1
|
1430 | 6 | |
| 600 | K1S-BS |
K
|
790 | 7.4 | ||
| 885 | K15S-BS | 1-1/2 | 1140 | 10.9 | ||
| 985 | K2S-BS |
2
|
1280 | 12.4 | ||
| 1215 | G2S-BS |
G
|
630 | 15.1 | ||
| 1775 | G3S-BS | 3 | 950 | 21.8 | ||
| 1950 | GC5S-BS |
5
|
1030 | 24.2 | ||
| 2115 | J5S-BS | J | 830 | 26 | ||
|
Tank Mounted/30 Gallonon
|
||||||
| System Size Maximum Gallons in system to be pumped to 40 PSI in 30 Minutes | Model | Pump | HP | Power Supply | Pump RPM |
CFM del’d @ 40 PSI
|
|
F
|
115 Volt
(through 2 HP) 230 Volt 1 Phase 208, 230, |
|||||
| 220 | F13S-30UMS | 1/3 | 670 | 2.9 | ||
| 290 | F12S-30UMS | 1/2 | 950 | 3.8 | ||
| 350 | F34S-30UMS |
3/4
|
1200 | 4.4 | ||
| 425 | K34S-30UMS | K | 520 | 5.3 | ||
| 480 | F1S-30UMS | F |
1
|
1430 | 6 | |
| 600 | K1S-30UMS |
K
|
790 | 7.4 | ||
| 885 | K15S-30UMS | 1-1/2 | 1140 | 10.9 | ||
| 985 | K2S-30UMS |
2
|
1280 | 12.4 | ||
| 1215 | G2S-30UMS |
G
|
630 | 15.1 | ||
| 1775 | G3S-30UMS | 3 | 950 | 21.8 | ||
| 1950 | GC5S-30UMS | GC |
5
|
1030 | 24.2 | |
| 2115 | J5S-30UMS | J | 830 | 26 |
| Single Stage | ||||||||||||||||
| *MODEL | HP RANGE Electric |
NO CYC. | BORE | STROKE | MAX. PSI | APPX SHIP WT. |
A | B | C | D | E | F Diam Groove |
G | H | I | P NPT |
| F & FU | 1/3 – 1 | 1 | 2 1/2 | 1 3/4 | 150 | 36 | 7 3/4 | 5 9/16 | 3 3/8 | 10 3/8 | 10 1/4 | 10 3/8-1A | 3/8 | 9/32 | 7/8 | N/A |
| K & KU | 1 – 2 | 2 | 2 1/2 | 2 | 150 | 50 | 10 | 5 7/8 | 5 3/4 | 11 1/8 | 12 3/16 | 10 3/8-1A | 3/8 | 11/32 | 7/8 | 1/2 |
| G & GU | 3-5 | 4 | 2 1/2 | 2 3/8 | 150 | 85 | 11 1/2 | 7 1/8 | 6 1/8 | 15 1/4 | 14 1/2 | 10 3/8-2A | 1/2 | 11/32 | 7/8 | 1/2 |
| J & JU | 3-5 | 4 | 2 1/2 | 3 1/4 | 150 | 175 | 16 5/16 | 9 1/8 | 6 3/4 | 20 | 16 1/2 | 16-2A | 1/2 | 11/32 | 1 1/8 | 1/2 |
| Two Stage | ||||||||||||||||
| GT & GTU | 1 1/2-5 | 4 | 21/2 (3)-21/2 | 2 3/8 | 200 | 110 | 14 3/8 | 7 1/8 | 6 1/8 | 15 1/2 | 14 1/2 | 13 1/2-2A | 1/2 | 11/32 | 7/8 | 1/2 |
| W & WU | 3-5 | 4 | 21/2 (3)-21/2 | 3 1/4 | 200 | 175 | 16 5/16 | 9 1/8 | 6 3/4 | 20 | 16 1/2 | 16-2A | 1/2 | 11/32 | 1 1/8 | 1/2 |
| U | 7 1/2 10 | 4 | 4 3/4 X 2 1/2 | 3 | 200 | 340 | 21 1/16 | 10 5/8 | 6 1/4 | 23 | 20 3/8 | 18-3B | 1 | 17/32 | 1 3/8 | 1 |
| T | 15-25 | 4 | 5 1/2 X 3 | 5 | 200 | 750 | 31 | 16 | 10 | 42 | 34 | 25 1/2-4B | 1 | 25/32 | 2 3/16 | 1 1/2 |
| NOTE – Units of measure-weight-pounds; dimensions-inches; pressure-pounds per square inch. When replacing pumps, consult factory regarding applicable conversion kit that may be required. |
||||||||||||||||
