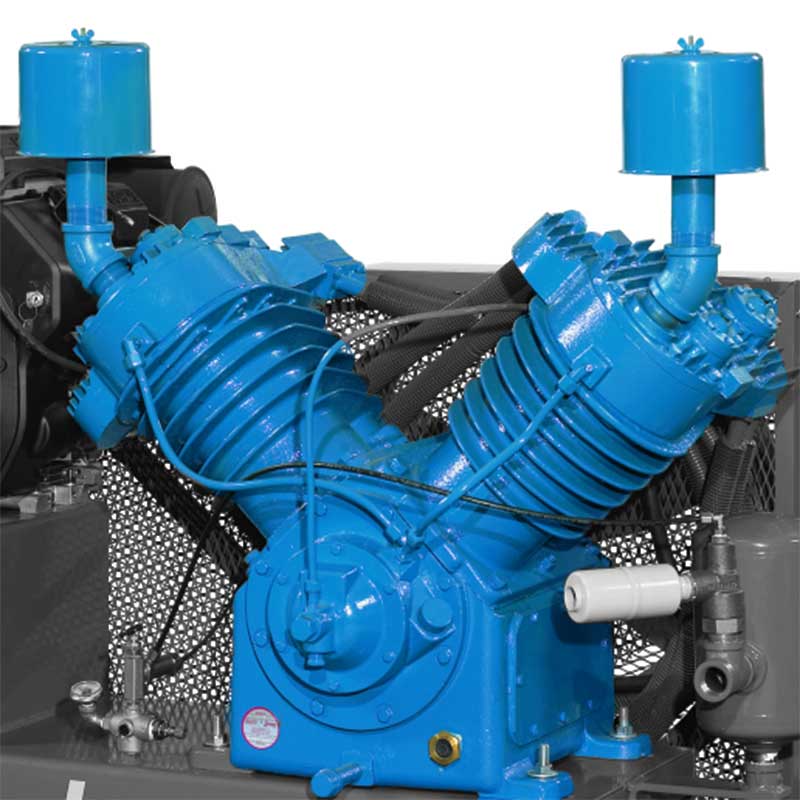

Jenny T25B-120 120HP 25GAL Compressor
Standard Features
- Heavy-duty single or two stage cast iron compressor pump – Made in Somerset, PA USA
- Splash lubricated
- Belt driven with a large flywheel for extra cooling and easier start-up
- Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
- Directional air shroud for reduced pump temperatures
- Totally enclosed heavy-duty belt guard
- Tanks are powder coated and ASME certified
- 60 gallon tanks and larger are ASME National Board certified
- Protectively mounted fittings
- Manual tank drain(s)
- Large canister intake filter with replaceable filter elements
- Special unloading valves to assist in motor starting
- Tank gauge
- Pressure relief safety valve
- Auto Start/Stop control with pressure unloader set at 145-175 PSI (two stage)
- Magnetic starter is included on all 5HPand larger units
- Industrial/Commercial grade UL Listed electric motor
- Thermal overload motor protection
- Alternator and magnetic starter are standard on all duplex models
| Model | Pump | HP | Tank Gallon | Power Supply | Pump RPM | 175 PSI CFM Disp |
Del’d Air |
| GT2B-60 |
GT
|
2
|
60 |
115 Volt
(through 2 HP) or 230 Volt 1 Phase 208, 230, |
450
|
9.1
|
7.1
|
| GT2B-80 | 80 | ||||||
| GT3B-60 |
3
|
60 |
660
|
13.4
|
10.7
|
||
| GT3B-80 | 80 | ||||||
| W3B-60 |
W
|
60 |
440
|
12.2
|
10.7
|
||
| W3B-80 | 80 | ||||||
| GT5B-60 |
GT
|
5
|
60 |
900
|
18.3
|
15.2
|
|
| GT5B-80 | 80 | ||||||
| GT5B-120 | 120 | ||||||
| W5B-60 |
W
|
60 |
760
|
21.1
|
17.5
|
||
| W5B-80 | 80 | ||||||
| W5B-120 | 120 | ||||||
| U75B-80 |
U
|
7-1/2
|
80 |
610
|
38
|
27.2
|
|
| U75B-120 | 120 | ||||||
| U10B-80 |
10
|
80 |
208, 230,
460 or 575 Volt 3 Phase Only |
710
|
43.6
|
35.2
|
|
| U10B-120 | 120 | ||||||
| T15B-120 |
T
|
15
|
120 |
520
|
72.4
|
56.5
|
|
| T15B-240 | 240 | ||||||
| T20B-120 |
20
|
120 |
670
|
92.6
|
72.2
|
||
| T20B-240 | 240 | ||||||
| T25B-120 |
25
|
120 |
780
|
107
|
83
|
||
| T25B-240 | 240 |
| Single Stage | ||||||||||||||||
| *MODEL | HP RANGE Electric |
NO CYC. | BORE | STROKE | MAX. PSI | APPX SHIP WT. |
A | B | C | D | E | F Diam Groove |
G | H | I | P NPT |
| F & FU | 1/3 – 1 | 1 | 2 1/2 | 1 3/4 | 150 | 36 | 7 3/4 | 5 9/16 | 3 3/8 | 10 3/8 | 10 1/4 | 10 3/8-1A | 3/8 | 9/32 | 7/8 | N/A |
| K & KU | 1 – 2 | 2 | 2 1/2 | 2 | 150 | 50 | 10 | 5 7/8 | 5 3/4 | 11 1/8 | 12 3/16 | 10 3/8-1A | 3/8 | 11/32 | 7/8 | 1/2 |
| G & GU | 3-5 | 4 | 2 1/2 | 2 3/8 | 150 | 85 | 11 1/2 | 7 1/8 | 6 1/8 | 15 1/4 | 14 1/2 | 10 3/8-2A | 1/2 | 11/32 | 7/8 | 1/2 |
| J & JU | 3-5 | 4 | 2 1/2 | 3 1/4 | 150 | 175 | 16 5/16 | 9 1/8 | 6 3/4 | 20 | 16 1/2 | 16-2A | 1/2 | 11/32 | 1 1/8 | 1/2 |
| Two Stage | ||||||||||||||||
| GT & GTU | 1 1/2-5 | 4 | 21/2 (3)-21/2 | 2 3/8 | 200 | 110 | 14 3/8 | 7 1/8 | 6 1/8 | 15 1/2 | 14 1/2 | 13 1/2-2A | 1/2 | 11/32 | 7/8 | 1/2 |
| W & WU | 3-5 | 4 | 21/2 (3)-21/2 | 3 1/4 | 200 | 175 | 16 5/16 | 9 1/8 | 6 3/4 | 20 | 16 1/2 | 16-2A | 1/2 | 11/32 | 1 1/8 | 1/2 |
| U | 7 1/2 10 | 4 | 4 3/4 X 2 1/2 | 3 | 200 | 340 | 21 1/16 | 10 5/8 | 6 1/4 | 23 | 20 3/8 | 18-3B | 1 | 17/32 | 1 3/8 | 1 |
| T | 15-25 | 4 | 5 1/2 X 3 | 5 | 200 | 750 | 31 | 16 | 10 | 42 | 34 | 25 1/2-4B | 1 | 25/32 | 2 3/16 | 1 1/2 |
| NOTE – Units of measure-weight-pounds; dimensions-inches; pressure-pounds per square inch. When replacing pumps, consult factory regarding applicable conversion kit that may be required. |
||||||||||||||||
