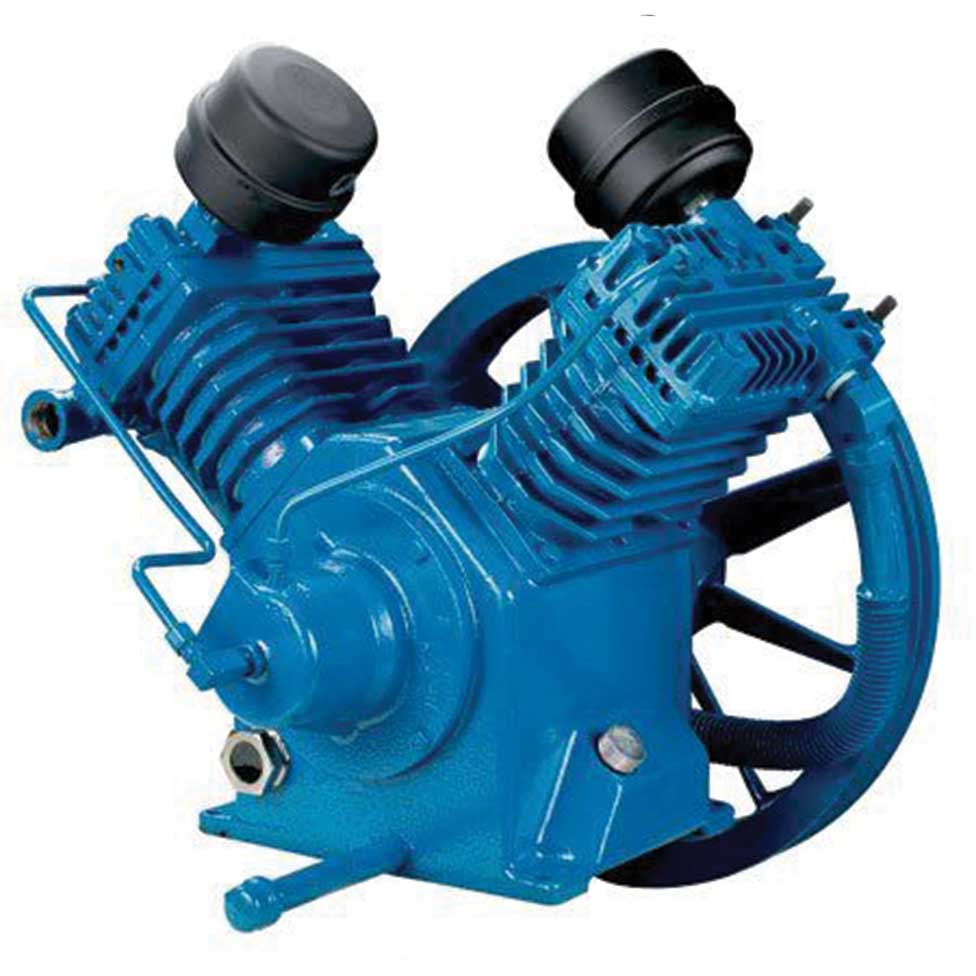

Jenny U Bare Pump 7 1/2 – 10HP
| Single Stage | ||||||||||||||||
| *MODEL | HP RANGE Electric |
NO CYC. | BORE | STROKE | MAX. PSI | APPX SHIP WT. |
A | B | C | D | E | F Diam Groove |
G | H | I | P NPT |
| F & FU | 1/3 – 1 | 1 | 2 1/2 | 1 3/4 | 150 | 36 | 7 3/4 | 5 9/16 | 3 3/8 | 10 3/8 | 10 1/4 | 10 3/8-1A | 3/8 | 9/32 | 7/8 | N/A |
| K & KU | 1 – 2 | 2 | 2 1/2 | 2 | 150 | 50 | 10 | 5 7/8 | 5 3/4 | 11 1/8 | 12 3/16 | 10 3/8-1A | 3/8 | 11/32 | 7/8 | 1/2 |
| G & GU | 3-5 | 4 | 2 1/2 | 2 3/8 | 150 | 85 | 11 1/2 | 7 1/8 | 6 1/8 | 15 1/4 | 14 1/2 | 10 3/8-2A | 1/2 | 11/32 | 7/8 | 1/2 |
| J & JU | 3-5 | 4 | 2 1/2 | 3 1/4 | 150 | 175 | 16 5/16 | 9 1/8 | 6 3/4 | 20 | 16 1/2 | 16-2A | 1/2 | 11/32 | 1 1/8 | 1/2 |
| Two Stage | ||||||||||||||||
| GT & GTU | 1 1/2-5 | 4 | 21/2 (3)-21/2 | 2 3/8 | 200 | 110 | 14 3/8 | 7 1/8 | 6 1/8 | 15 1/2 | 14 1/2 | 13 1/2-2A | 1/2 | 11/32 | 7/8 | 1/2 |
| W & WU | 3-5 | 4 | 21/2 (3)-21/2 | 3 1/4 | 200 | 175 | 16 5/16 | 9 1/8 | 6 3/4 | 20 | 16 1/2 | 16-2A | 1/2 | 11/32 | 1 1/8 | 1/2 |
| U | 7 1/2 10 | 4 | 4 3/4 X 2 1/2 | 3 | 200 | 340 | 21 1/16 | 10 5/8 | 6 1/4 | 23 | 20 3/8 | 18-3B | 1 | 17/32 | 1 3/8 | 1 |
| T | 15-25 | 4 | 5 1/2 X 3 | 5 | 200 | 750 | 31 | 16 | 10 | 42 | 34 | 25 1/2-4B | 1 | 25/32 | 2 3/16 | 1 1/2 |
| NOTE – Units of measure-weight-pounds; dimensions-inches; pressure-pounds per square inch. When replacing pumps, consult factory regarding applicable conversion kit that may be required. |
||||||||||||||||
| Weight | 340 lbs |
|---|---|
| Dimensions | 23 × 20.5 × 21 in |
| Model | |
| Compressor Horsepower | |
| Compressor Horsepower Range | |
| Compressor PSI | |
| Brand |
