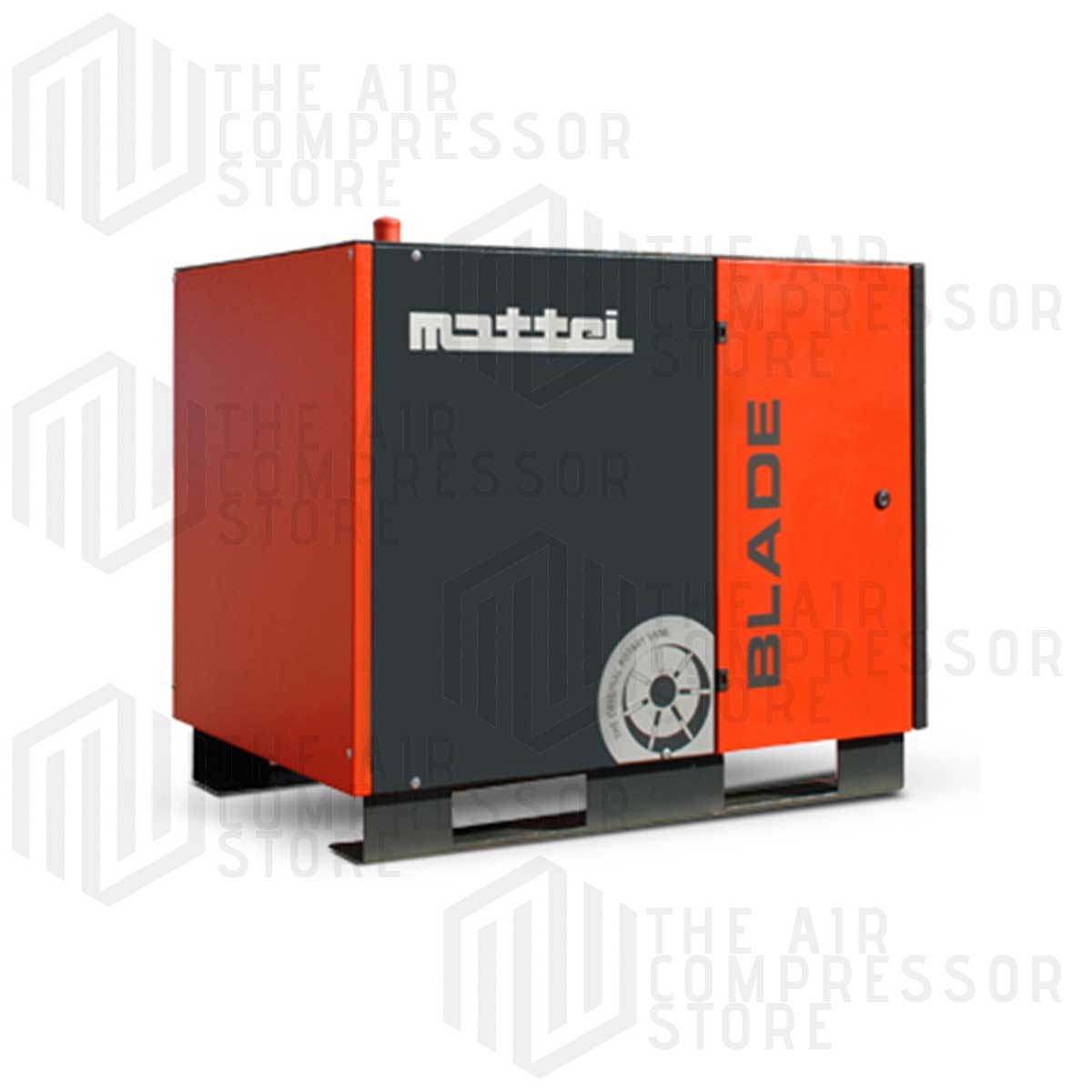

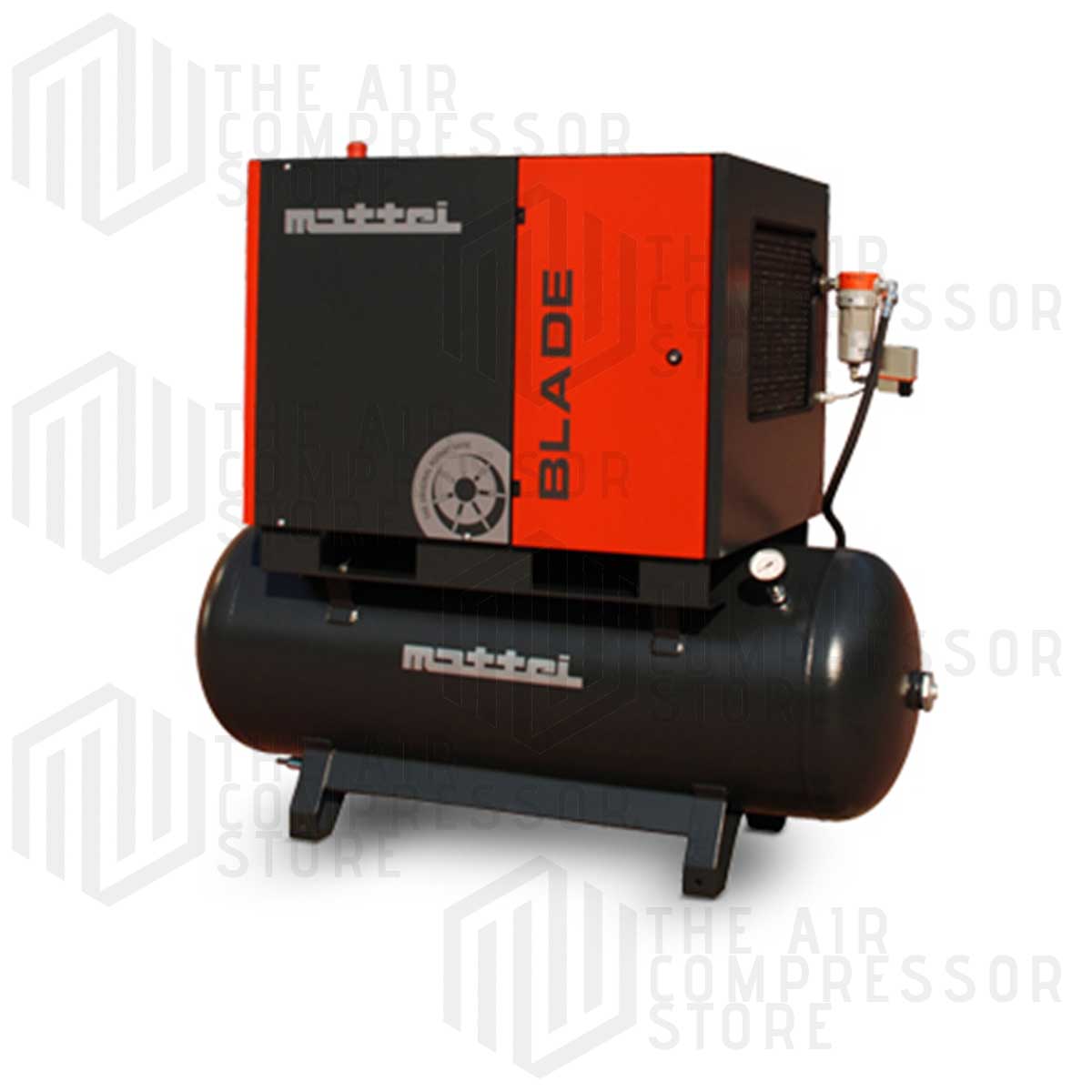

Mattei Blade Series 4-11

Mattei Blade Series 4-11

BLADE SERIES STANDARD FEATURES:
LOW OPERATING COSTS
Simple design and long-life components couple with the slow operating speeds only vane technology can deliver to produce lots of air, while consuming up to 20% less energy than rotary screw type compressors.

SIMPLE RELIABLE CONTROLS
Featuring our Maestro XB microprocessor based controller with Continuous and Automatic operating modes with standard load/unload operation.

HEAVY-DUTY BELT-DRIVEN TRANSMISSION
BLADE uses dual V belts engineered to last 3 years to drive the compressor at some of the slowest speeds in the industry. Our exclusive belt tensioning system is simple and ensures perfect alignment for long belt life. This design helps us to deliver the energy saving performance of our industrial class machines to smaller applications and at very affordable prices.

INHERENTLY QUIET
BLADE Series compressors are housed in a powder coat painted stainless steel cabinet. The slow rotating speeds of our vane technology deliver sound levels as low as 61 dB(A).

RELIABLE ROTARY VANE AIRENDS
BLADE features our proprietary single-rotor stator unit (RSU) that incorporates our legendary white metal Babbitt bush on the back and now an oversized radial ball bearing on the front to address the side load created by the belts. Mattei’s BLADE compressors are engineered for 24 hours a day service with our exclusive Meehanite® iron blades designed to last 100,000 hours.

CAPACITY CONTROLS ADAPT TO YOUR DEMANDS
The layout and design of every air system is different. Thus, Mattei provides you with two control schemes Automatic or Continuous modes as standard to better adapt to the demands and dynamics of your system. In both cases, intake air is controlled via the output of high and low set points on a preset pressure switch. A solenoid valve responds to fully open (Load) the intake valve at the low point, and then fully close (Unload) the intake air valve at the high point. This maintains line pressure within the design pressure range.

AUTOMATIC MODE
Automatic mode is ideal for systems with fluctuating air demands and/or plenty of air storage. It allows the compressor to automatically start and stop the motor to match intermittent air demands.

CONTINUOUS MODE
Continuous mode is ideal for applications with heavy air demands where the compressor is under heavy loads. In this case, it is best to run the motor constantly until you decide to turn it off.

PREMIUM EFFICIENCY MOTOR
BLADE models are equipped with premium efficient totally enclosed fan cooled TEFC electric motors as standard.

MOTOR STARTER
Full voltage motor is standard.

LUBRICANT
Benefit from our long-life all synthetic Rotoroil 8000 F2 lubricant.

AIR TREATMENT
Built-in Air cooled aftercooler with 18 F approach temperature.

MAINTENANCE
All components are easily accessible for fast easy maintenance. Annual maintenance operations only include changing the filters and oil at predetermined intervals. Oil and Separator filters are spin-on style. Long life belts are engineered for 3 years. Inexpensive parts and oil combine with long operating intervals to deliver significant savings over the life of the machine.

BLADE SERIES OPTIONAL FEATURES
AUTOMATIC CONDENSATE DRAIN AND SEPARATOR KIT
The kit is composed of a condensate separator and a timed electronic drain.

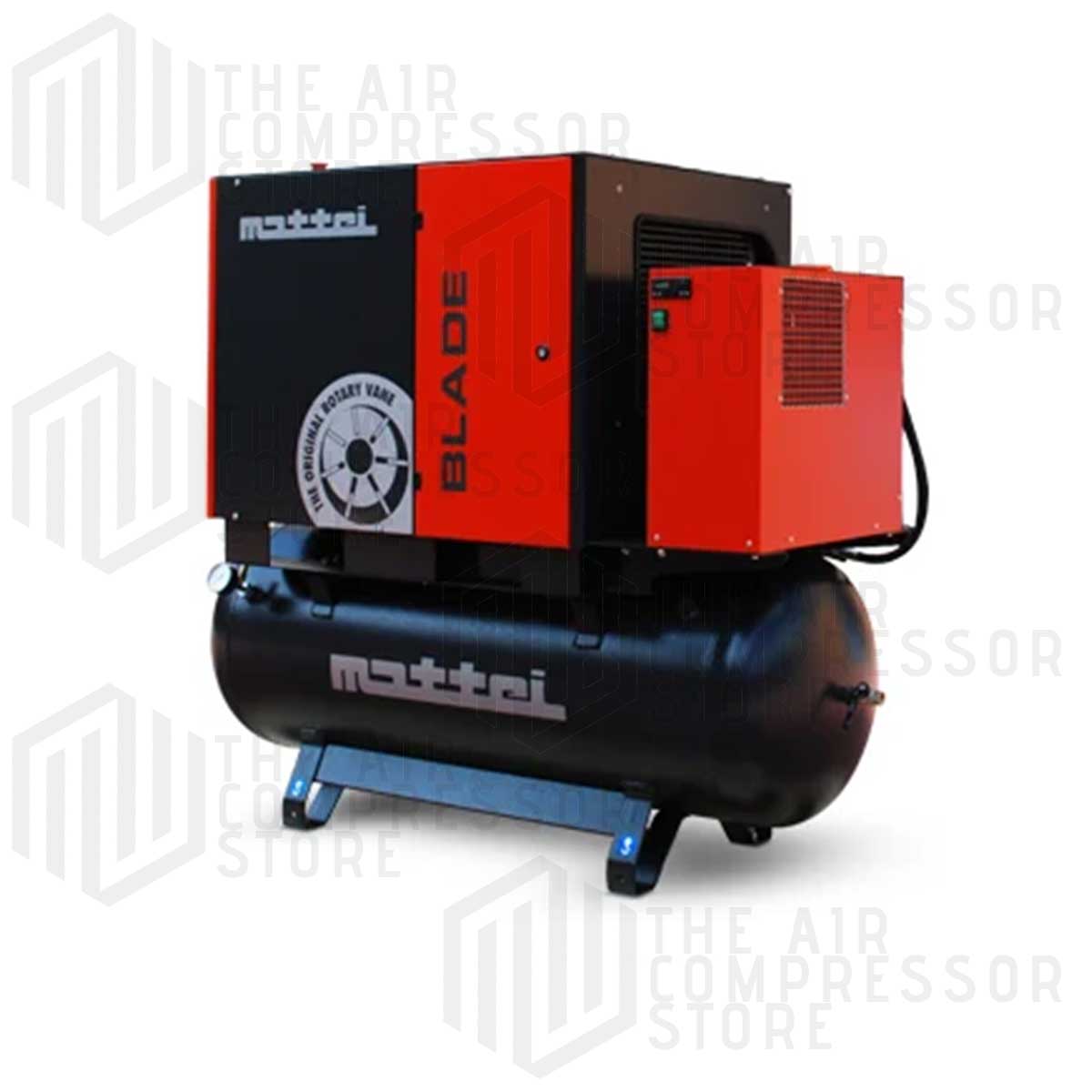

BLADE SE QUALITY AIR STATION
Our BLADE SE Quality Air Station provides you with an intelligent moisture separator with auto-drain, 1.0 micron prefilter, and a properly sized refrigerated air dryer to combat summer heat all mounted and piped onto an 80-gallon air receiver.

MAESTRO XB EXPANSION MODULE
It allows the remote signaling of on/off controls by means of volt free contacts and hourly programming. If more compressors are connected (max. 4), it allows the sequence management.

AIR TREATMENT PRODUCTS
Mattei offers comprehensive air treatment accessories to complete your air system including: in-line coalescing filters, refrigerated air dryers, desiccant air dryers, sterile in-line filters, air receiver tanks, timer and demand style condensate drains, and oil/water condensate separators.

Blade Series1. Intake Filter
2. Automatic Intake Valve
3. Oil Chamber
4. Compression Chamber
5. Oil Cooler
6. Oil Filter
7. Labyrinth
8. Compressed Air
9. Rotor
10. Coalescing Filter
11. Oil Return Valve
12. Minimum Pressure Non Return Valve
During the compression process, air is drawn through a filter into the “Rotor-Stator unit (RSU) which consists of a cylinder (stator) in which a rotor mounted eccentrically and tangential with the stator rotates. The rotor has longitudinal slots in which vanes slide.

Vanes are pushed against the stator internal surface by centrifugal force, generated by rotation. Air is compressed through the contraction in volume of the chamber, consisting of the stator, vanes and rotor, during rotation. Sealing between the moving parts, cooling and lubrication are ensured by oil injection. At the exit from the RSU the air-oil mixture passes through a filtering element, separating oil from the air, this oil is then recovered and returns to the intake.

The air-oil mixture leaving the compression unit passes through a separation chamber where velocity slows and gravity returns the bulk oil to the oil reservoir. The air and remaining oil aerosols then pass through a high efficiency air/oil separator coalescing filter that remove almost all oil residuals from the air. By passing through mechanical and coalescing separation stages, the mixture of compressed air and oil is purified until the maximum oil carry-over in the air does not exceed 3 ppm (parts per million).

A cooling air flow produced by an auxiliary fan passes ambient air through the compressor cabinet and removes heat from the oil cooler generated during the compression. Compressed air leaves the compressor through a valve, which has the function of keeping a minimum pressure inside the oil chamber, so as to ensure suitable operation when the compressor is delivering air.
