Mattei MWP Series Canister Desiccant
Price range: $4,100.00 through $43,000.00

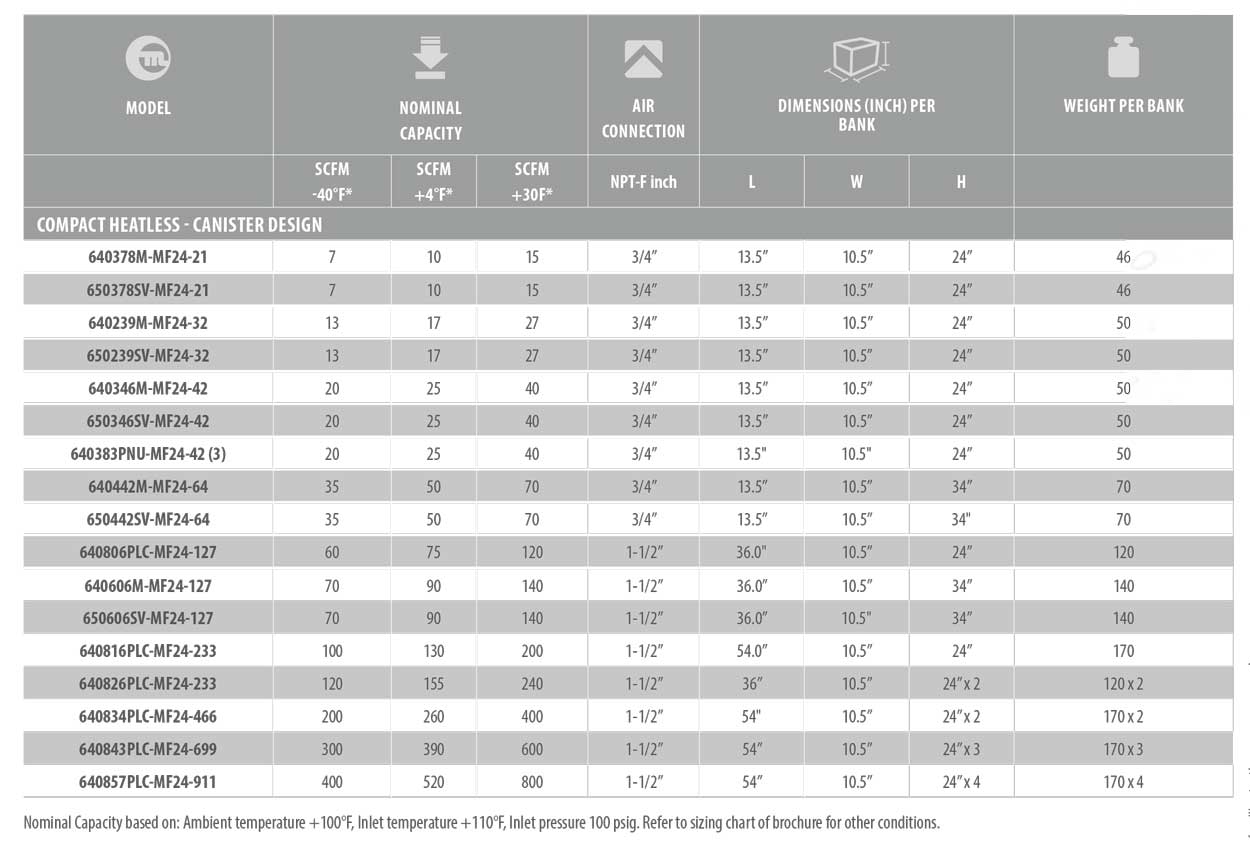

View the selection chart below for CFM @ PDP for model informaiton.
Mattei MWP Series Canister Desiccant
MWP Series desiccant dryers are ideal for providing clean, dry air without refrigeration. -40 F is ideal where air lines are subject to icing from freezing temperatures. 4 F (3% R.H.) is ideal for waterborne paint systems. 30 F is ideal to replace a refrigerated dryer in dirty places.
SMART CYCLING TO MAINTAIN THE LOWEST PRESSURE DEW POINTS
- Synchronous compressor-dryer control reduces air consumption & increases savings
- Chronotrack service intervals automatically sends requirement alert via email
- Keep electronic record of dryer service notes and logging/tracking preferences
- App provides service part numbers & required quantities for each specific dryer model.
- Pre & After filters ARE included in the unit price (FILTERS SHIPPED LOOSE)
- Standard electrical requirement of 115V/1Ph/60Hz. 0.21 kW
- MWP Series Canister dryer working pressure range: 90-190 psig
MWP SERIES CANISTER DESICCANT AIR DRYER (CONTROL TYPES)
- M: NEMA 4 Micro Logic Timer alternates between towers every two minute interval
- SV: NEMA 4 SmartValv Technology offers selectable extra cycling of canisters in order to maintain superior dew points, optional synchronous compressor-dryer control reduces unnecessary purge loss, and SmartValv also can provide dryer service alerts via email
- PLC: Programmable logic control box utilized on all larger sized dryers (>120 cfm) whereby one canister per row of dryers regenerates every 45 seconds in a linear sequence
- PNU: NEMA 7 pneumatic-controlled (explosion-proof rating dryer requires absolutely NO electrical supply.
| Weight | 140 lbs |
|---|---|
| Dimensions | 36 × 10.5 × 34 in |
| Brand | |
| Dryer CFM Range | |
| Dryer PSI | |
| Connection | |
| Dryer CFM | 7, 10, 13, 15, 17, 20, 25, 27, 35, 40, 50, 60, 70, 75, 90, 100, 120, 130, 140, 155, 200, 240, 260, 400, 520, 800 |
| Model | 640239M-MF24-32, 640346M-MF24-42, 640378M-MF24-21, 640383PNU-MF24-42 (3), 640442M-MF24-64, 640606M-MF24-127, 640806PLC-MF24-127, 640816PLC-MF24-233, 640826PLC-MF24-233, 640834PLC-MF24-466, 640843PLC-MF24-699, 640857PLC-MF24-911, 650239SV-MF24-32, 650346SV-MF24-42, 650378SV-MF24-21, 650442SV-MF24-64, 650606SV-MF24-127 |
