Mi-T-M ACS Series 7.5 HP Industrial Two-Stage Compressors are engineered to handle the rigorous workloads of high-volume commercial shop environments. Optimized for heavy automotive service bays, commercial tire shops, manufacturing floors, and multi-user woodshops, these stationary units deliver an expansive 23.5 CFM @ 175 PSI.

Built with rugged, 100% cast-iron two-stage pumps and high-torque motors, this series provides the rapid recovery times needed to run high-demand pneumatic tools like sandblasters, 1-inch impact wrenches, and paint booths simultaneously. With choices between Horizontal (H) and Vertical (V) layouts, along with factory-configured Deluxe M-Series packages, there is a configuration tailored to any industrial application.

Understanding the Model Configurations

The 7.5 HP model codes indicate the exact tank orientation, electrical infrastructure, and package tier required for your shop:

1. Tank Footprints: Horizontal vs. Vertical

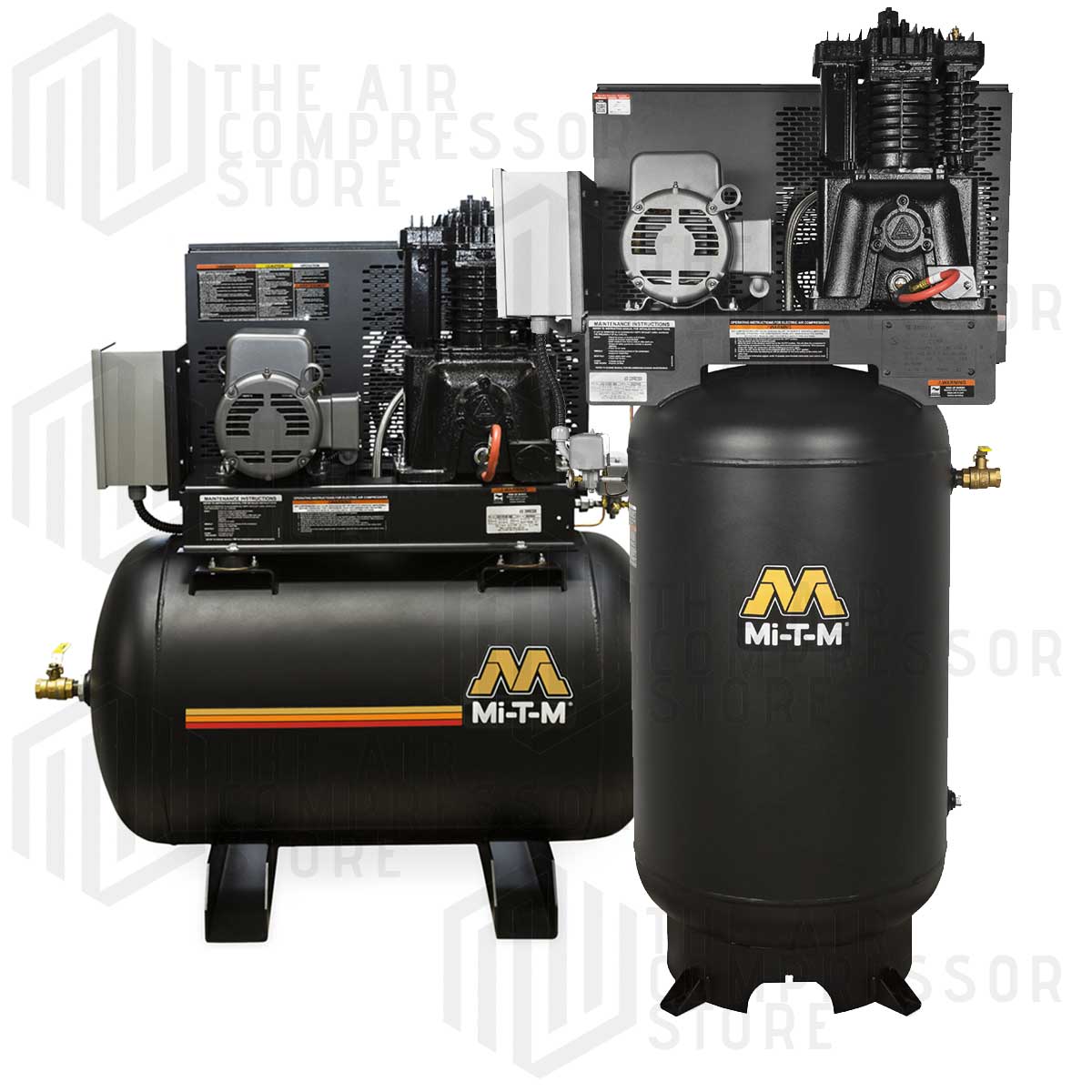

• Horizontal Units (-80H / -80HM): Mounted to a traditional low-profile, 80-gallon horizontal receiver tank. These are ideal for facilities preferring a low center of gravity, or for placement along service bays and under heavy shelving units.
• Vertical Units (-80V / -80VM): Mounted to a space-saving 80-gallon vertical receiver tank. Designed specifically for facilities where floor space is at a premium, allowing the compressor to tuck tightly into a corner or between shop equipment.

2. Standard vs. Deluxe M-Series (Suffix “M”)

• Standard Models (-80H / -80V): Feature premium components, two-stage pumps, high-torque industrial motors, magnetic starters, and an 80-gallon ASME-coded tank.
• Deluxe M-Series (-80HM / -80VM): Factory-loaded with a premium air-treatment and protection package, including:
  • Air-Cooled Aftercooler: Rapidly cools discharge air temperatures to dramatically condense and drop out up to 65% of moisture before it can enter the receiver tank.
  • Low Oil Sensor Indicator: Automatically monitors oil levels and prevents the unit from cycling if lubricant drops below a safe threshold, protecting internal components.
  • Automatic Electronic Tank Drain: Programmed to automatically purge condensed water from the bottom of the tank at set intervals, eliminating manual draining routine.

Core Engineering & Industrial Performance Components

• 100% Cast-Iron Two-Stage Pump: Splash-lubricated with a heavy-duty cast-iron crankcase, cylinders, and heads. Features large, deep-finned cooling areas and precision-ground Swedish steel reed valves for superior volumetric efficiency and long-term thermal resistance under continuous use.
• Industrial Low-RPM Motors: Equipped with heavy-duty, open drip-proof (ODP) industrial motors designed for high-starting torque, cool operation, and reduced mechanical wear.
• Complete Overload Protection: NEMA 1 magnetic starters come standard across all 7.5 HP models to provide reliable, independent thermal overload protection right out of the box.
• Vibration-Dampened Construction: Built on a heavy-gauge 3/16-inch steel base plate to eliminate harmonic vibration, minimizing wear on tank welds and stabilizing the entire platform.
• Premium Accoutrements: Includes a flexible stainless-steel braided discharge hose for extreme heat and vibration resistance, large canister intake filter/silencers, an integrated hour meter for easy maintenance tracking, and a crystal-clear oil level sight glass.

Electrical Selection Guide

Locate your building’s specific voltage and phase to identify the exact 7.5 HP two-stage model required:

Technical Specifications

• Horsepower: 7.5 HP
• Airflow Output: 23.5 CFM @ 175 PSI
• Pressure Switch Settings: 145 to 175 PSI
• Tank Capacity: 80-Gallon (ASME Certified)
