Mi-T-M AES Series 15 HP Industrial Two-Stage Compressors

Mi-T-M AES Series 15 HP Industrial Two-Stage Compressors

Mi-T-M AES Series 15 HP Industrial Two-Stage Compressors represent the pinnacle of reciprocating pneumatic power. Engineered exclusively for heavy-industrial plants, large-scale manufacturing facilities, commercial tire operations, and multi-user sandblasting yards, these flagship units deliver a massive 46.5 CFM @ 175 PSI (200 PSI Max).

By pairing a high-displacement “E” series pump with a high-torque 15 HP industrial motor on an expansive 120-gallon horizontal receiver tank, the AES series rivals small rotary screw compressors in raw volume output while maintaining the straightforward maintenance, reliability, and lower service costs of a classic piston design. Available strictly in three-phase power configurations, these units are built to run under grueling, continuous workloads.

Understanding the Model Configurations

The 15 HP model codes indicate your facility’s electrical infrastructure and choice of package tier:

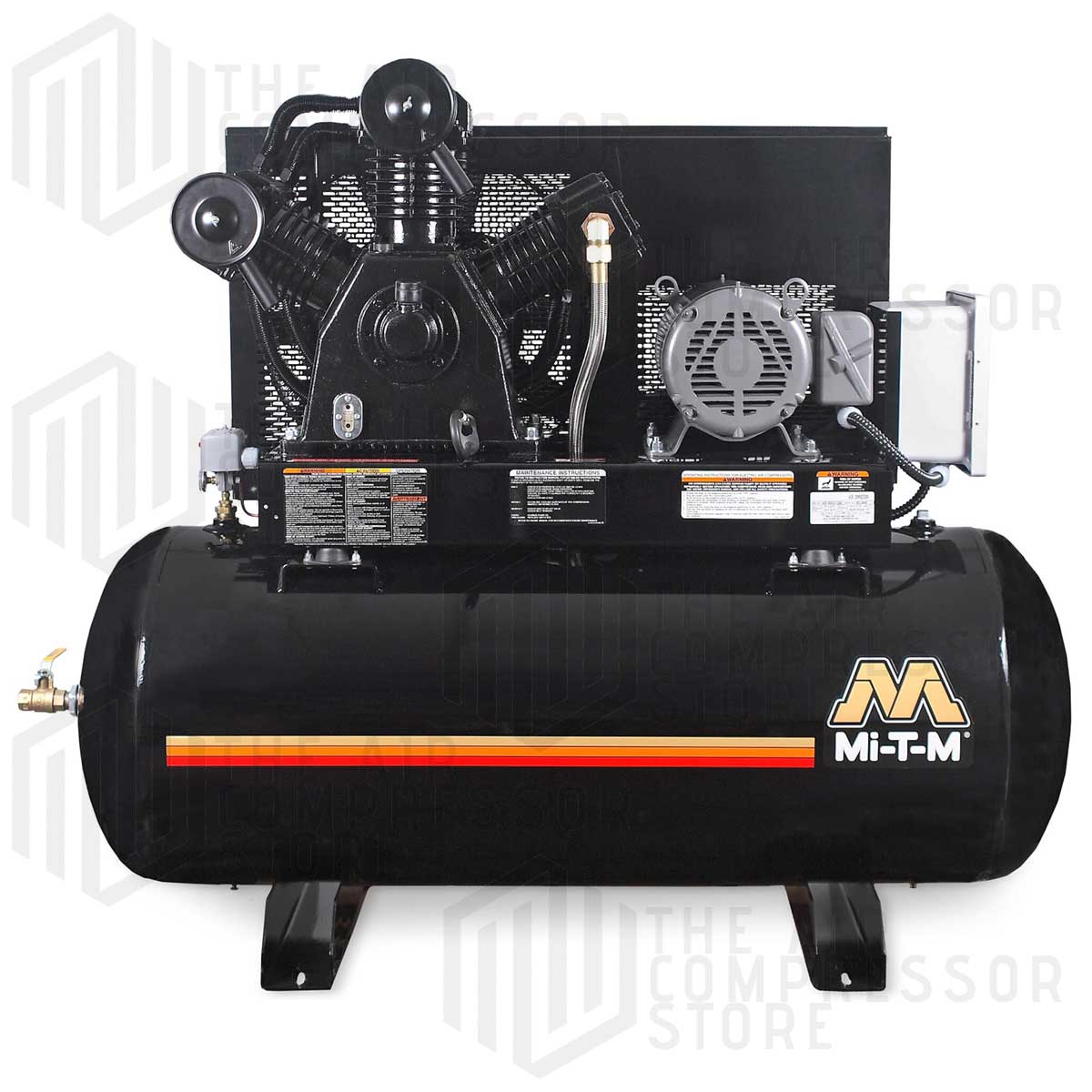

1. Standard Models (-120H)

The standard configuration provides raw, heavy-duty pneumatic power right out of the box, featuring the industrial pump, premium motor, pre-wired magnetic starter, and an ASME-coded 120-gallon horizontal tank.

• Models: AES-20315-120H, AES-23315-120H, AES-46315-120H

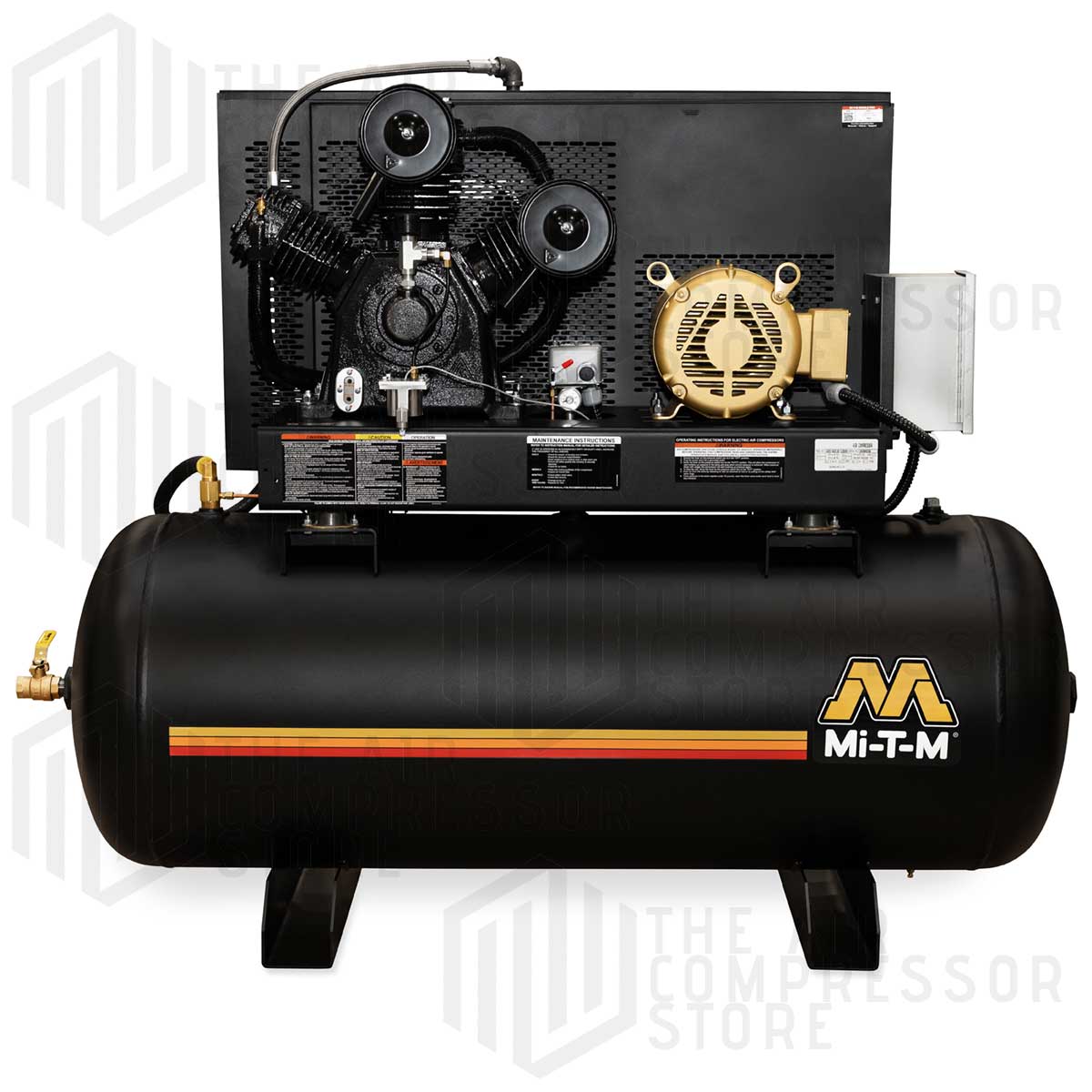

2. Deluxe M-Series Models (Suffix “HM”)

The Deluxe package is factory-loaded with specialized air-treatment and component-protection upgrades, maximizing tool performance and cutting down manual maintenance:

• Air-Cooled Aftercooler: Lowers the temperature of compressed air immediately to drop out up to 65% of water vapor before it can ever enter the 120-gallon tank.
• Low Oil Sensor Indicator: Automatically monitors pump lubrication levels and prevents the unit from starting if oil is low, saving your crankshaft and cylinders from catastrophic damage.
• Automatic Electronic Tank Drain: Programmed to automatically purge moisture from the bottom of the receiver tank at set intervals, ensuring your tank remains dry and corrosion-free.
• Models: AES-20315-120HM, AES-23315-120HM, AES-46315-120HM

Core Engineering & Heavy Industrial Components

• 100% Cast-Iron “E” Series Pump: A massive, ultra-high-displacement two-stage pump featuring solid cast-iron cylinders, heads, and crankcase for ultimate thermal stability. Precision-ground Swedish steel reed valves provide maximum volumetric efficiency under grueling, non-stop workloads.
• Industrial Low-RPM Motors: Powered by continuous-duty, high-torque open drip-proof (ODP) motors engineered to run cool, lower ambient shop noise levels, and extend belt life.
• NEMA 1 Magnetic Starters: Included as a standard feature across all 15 HP models to provide independent, reliable thermal overload protection.
• Vibration-Dampened Construction: Hard-mounted to a thick, heavy-gauge 3/16-inch steel base plate that completely eliminates harmonic vibration, preventing structural stress on the tank welds.
• Premium Fleet-Grade Accoutrements: Equipped with a flexible stainless-steel braided discharge hose for extreme heat and vibration resistance, large canister intake filter/silencers with replaceable elements, an integrated hour meter for easy maintenance tracking, and an oil sight glass.

Electrical Selection Guide

Locate your building’s specific voltage to identify the exact 15 HP three-phase two-stage model required:

Technical Specifications

• Horsepower: 15.0 HP
• Airflow Output: 46.5 CFM @ 175 PSI
• Maximum Pressure: 200 PSI
• Tank Capacity: 120-Gallon Horizontal (ASME Certified)
• Dimensions (LxWxH): 74″ x 22.5″ x 47″
