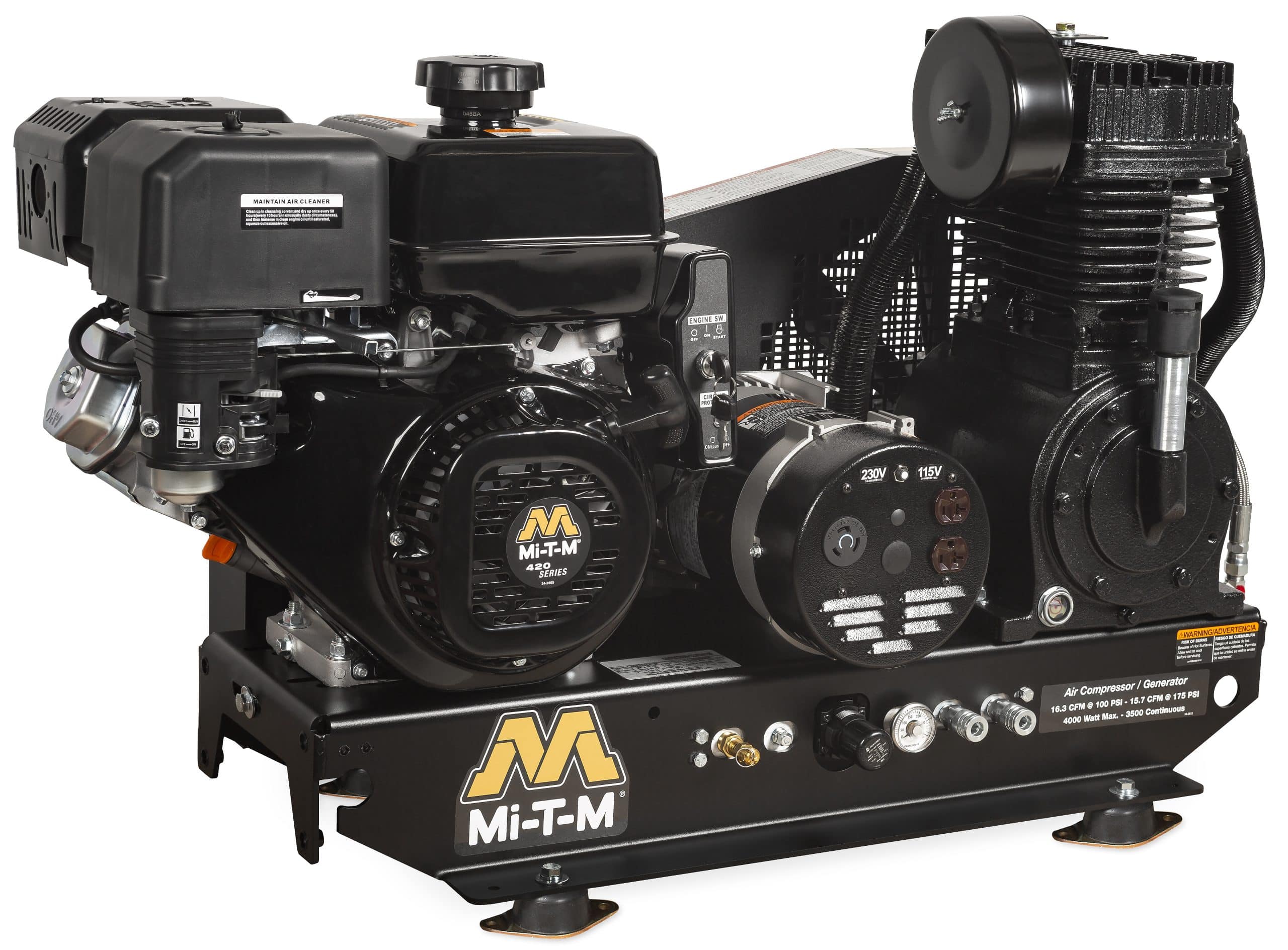

Mi-T-M Compressor/Generator AG2-SM14-BE 4000W 13HP

Name: Mi-T-M Compressor/Generator AG2-SM14-BE 4000W 13HP - The Air Compressor Store
SKU: AG2-SM14-BE
Price: 3697.61 USD
Availability: InStock

Original price was: $4,929.00.Current price is: $3,697.61.

SKU: AG2-SM14-BE Category: Compressor Generator

AG2-SM14-BE

Ideal for jobsites and work trucks, the air compressor/generator combination units go a long way to increasing productivity. Operate air tools and power electrical tools anywhere.

Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A receptacles and (1) NEMA L6-20R 240V, 20A receptacles

Frame: 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12 or 16 ½-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.
Equipped with electric start – battery, box and cables not included.

Specifications

CFM @ PSI

16.4 @ 90
CFM @ PSI

15.7 @ 175
Alternator Wattage: Max. Output

4000 watts
Alternator Wattage: Cont. with Comp. On-Load

2300 watts
Alternator Wattage: Cont. with Comp. Off-Load

3500 watts
Displacement/ Engine

420cc Mi-T-M OHV

Weights & Dimensions

Net Weight

325.00 lbs.
Shipping Weight

390.00 lbs.
Length

47.00 in.
Width

22.00 in.
Height

28.00 in.

Weight	325 lbs
Compressor CFM	15.7
Compressor CFM Range	15 – 24.9
Compressor PSI	175
voltage	Engine: 420cc Mi-T-M OHV, Output: 4000 watts
Compressor Horsepower	13
Compressor Horsepower Range	10 – 20 HP
Tank Size	BASE MOUNT
Tank Size Range	Base Mount
Brand	Mi-T-M Corporation
Model	AG2-SM14-BE
