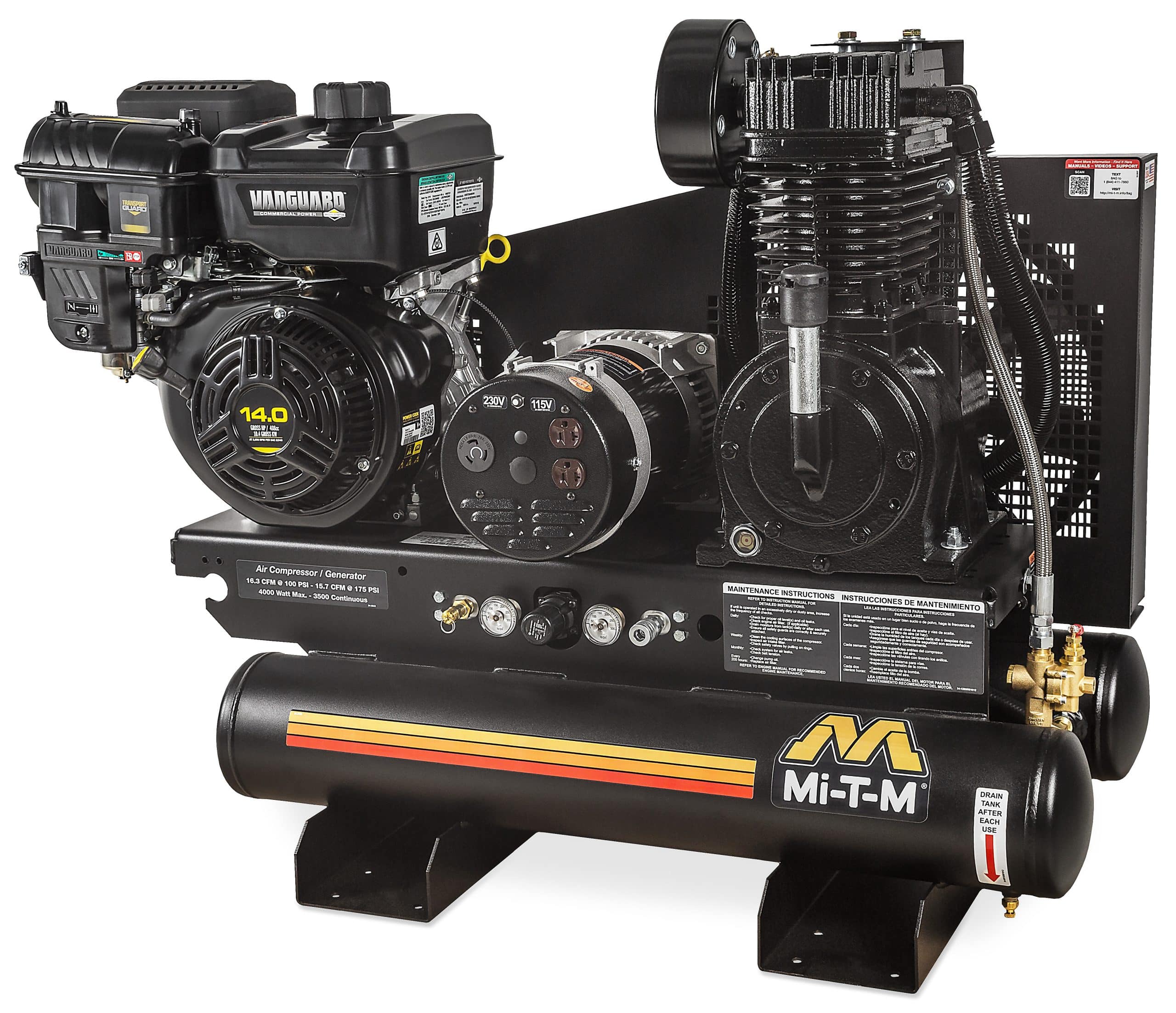

Mi-T-M Compressor/Generator AG2-SV14-08M1E 4000W 14HP

AG2-SV14-08M1E

Ideal for jobsites and work trucks, the air compressor/generator combination units go a long way to increasing productivity. Operate air tools and power electrical tools anywhere.

Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A receptacles and (1) NEMA L6-20R 240V, 20A receptacles

Frame: Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12 or 16 ½-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.
Equipped with electric start – battery, box and cables not included.

Specifications

• CFM @ PSI

  16.4 @ 90

• CFM @ PSI

  15.7 @ 175

• Alternator Wattage: Max. Output

  4000 watts

• Alternator Wattage: Cont. with Comp. On-Load

  2300 watts

• Alternator Wattage: Cont. with Comp. Off-Load

  3500 watts

• Displacement/ Engine

  408cc Vanguard OHV
