Mi-T-M Gas-Drive Industrial Compressors

Mi-T-M Gas-Drive Industrial Compressors

Mi-T-M Gas-Drive Industrial Compressors are engineered for the most demanding mobile and remote applications. This lineup features high-displacement engines and two-stage pumps designed to power heavy-duty pneumatic tools, such as 1-inch impact wrenches and grinders, making them the primary choice for service technicians, agricultural maintenance, and large-scale construction crews.

The AM2 Series: 20 & 30 Gallon Workhorses

The AM2 series represents the ultimate in wheeled portability for high-volume air. These units are built on rugged, heavy-gauge steel frames with “stroller” style handles and oversized tires to navigate rough terrain.

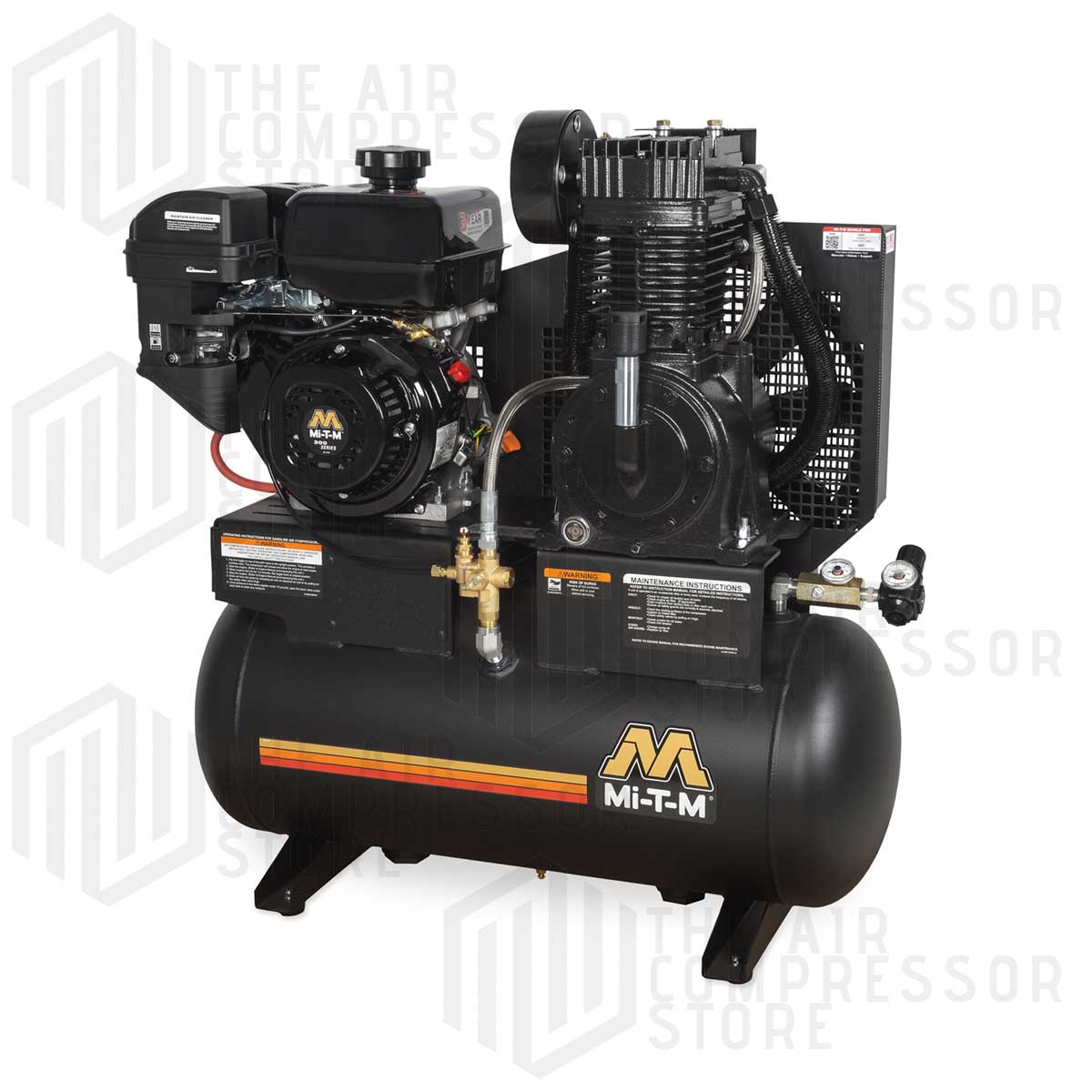

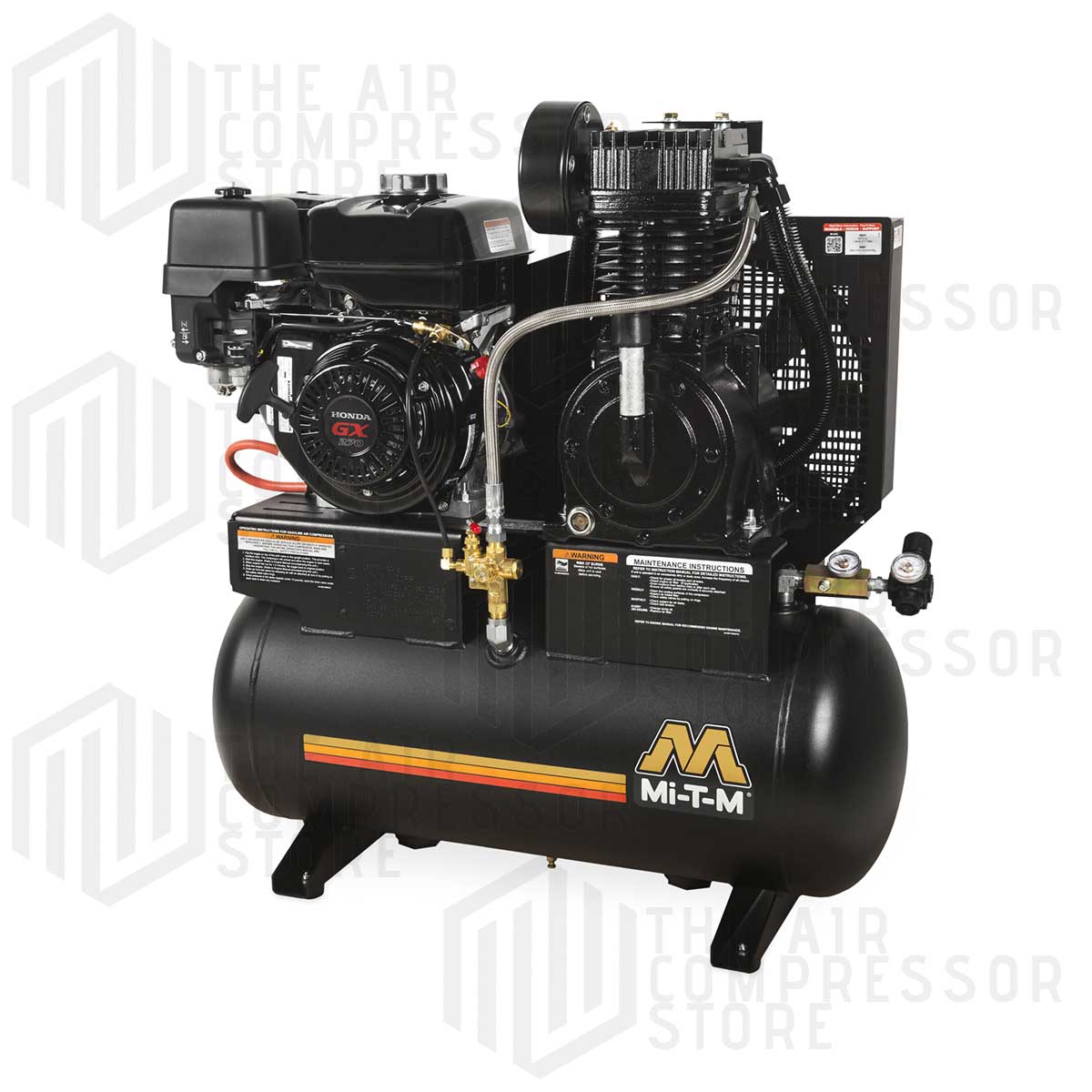

• Engine Options: Powered by Honda (SH) or Mi-T-M (SM) 270cc class engines.
• Capacity: Available in 20-gallon or 30-gallon horizontal tanks to provide a massive air reserve.

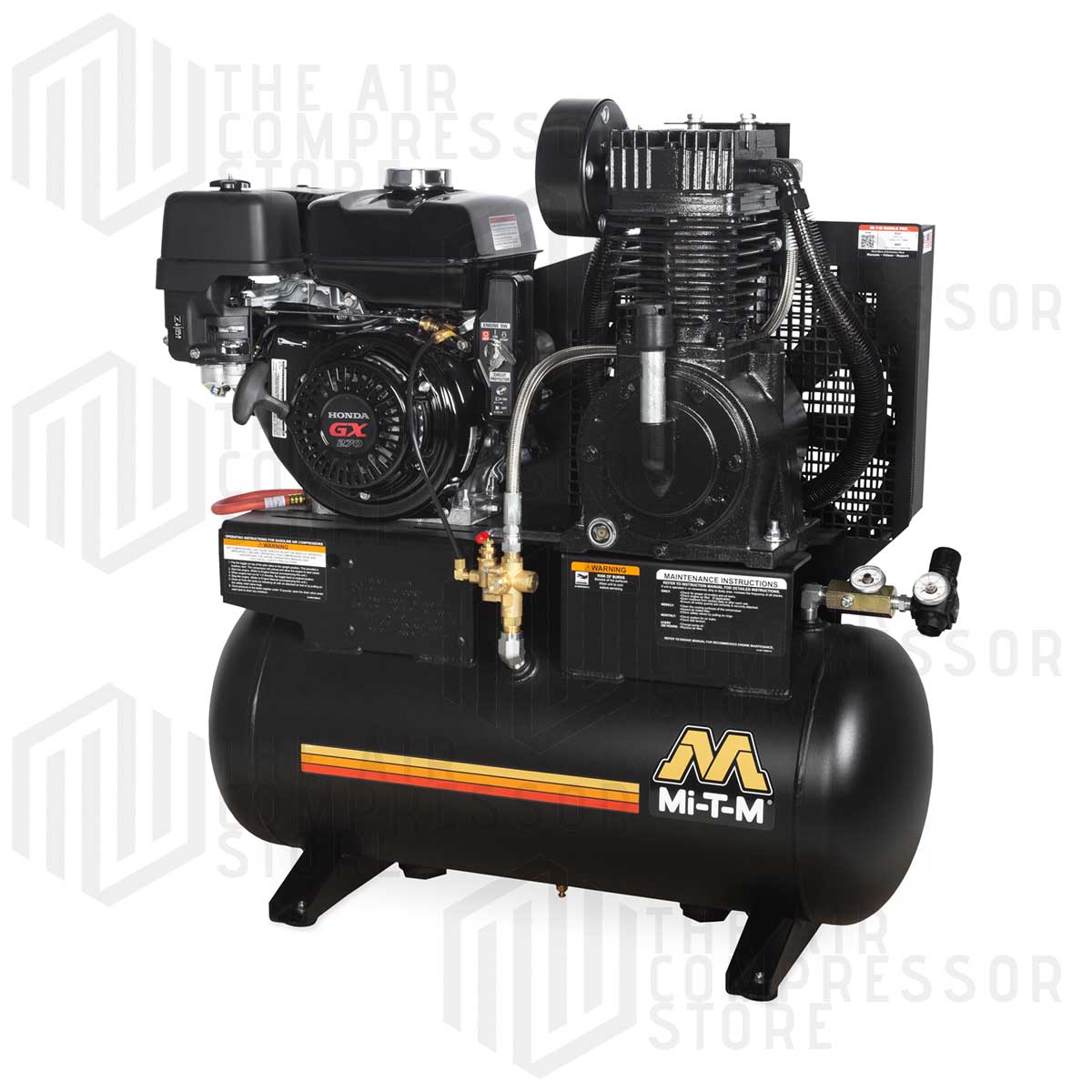

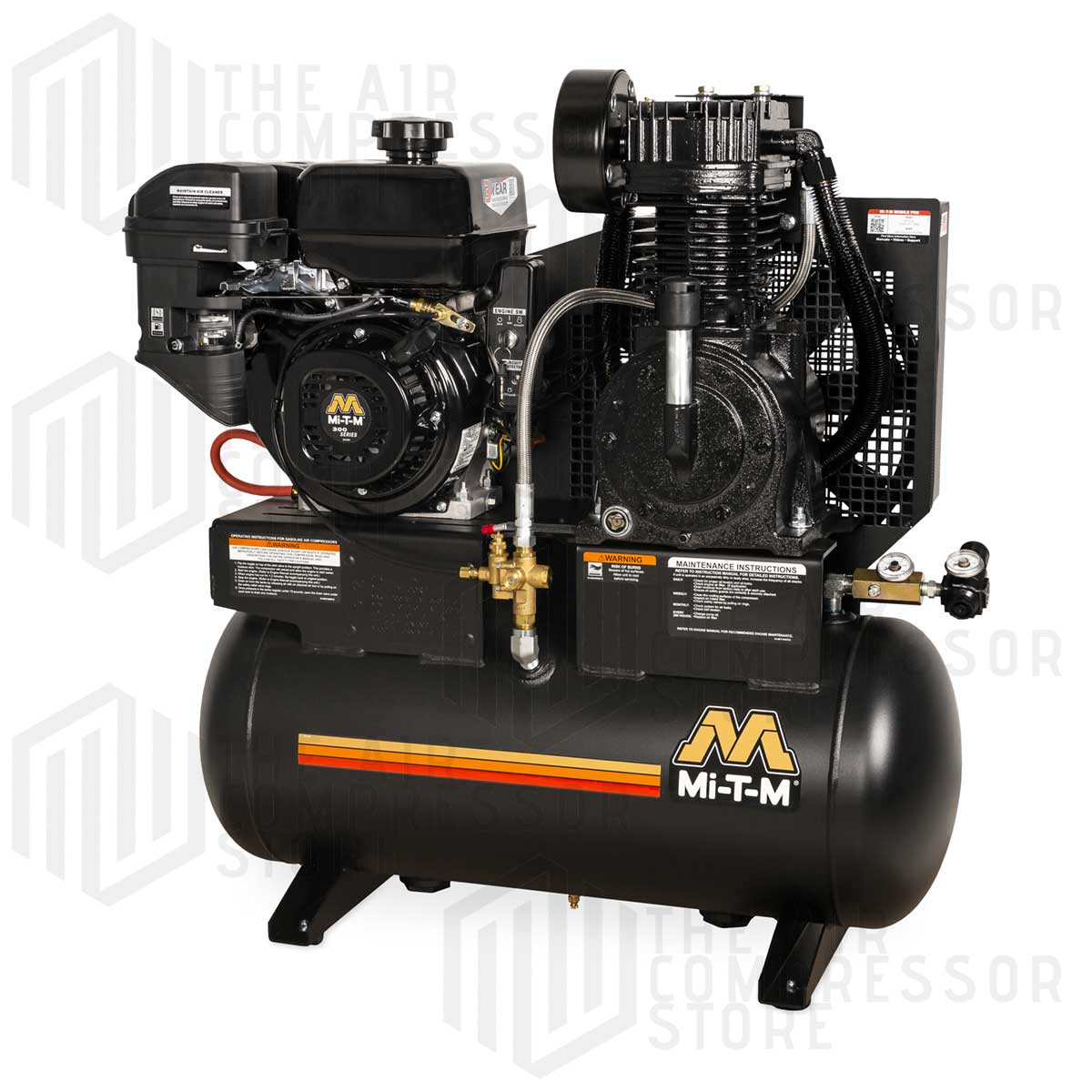

• Electric Start: Models ending in “E” feature a 12V electric start for effortless operation.

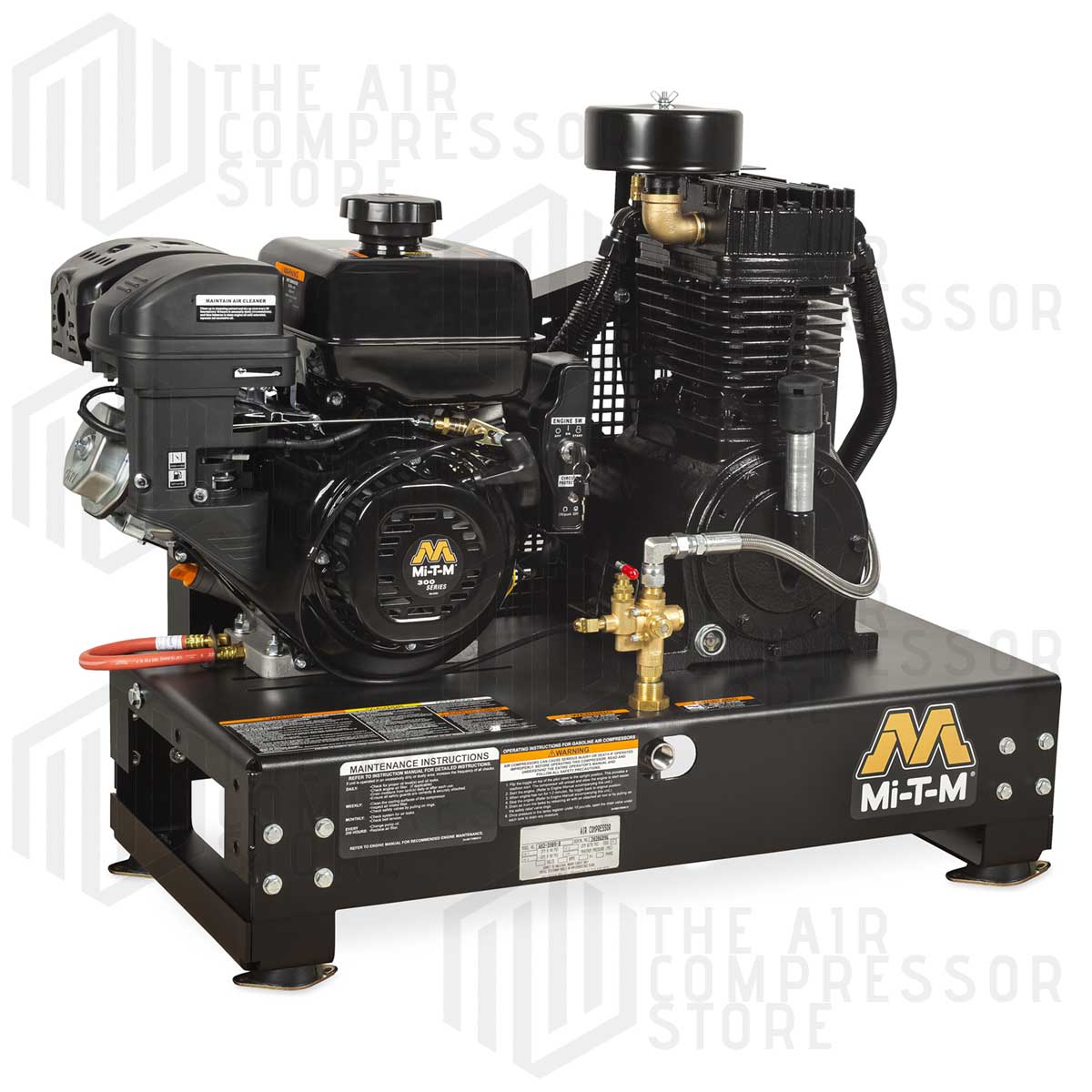

• Base-Mount Options: The AM2-SH09-B and AM2-SM09-B are “Base-Mount” versions, designed specifically for permanent installation on service truck beds or stationary platforms.

The ABS Series: Two-Stage Power Plants

The ABS (Air Base Station) series is the heavy-hitter of the Mi-T-M lineup. These units utilize two-stage pumps, which compress air in two steps to reach a higher maximum pressure (175 PSI) while maintaining cooler operating temperatures.

30-Gallon Horizontal (30H) & 80-Gallon Horizontal (80H)

These units provide industrial-grade air storage for high-production jobsites and mobile mechanic shops.

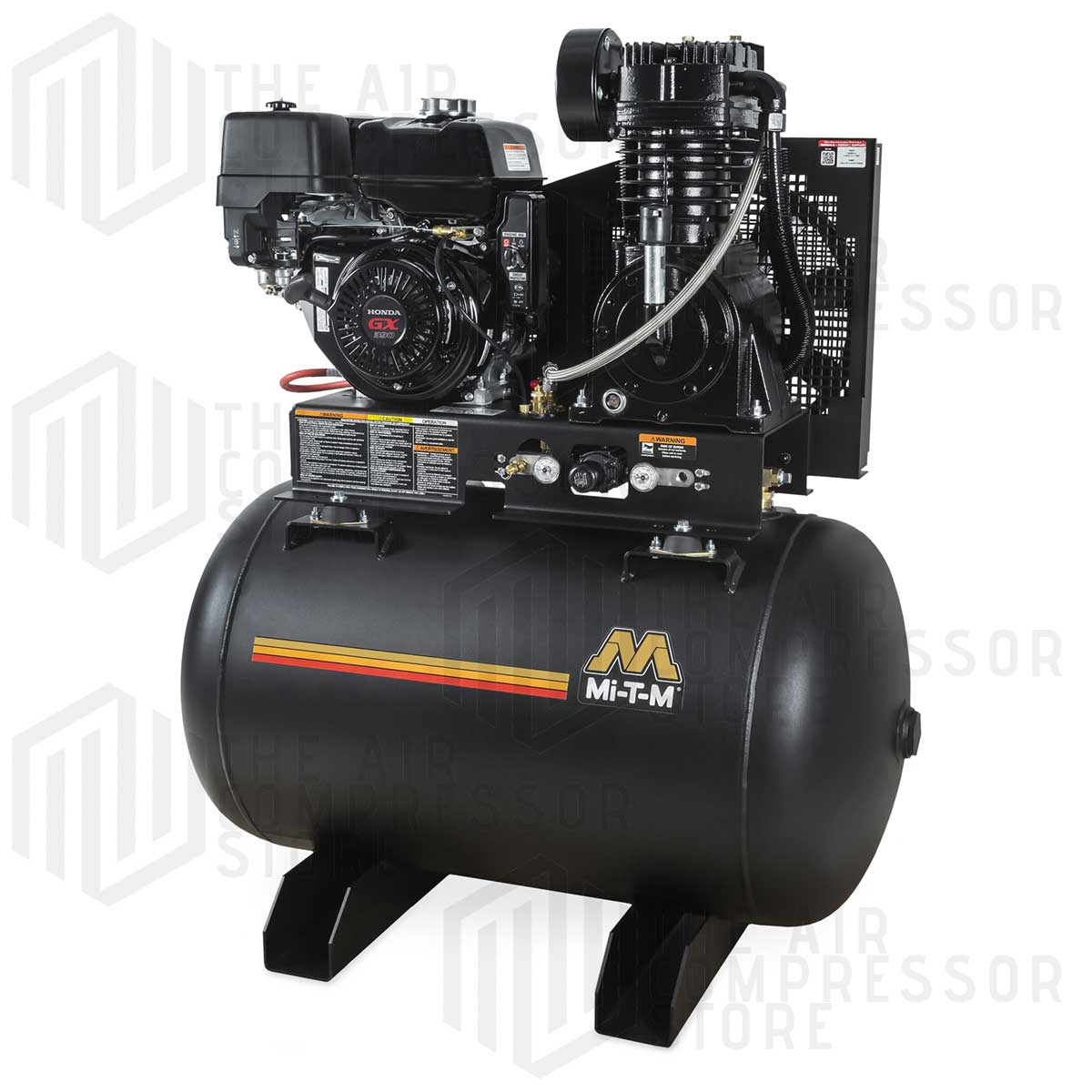

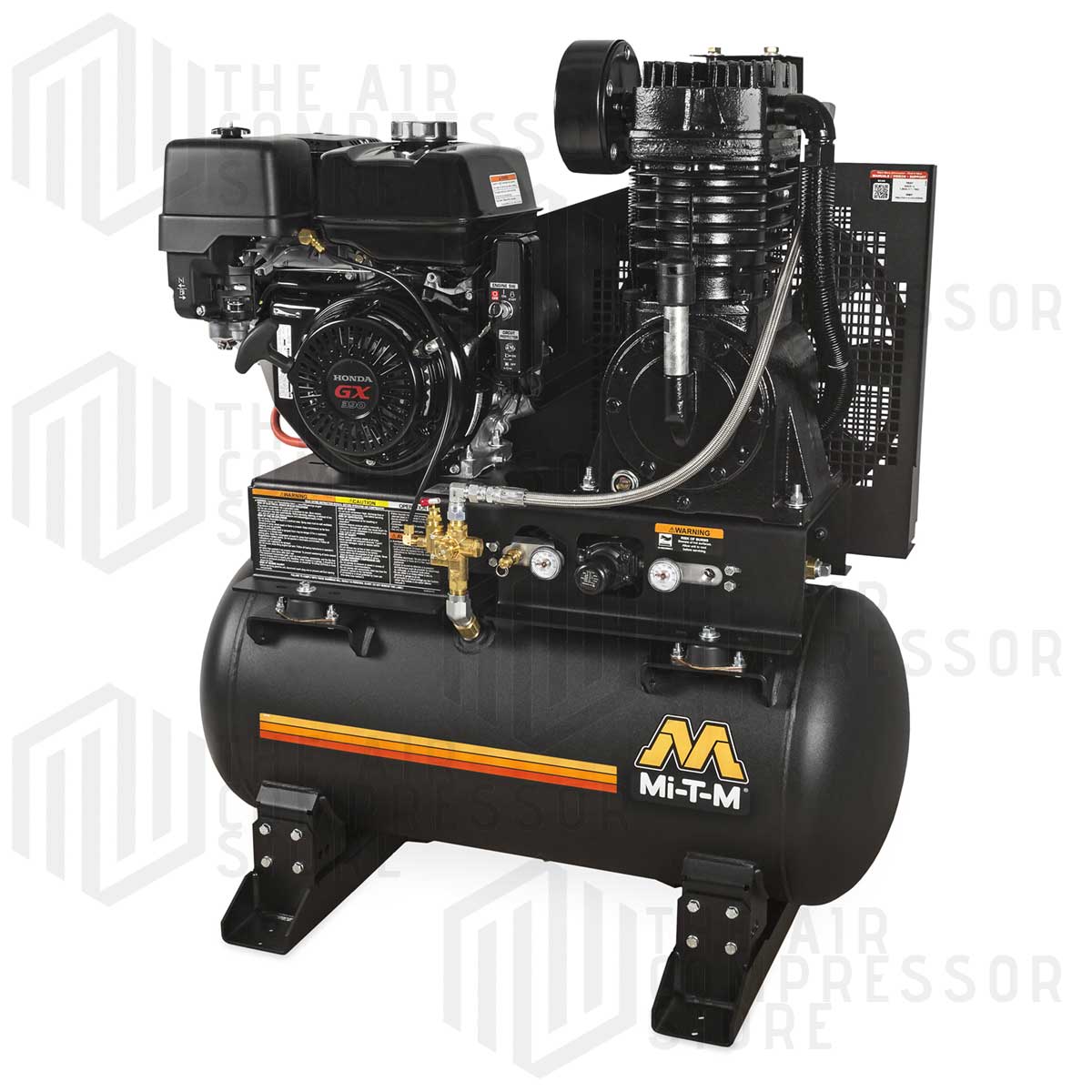

• ABS-13H-30H / 80H: Powered by the legendary Honda GX390 (389cc) engine.

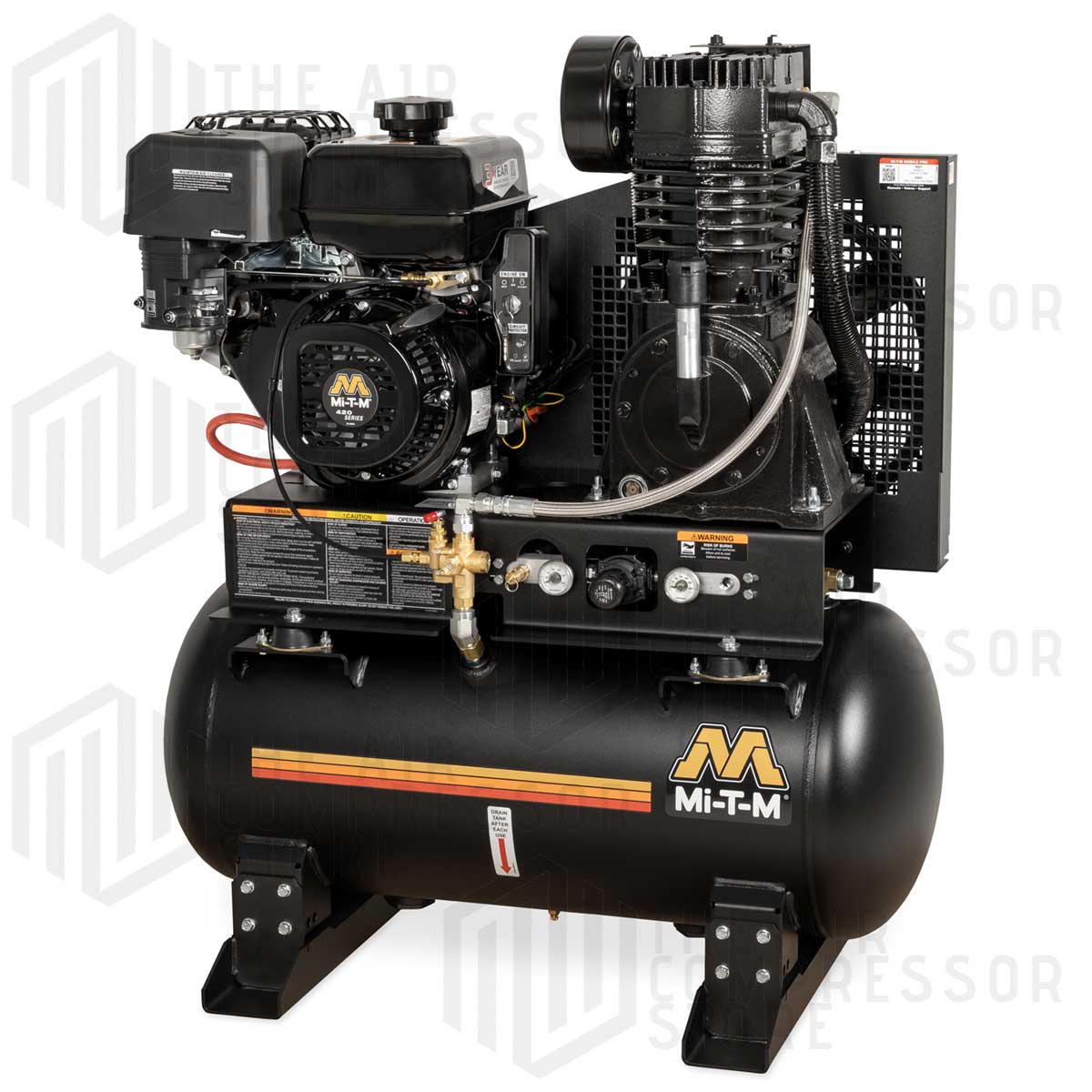

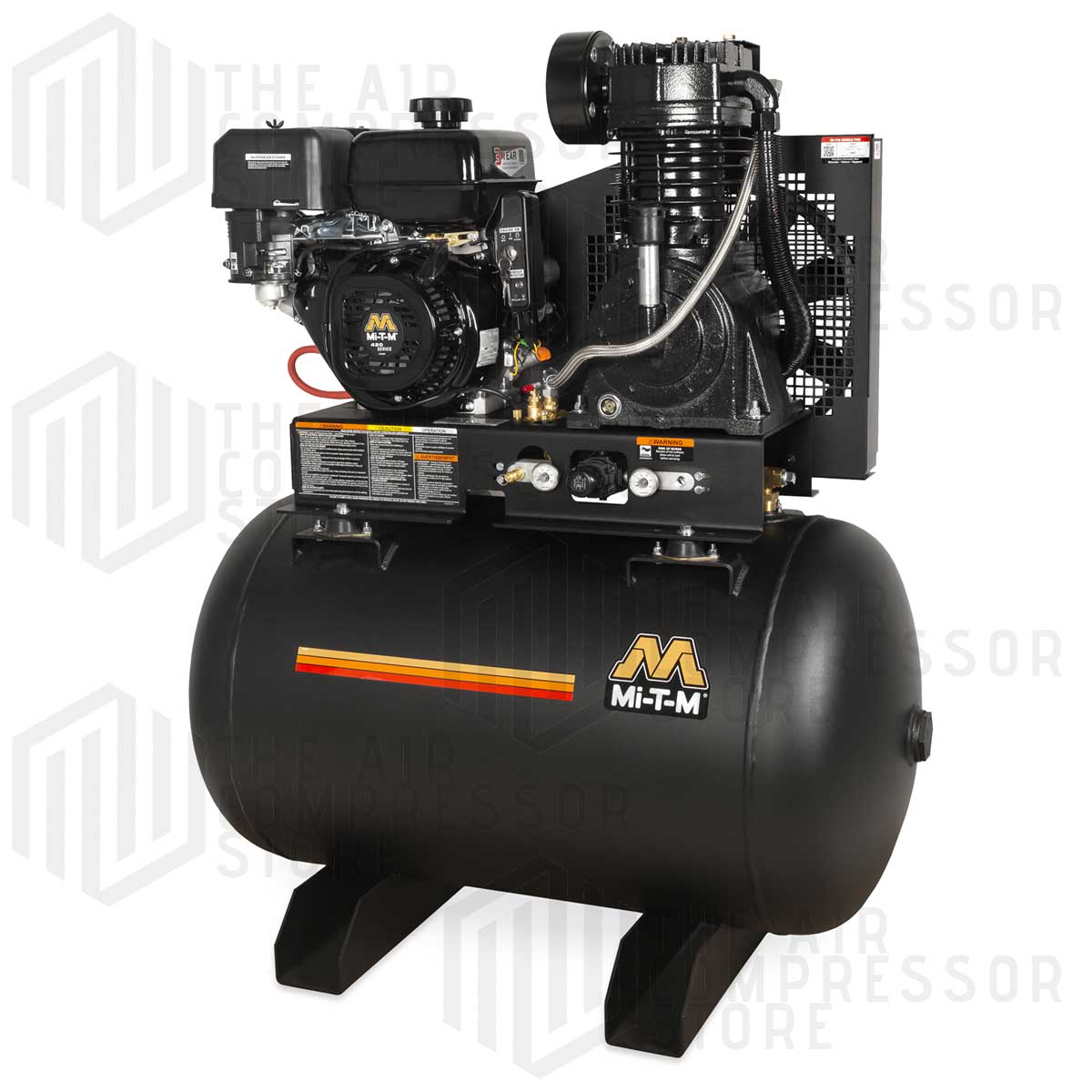

• ABS-14M-30H / 80H: Powered by a high-output Mi-T-M 420cc engine.

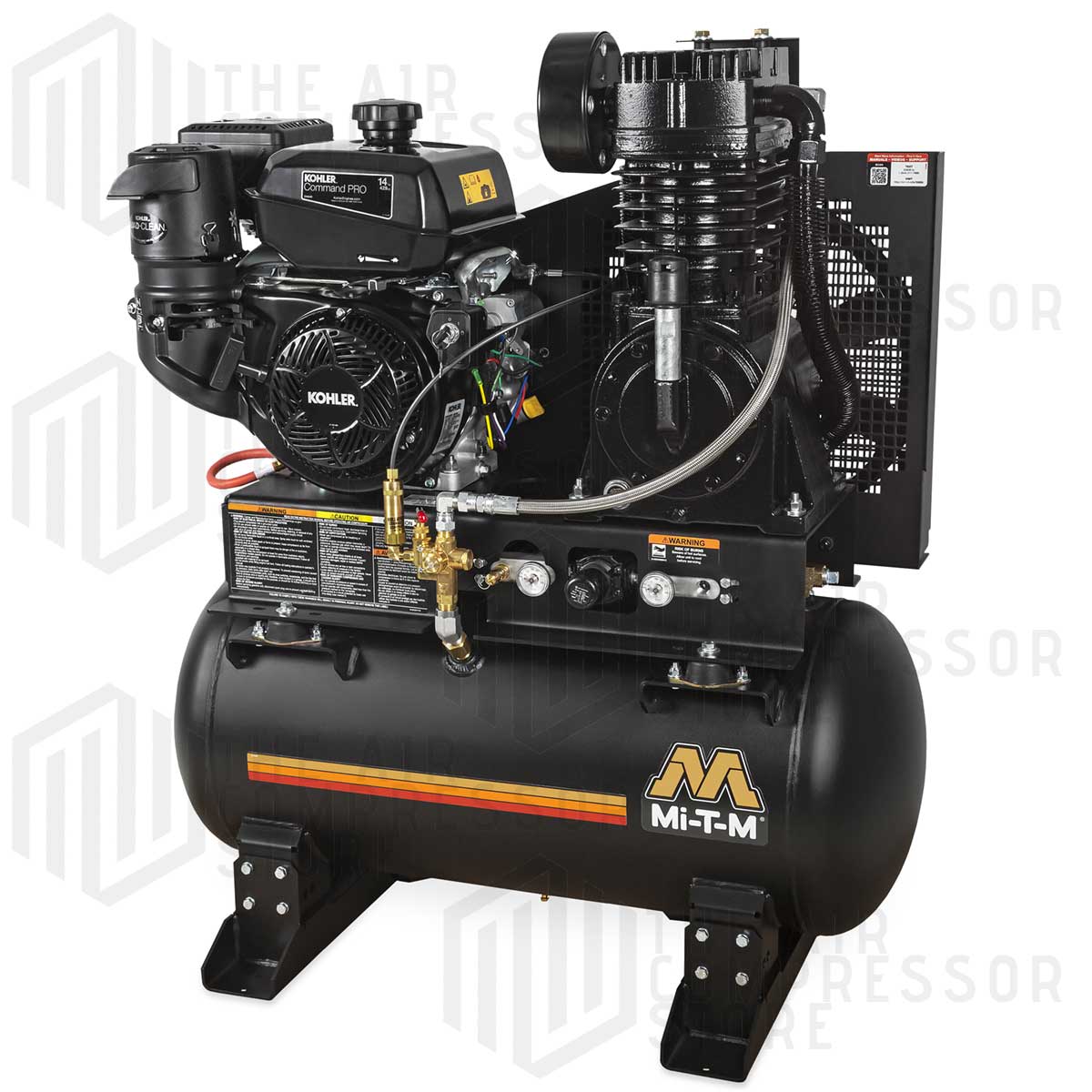

• ABS-14K-30H: Driven by a Kohler CH440 (429cc) engine for specialized industrial performance.

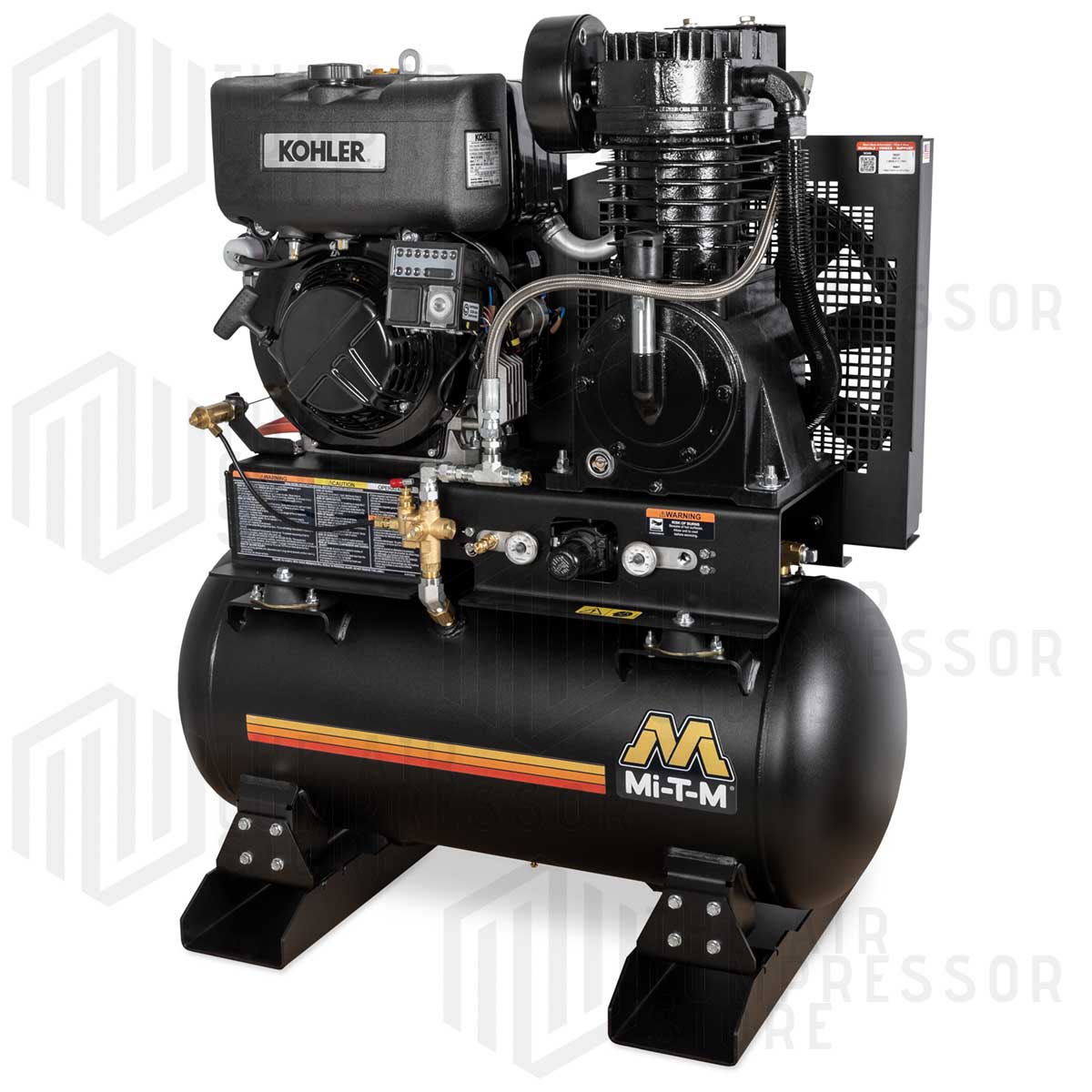

• ABS-9KD-30H: A specialized Diesel-powered unit (Kohler engine), offering extreme durability and fuel commonality for heavy equipment sites.

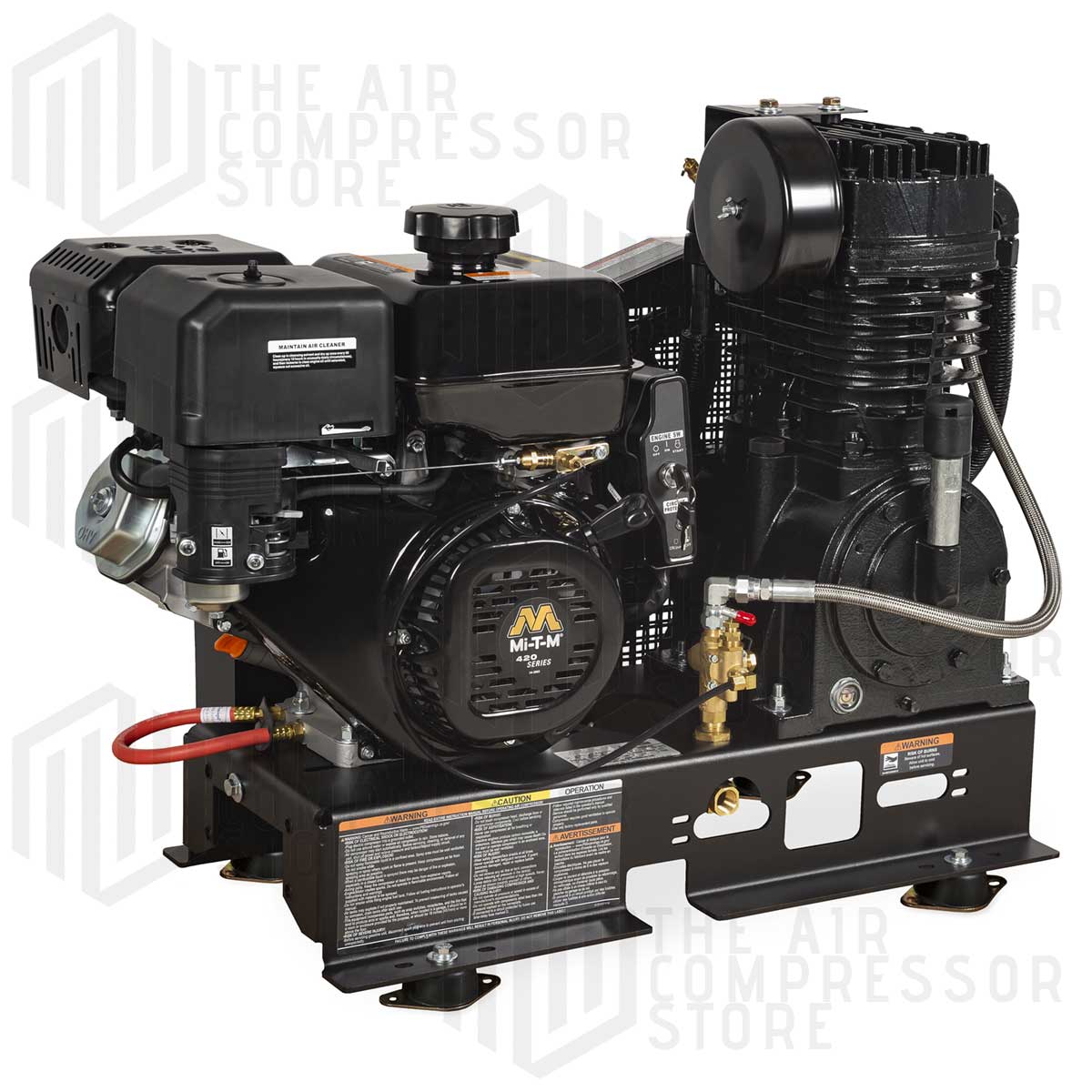

Base-Mount (B) Series

Designed for space-saving installation on service trucks where a separate tank is already present or where the unit is integrated into a larger air system.

• Models: ABS-13H-B (Honda) and ABS-14M-B (Mi-T-M).

Core Engineering Advantages

• Two-Stage Cast-Iron Pumps: Both the cylinders and the crankcases are made of durable cast iron. The two-stage design includes finned intercoolers that dissipate heat rapidly, ensuring cooler, drier air.
• Engine Idle Control: Pneumatic throttle control automatically idles the engine down when the tank reaches maximum pressure, saving fuel and reducing noise.
• Total Protection: Equipped with a fully enclosed belt guard to protect components and operators, along with a 3/16-inch thick base plate to minimize vibration.
• Industrial Components: Includes stainless-steel braided discharge hoses, large-diameter intake filters, and a Schmidt pilot valve for precision pressure management.

Quick Selection Guide

Technical Note: For users in cold climates or those requiring frequent starts, the “E” (Electric Start) models are highly recommended. These units significantly reduce operator fatigue and ensure quick starts in all weather conditions. (Note: 12V battery and cables are sold separately).
