Saylor-Beall Base Mounted Compressors 1.5 – 30 HP

Saylor-Beall Base Mounted Compressors 1.5 – 30 HP

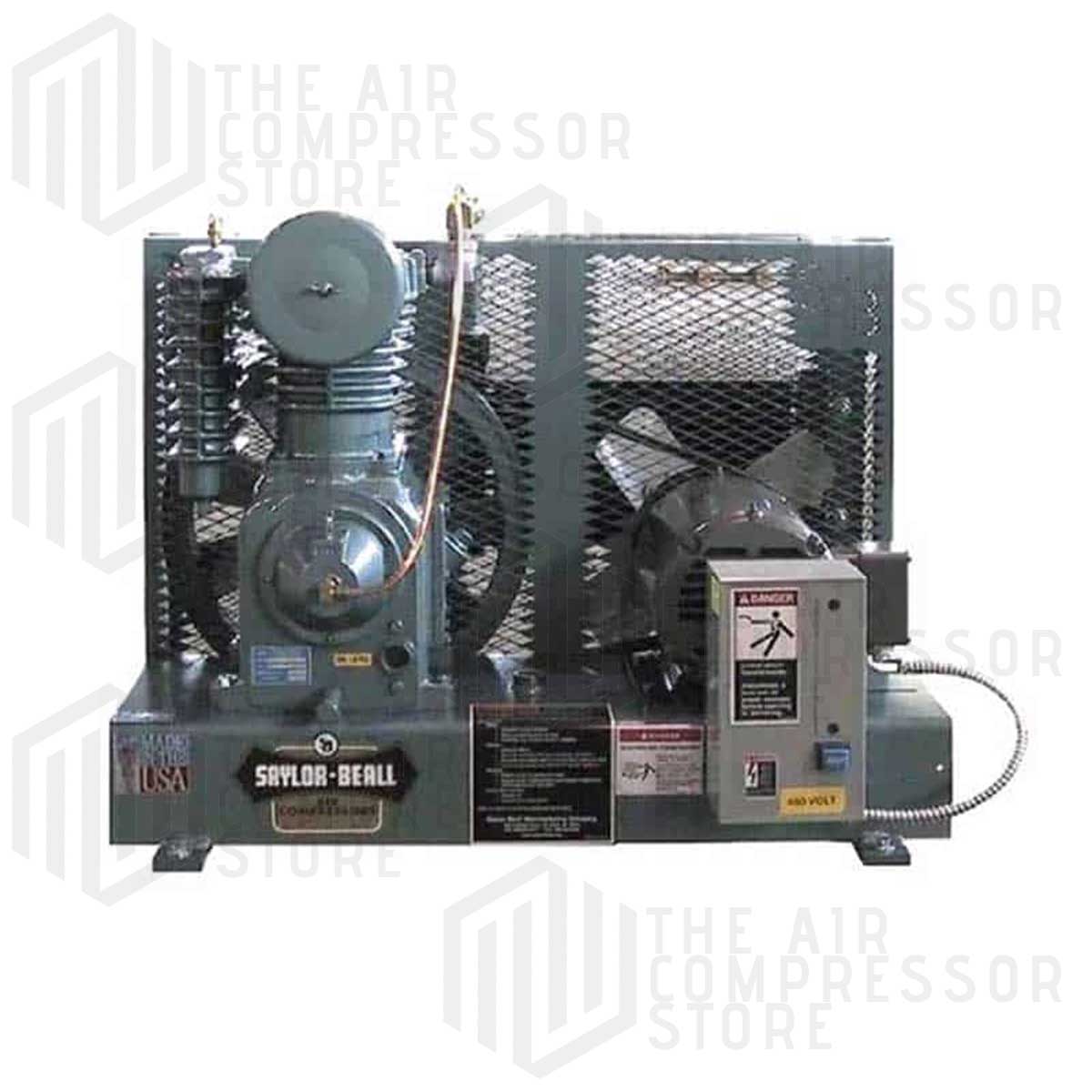

The Saylor-Beall Base Mounted Series is designed for industrial applications where a separate air storage tank is already in place or where space constraints require a more modular setup. These units feature the same heavy-duty, cast iron pumps found on their tank-mounted counterparts but are mounted on a rugged steel base for maximum versatility.

Core Pump Features (1.5 – 30 HP)

Across the entire horsepower range, these splash-lubricated units are engineered for long-term durability and ease of maintenance:

• 100% Cast Iron Construction: Every pump—from the 1.5 HP to the massive 30 HP—features a cast iron crankcase, cylinders, and heads to handle high heat and heavy use.
• Splash Lubrication: A simple, reliable system using oil dippers on the connecting rods to distribute oil, making it ideal for standard industrial duty cycles.
• Low-Speed Operation: Saylor-Beall pumps run at significantly lower RPMs than competitors, which reduces friction, lowers operating temperatures, and extends the life of the machine.
• Tapered Roller Bearings: Used on both ends of the crankshaft to provide superior support and smooth operation.

Performance Breakdown by HP Range

Package Options

Even in a base-mounted configuration, you can choose the level of protection and automation your facility requires:

• Standard Package: Includes the base-mounted pump, motor, and a heavy-duty belt guard. It is equipped with a centrifugal unloader for no-load starting, protecting your motor from high-torque startups.
• Performance Package (FP): Upgrades the unit into a high-efficiency station. This includes an air-cooled aftercooler to drop discharge temperatures and a low oil level switch to protect the pump from catastrophic failure if the oil level drops too low.

Why Choose Base Mounted?

A base-mounted unit is the perfect choice for replacement applications where your existing ASME tank is still in good condition, or for remote installations where the compressor is housed in a separate enclosure from the air receiver. It provides the same 100-year legacy of American engineering without the footprint of a full tank-mounted system.
