Schulz SRP-4000 FLEX Series Rotary Screw Air Compressors (10-250 HP)

Price range: $11,280.00 through $130,560.00

Compressor Horsepower

voltage

Clear

SKU: N/A Categories: Compressors, Rotary Screw

Schulz SRP-4000 FLEX Series Rotary Screw Air Compressors (10-250 HP)

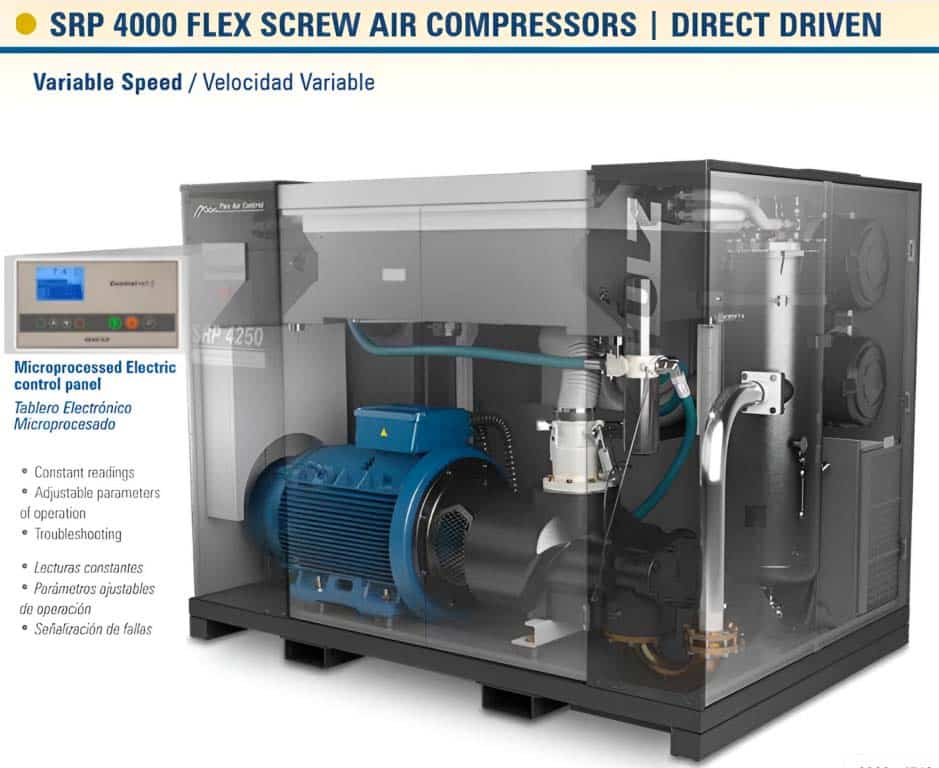

The Flex Line, available from 10 to 250 hp, offer a high energy efficiency solution in the generation of compressed air. Flex Line compressors minimize energy consumption up to 38%, reduce pressure variations in the air network while air production is adjusted according to system demand. Models 25 hp and larger are also direct driven for maximum efficiency. Flex Line incorporates the most modern technology available in compressors by operating variable speed controlled by a frequency inverter. A microprocessor controller works with the frequency inverter to monitor compressor operation, signals failures, sequence with other compressors in the compressor room and provides remote or local starting. Designed to operate 24 hours continuous in areas with ambient temperature up to 113 Â°F, they are equipped with high efficiency, two stage intake filters which provide high quality air to the air end. Flex Line compressors are all enclosed and operate at low noise levels. Choose the SRP 4000 Flex Line Rotary Screw Air Compressor which best meets your needs.

			Dimensions						Power				Connection	Tank	Noise
MODEL	CODE	Weight	L	W	H	PSI	hp	kW	phase	voltage	CFM	l/min	in	gal	dB(A)
SRP 4010 Flex	970.4020-0	932.5	59.9	75.5	29.2	125	10	7.5	3	208-230	9-35	255 – 991	3/4	120	69
SRP 4010 Flex	970.4021-0	932.5	59.9	75.5	29.2	125	10	7.5	3	460	9-35	255 – 991	3/4	120	69
SRP 4015 Flex	970.4022-0	959	59.9	75.5	29.2	125	15	11	3	208-230	51	368 – 1,444	3/4	120	69
SRP 4015 Flex	970.4023-0	959	59.9	75.5	29.2	125	15	11	3	460	51	368 – 1,444	3/4	120	69
SRP 4020 Flex	970.4049-0	1,382	74.8	74.8	31.9	125	20	15	3	208-230	74	708 – 2,092	1	120	69
SRP 4020 Flex	970.4050-0	1,382	74.8	74.8	31.9	125	20	15	3	460	74	708 – 2,092	1	120	69
SRP 4025E Flex	970.3905-0/V1	1,398	74.8	74.8	31.9	125	25	18,5	3	208-230	92	708 – 2,605	1	120	69
SRP 4025E Flex	970.3906-0/V1	1,398	74.8	74.8	31.9	125	25	18,5	3	460	92	708 – 2,605	1	120	69
SRP 4030E Flex	970.4051-0	1,411	74.8	74.8	31.9	125	30	22	3	208-230	113	708 – 3,200	1	120	70
SRP 4030E Flex	970.4052-0	1,411	74.8	74.8	31.9	125	30	22	3	460	113	708 – 3,200	1	120	70
SRP 4040E Flex	970.4053-0	1,612	74.8	74.8	31.9	125	40	30	3	208-230	150	992 – 4,248	1	120	70
SRP 4040E Flex	970.4054-0	1,612	74.8	74.8	31.9	125	40	30	3	460	150	992 – 4,248	1	120	70
SRP 4050E Flex	970.3908-0	1,741	68.9	65.4	39	125	50	37	3	208-230	207	1,900 – 5,871	1.1/2	–	71
SRP 4050E Flex	970.3909-0	1,741	68.9	65.4	39	125	50	37	3	460	207	1,900 – 5,871	1.1/2	–	71
SRP 4075E Flex	970.3797-0/V1	2,822	78.7	77.2	43.3	125	75	56	3	460	305	2,547 – 8,634	1.1/2	–	78
SRP 4100E Flex	970.3798-0/V1	3,042	78.7	77.2	43.3	125	100	75	3	460	385	2,547 – 10,899	1.1/2	–	79
SRP 4125E Flex	970.3910-0	4,409	94.5	76.8	59.1	125	125	90	3	460	500	3,765 – 14,155	2	–	79
SRP 4150E Flex	970.3972-0	7,452	106.3	80.3	70.9	125	150	110	3	460	670	3,794 – 18,972	4	–	81
SRP 4200E Flex	970.3973-0	7,452	106.3	80.3	70.9	125	200	150	3	460	855	7,427 – 24,215	4	–	81
SRP 4250E Flex	970.3974-0	7,892	106.3	80.3	70.9	125	250	186	3	460	1141	8,068 – 32,301	4	–	83

Weight	1612 lbs
Dimensions	N/A
Brand	Schulz
Compressor CFM Range	25 – 44.9, 45 – 79.9, 80 – 209.9, 210 – 499.9
Model	SRP 4010 Flex, SRP 4050E Flex, SRP 4075E Flex, SRP 4100E Flex, SRP 4125E Flex, SRP 4150E Flex, SRP-4015 FLEX, SRP 4200E Flex, SRP-4020 FLEX, SRP 4250E Flex, SRP-4025 FLEX, SRP-4030 FLEX, SRP-4040 FLEX
Tank Size	120
Compressor Horsepower	10, 15, 20, 25, 30, 40, 50, 75, 100, 125, 150, 200, 250
voltage	208-230/3, 460/3/60
Tank Size Range	90-200 Gallon
Compressor CFM	35, 51, 74, 92, 113, 150, 207, 305, 385, 500, 670, 855, 1141
Compressor PSI	125
