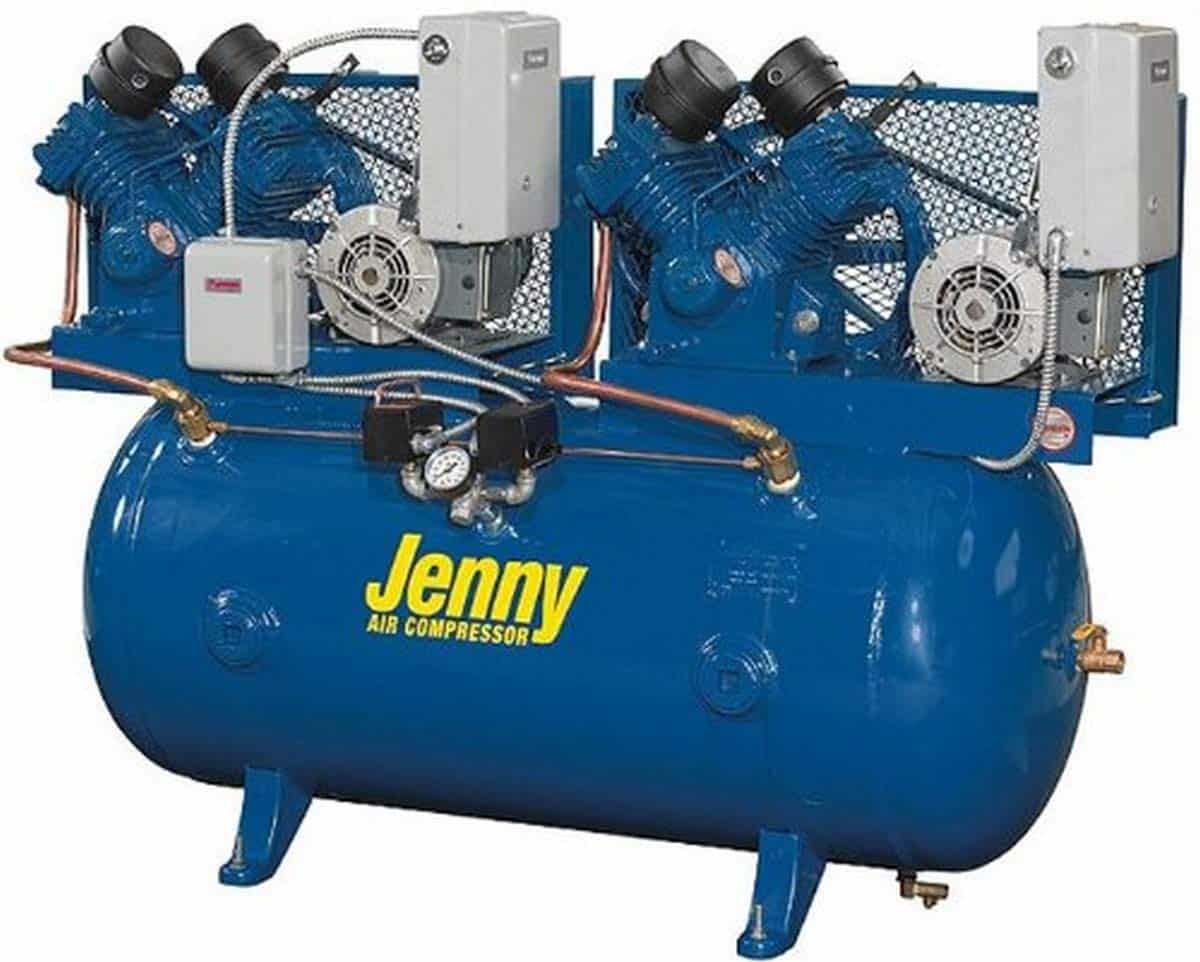

Jenny 2(T25B)-240 50HP 240GAL Compressor

Name: Jenny 2(T25B)-240 50HP 240GAL Compressor - The Air Compressor Store
SKU: 2(T25B)-240
Price: 26066.00 USD
Availability: InStock

Original price was: $32,583.00.Current price is: $26,066.00.

SKU: 2(T25B)-240 Categories: Compressors, Reciprocating

Jenny 2(T25B)-240 50HP 240GAL Compressor

Standard Features

Heavy-duty cast iron compressor pump Made in Somerset, PA USA
Splash lubricated
Belt driven with a large flywheel for extra cooling and easier start-up
Each unit is filled with Jenny Synthetic Blue Compressor Pump Oil
Directional air shroud for reduced pump temperatures
Totally enclosed heavy-duty beltguard
Tanks are powder coated and ASME certified
60 gallon tanks and larger are ASME National Board certified
Protectively mounted fittings
Manual tank drain(s)
Large canister intake filter with replaceable filter elements
Special unloading valves to assist in motor starting
Tank gauge
Pressure relief safety valve
Auto Start/Stop control with pressure unloader set at 75-100 PSI
Magnetic starter is included on all 5HP and larger units
Industrial/Commercial grade UL Listed electric motor
Thermal overload motor protection
Alternator and magnetic starter standard on all duplex models

Simplex Single Stage
Model	Pump	HP	Tank Gallon	Power Supply	Pump RPM	CFM Disp	Del’d Air
F12C-30C	F	1/2	30	See Two Stage	590	2.9	1.7
KC34C-30C	KC	3/4			420	4.8	2.7
K1C-30C	K	1			520	5.9	3.7

Simplex Two Stage
Model	Pump	HP	Tank Gallon	Power Supply	Pump RPM	CFM Disp	Del’d Air
GT2C-60C	GT	2	60	115 Volt (through 2 HP) 230 Volt1 Phase	540	11	9.1
W3C-80C	W	3	80		480	13.5	11.6
W5C-80C	W	5			760	21.5	17.7
U75C-80C	U	7-1/2			610	38	28.5
U10C-80C	U	10			710	43.6	35.2
T15C-120C	T	15	120	208, 230, 460, or 575 Volt 3 Phase Only	520	72.4	57.5
T20C-120C		20			670	92.6	73.5
T25C-120C		25			780	107	85

Duplex Single Stage
Model	Pump	HP	Tank Gallon	Power Supply	Pump RPM	CFM Disp	Del’d Air
2(F12C)-30C	F	1	30	See Two Stage	590	5.8	3.4
2(KC34C)-60C	KC	1-1/2	60		420	9.6	5.4
2(K1C)-60C	K	2	60		520	11.8	7.4

Duplex Two Stage
Model	Pump	HP	Tank Gallon	Power Supply	Pump RPM	CFM Disp	Del’d Air
2(GT2C)-60C	GT	4	60	115 Volt (through 2 HP) 230 Volt 1 Phase 208, 230, 460 or 575 Volt 3 Phase	540	22	18.2
2(W3C)-80C	W	6	80		480	27	23.2
2(W5C)-80C	W	10	80		760	43	35.4
2(U75C)-120C	U	15	120		610	76	57
2(U10C)-120C	U	20	120		710	87.2	70.4
2(GT15C)-60C	GT	30	240		410	16.8	13.8
2(T15C)-240C	T	30			520	144.8	115
2(T20C)-240C		40		10 hp and Larger 3 Phase Only	670	185.2	147
2(T25C)-240C		50		10 hp and Larger 3 Phase Only	780	214	170

Single Stage
*MODEL	HP RANGE Electric	NO CYC.	BORE	STROKE	MAX. PSI	APPX SHIP WT.	A	B	C	D	E	F Diam Groove	G	H	I	P NPT
F & FU	1/3 – 1	1	2 1/2	1 3/4	150	36	7 3/4	5 9/16	3 3/8	10 3/8	10 1/4	10 3/8-1A	3/8	9/32	7/8	N/A
K & KU	1 – 2	2	2 1/2	2	150	50	10	5 7/8	5 3/4	11 1/8	12 3/16	10 3/8-1A	3/8	11/32	7/8	1/2
G & GU	3-5	4	2 1/2	2 3/8	150	85	11 1/2	7 1/8	6 1/8	15 1/4	14 1/2	10 3/8-2A	1/2	11/32	7/8	1/2
J & JU	3-5	4	2 1/2	3 1/4	150	175	16 5/16	9 1/8	6 3/4	20	16 1/2	16-2A	1/2	11/32	1 1/8	1/2

Two Stage
GT & GTU	1 1/2-5	4	21/2 (3)-21/2	2 3/8	200	110	14 3/8	7 1/8	6 1/8	15 1/2	14 1/2	13 1/2-2A	1/2	11/32	7/8	1/2
W & WU	3-5	4	21/2 (3)-21/2	3 1/4	200	175	16 5/16	9 1/8	6 3/4	20	16 1/2	16-2A	1/2	11/32	1 1/8	1/2
U	7 1/2 10	4	4 3/4 X 2 1/2	3	200	340	21 1/16	10 5/8	6 1/4	23	20 3/8	18-3B	1	17/32	1 3/8	1
T	15-25	4	5 1/2 X 3	5	200	750	31	16	10	42	34	25 1/2-4B	1	25/32	2 3/16	1 1/2
NOTE – Units of measure-weight-pounds; dimensions-inches; pressure-pounds per square inch. When replacing pumps, consult factory regarding applicable conversion kit that may be required.

Weight	3000 lbs
Dimensions	48 × 76 × 123 in
Model	2(T25B)-240
Compressor Horsepower	50
Compressor Horsepower Range	50 HP
Tank Size	240
Tank Size Range	200 Gallon
voltage	200/3/60, 230/1/60, 230/3/60, 460/3/60, 575/3/60
Compressor CFM	214
Compressor CFM Range	210 – 499.9
Compressor PSI	145-175
Brand	Jenny Compressors
