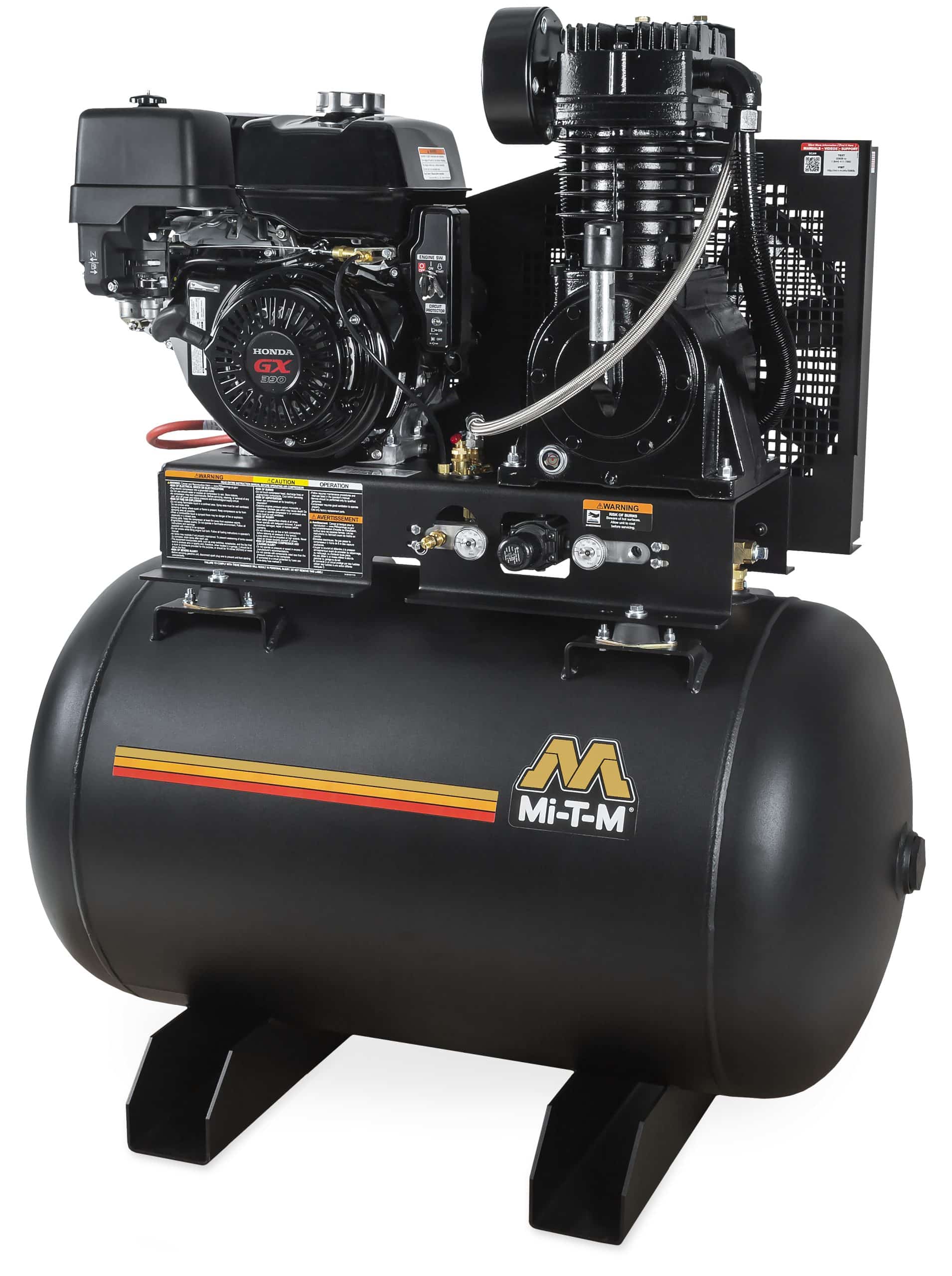

Mi-T-M 13HP 80GAL STATIONARY GAS DRIVE ABS-13H-80H

Name: Mi-T-M 13HP 80GAL STATIONARY GAS DRIVE ABS-13H-80H
Brand: Mi-T-M Corporation
SKU: ABS-13H-80H
Price: 6100.00 USD
Availability: InStock

SKU: ABS-13H-80H Categories: Compressors, Gasoline, Portable, Reciprocating

ABS-13H-80H

Ideal for commercial construction, industrial and automotive industries, the 80-gallon air compressor is designed to provide high capacity air flow.
Compressor Pump: Cast iron compressor · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Engine: Electric start – battery and cables not included
Frame: Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · Removable base plate offers flexible installation
Components: Regulator and two gauges for tank and outlet pressure · ASME safety valves · 16 1/2-inch fly wheel · Tank drain valve
Equipped with 150-PSI maximum rated regulator.
49 state engine. Not for sale in California.

Specifications

CFM @ PSI
– 29.0 @ 175
Displacement/ Engine
– 389cc Honda GX390 OHV
Tank Size
– 80-gallon
Engine Idle Control
– Pneumatic

Weights & Dimensions

Net Weight
– 496.00 lbs.
Shipping Weight
– 560.00 lbs.
Length
– 52.00 in.
Width
– 26.50 in.
Height
– 53.00 in.

Weight	560 lbs
compressor-cfm-range	25 – 44.9
compressor-psi	175
voltage	389cc Honda GX390 OHV+
compressor-horsepower	13
compressor-hp-range	10 – 20 HP
tank-size-compressor	80
tank-size-range	60-80 Gallon
Brand	Mi-T-M Corporation
Model	ABS-13H-80H
compressor-cfm	29
