Mi-T-M AG Series Portable Air Compressor / Generator Combination Units
Mi-T-M AG Series Portable Air Compressor / Generator Combination Units are the ultimate jobsite multi-taskers. Engineered for commercial contractors, mobile service mechanics, and agricultural repair crews, these dual-purpose machines pack a high-performance air compressor and a heavy-duty electrical generator onto a single, portable wheelbarrow frame.
By consolidating two essential pieces of equipment into one footprint, these units save valuable space in your service truck bed or trailer while delivering the relentless pneumatic power and clean electrical energy required to run tools, lights, and welding equipment simultaneously in the field.
The Lineup by Horsepower Class
The AG Series is divided into compact, single-stage units and high-output, two-stage workhorses driven by premium commercial-grade engines.
- Single-Stage, 8-Gallon Portable Units
Perfect for mobile framing crews, finish carpenters, and roadside tire service requiring a highly portable footprint.
- AG1-PH65-08M1: Powered by a Honda GX200 engine. Delivers 11.7 CFM @ 100 PSI paired with a 1800-watt regular (2200-watt maximum) generator output.
- AG1-PM07-08M1: Powered by a Mi-T-M 212cc OHV engine. Delivers 11.7 CFM @ 100 PSI paired with a 1800-watt regular (2200-watt maximum) generator output.
- Two-Stage, 8-Gallon Heavy Industrial Units
Engineered for heavy-duty applications like operating 1-inch impact wrenches, running multiple framing guns, or powering field welding setups. These units deliver a maximum pressure of 175 PSI and bump the electrical capacity up to a massive 3500-watt regular (4000-watt maximum) generator output. Models ending in “E” feature hassle-free Electric Start (recoil backup included).
- Honda GX390 Power Class:
- AG2-PH13-08M1: Manual Recoil Start
- AG2-PH13-08M1E: Electric Start
- Kohler CH440 Power Class:

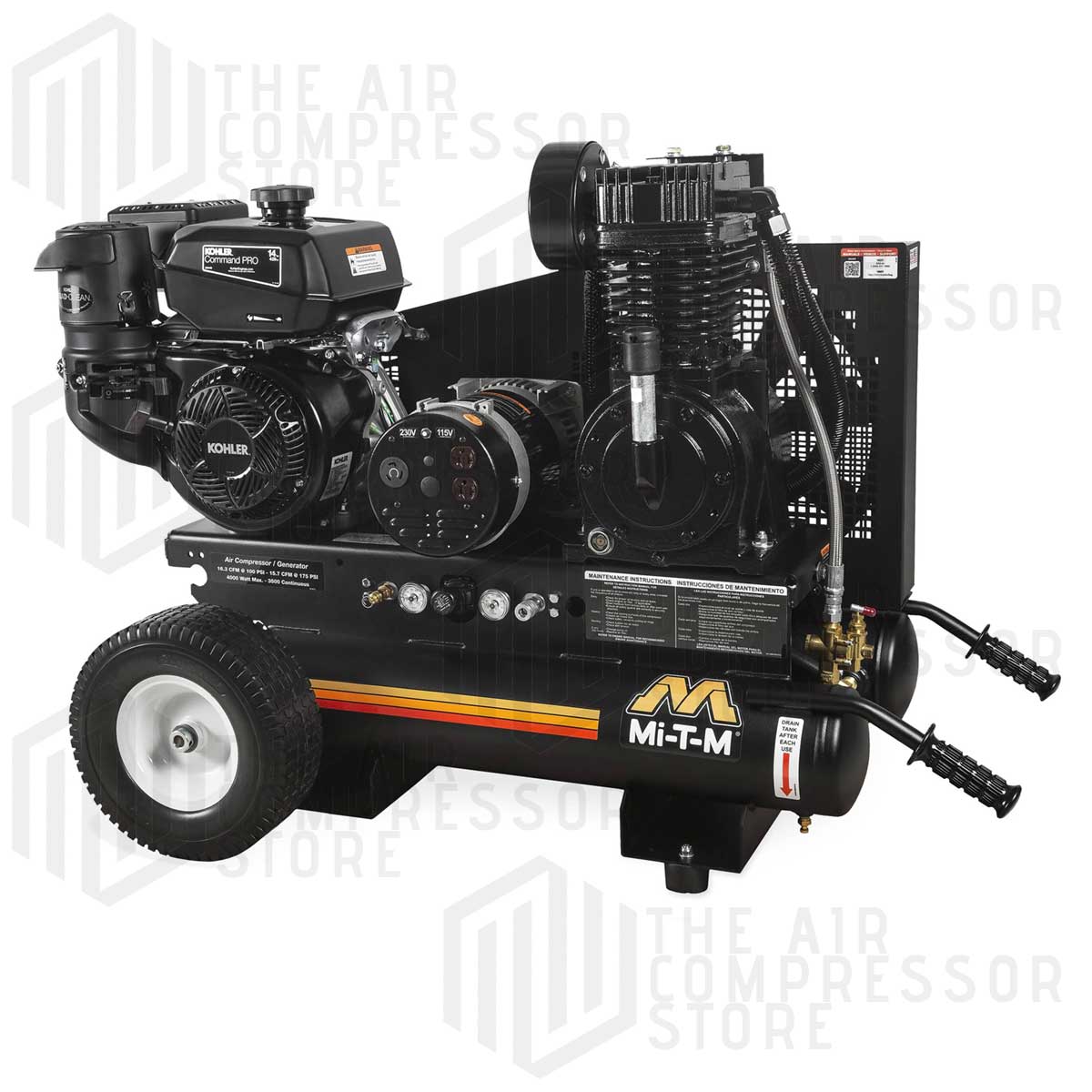

- AG2-PK14-08M1: Manual Recoil Start
- AG2-PK14-08M1E: Electric Start
- Mi-T-M 420cc Power Class:
- AG2-PM14-08M1: Manual Recoil Start
- AG2-PM14-08M1E: Electric Start
- Vanguard 400 Power Class:

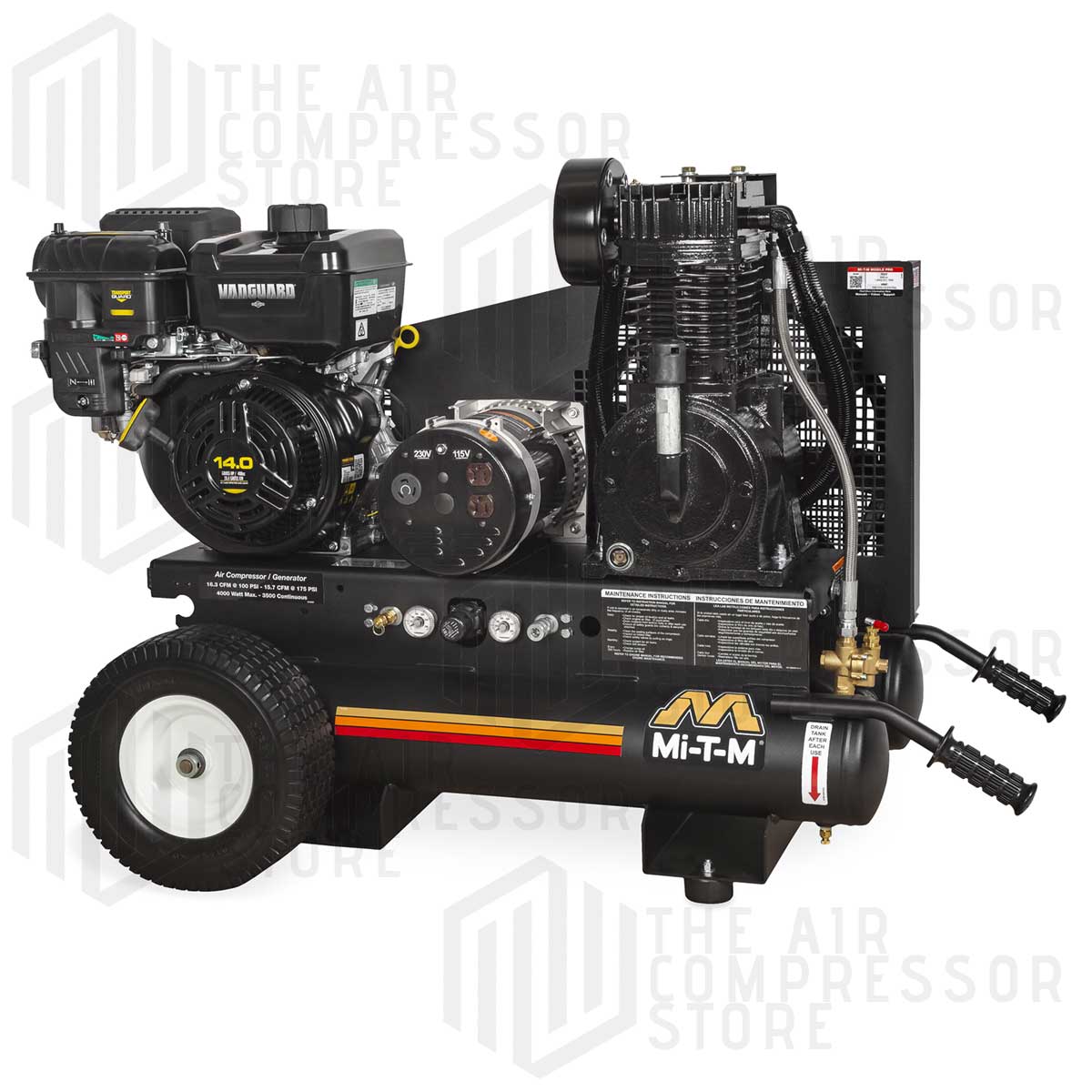

- AG2-PV14-08M1: Manual Recoil Start
Core Engineering & Jobsite Performance Features
Industrial Pumps & Drive Systems
- 100% Cast-Iron Construction: Built with durable cast-iron cylinders and heads for superior heat dissipation. Single-stage models feature a single-cylinder pump, while two-stage models utilize a heavy-duty two-cylinder pump to reach 175 PSI.
- Splash Lubrication: A reliable, low-maintenance oil bath system complete with a convenient oil level sight glass.
Heavy-Duty Generator Technology
- Brushless Alternator: Features a commercial-grade, maintenance-free alternator design with less than 6% total harmonic distortion (THD), providing smooth, clean power for sensitive electronics.
- Copper Windings: Utilizes 100% copper windings for maximum conductivity, cooler operating efficiency, and long-term durability.
Rugged Portable Design
- 8-Gallon Twin-Tank Frame: Built into a heavy-duty wheelbarrow layout using dual 4-gallon ASME-coded structural steel tanks, finished with a corrosion-resistant powder coating.
- Jobsite Mobility: Outfitted with a flat-free, semi-pneumatic tire and integrated lift handles for smooth maneuvering across rough construction sites, gravel, and mud.
- Automatic Idle Control: An engine governor idles the engine down automatically when pneumatic and electrical loads drop, drastically saving fuel and extending engine longevity.
Technical Specification Quick Reference
| Specification / Metric | Single-Stage Series (AG1) | Two-Stage Series (AG2) |
| Pneumatic Pressure | 100 PSI (125 PSI Max) | 145 to 175 PSI (175 PSI Max) |
| Airflow Output | 11.7 CFM @ 100 PSI | 15.7 CFM @ 175 PSI |
| Generator Output (Continuous) | 1,800 Watts | 3,500 Watts |
| Generator Output (Maximum) | 2,200 Watts | 4,000 Watts |
| Receptacle Configuration | Dual 120V 20A GFCI Duplex | Two 120V 20A GFCI & One 240V 20A Twist-Lock |
| Weight | 207 lbs |
|---|---|
| Compressor CFM | |
| Compressor CFM Range | |
| Compressor PSI | |
| Compressor Horsepower | |
| voltage | |
| Compressor Horsepower Range | |
| Tank Size | |
| Tank Size Range | |
| Brand | |
| Model | |
| Option | Recoil Start, Electric Start |
