Atlas Copco NGM+ Nitrogen Generators

The Atlas Copco NGM+ Nitrogen Generators offer reliable on-site nitrogen generation with best-in-class performance

Membrane technology has traditionally offered high-quality, reliable on-site nitrogen generation. Atlas Copco’s new NGM+ now raises the bar with exceptionally low air and energy consumption, giving you the lowest cost of ownership on the market today. Maximizing the robustness and simplicity of membrane technology, the NGM+ is a compact, quiet and dependable presence on your production floor.

Cost savings

• Minimal energy consumption per unit of N2.
• 20% less feed air required than a traditional generator.
• Lowest total cost of ownership in its class.
• No wasteful feed air heater required.
• Best-in-class membrane technology

Absolute reliability

• Continuous supply of nitrogen with a stable purity.
• Advanced control and monitoring features optimize the uncluttered build and stable performance of membrane technology.
• Can be combined with a cylinder or bulk gas supply system.

Ease of use

• Easy purity adjustment on controller.
• Fast, straightforward start-up and commissioning.

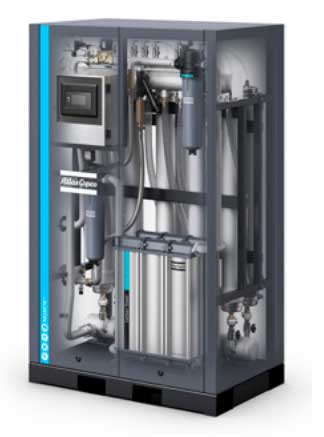

The superior membrane generator

• Complete set-up: Precision O2 sensor, feed air monitoring, and gas purity regulation valve are included as standard.
• Premium membrane:
  • Dry, high-quality N2 at the lowest air consumption.
  • Pre-aged membranes eliminate performance loss after commissioning.
  • Soft start protects membrane and extends lifetime.
• Elektronikon® Touch controller:
  • Allows for plug-and-play installation.
  • Easy purity setting, alerts and connectivity options.
  • Feed air monitoring and optional interception.
• Compact design:
  • Built-in premium filtration with low pressure drop.
  • No external tanks required for operation with stable flow.

Keep your energy costs in check:
The no-heater solution – Some membrane N2 generators use a feed air heater to boost performance. However, these heaters use a lot of energy, inflating your operational costs. The NGM+ doesn’t require a heater to reach maximum capacity. The result: a substantial reduction in your running costs.

Options: Feed air quality (PDP) monitoring & interception, Nitrogen quality (PDP) monitoring, Nitrogen digital flow meter, Oil filter service indicator, Exhaust vent kit, Room oxygen alarm (wall mount)
